PNOZS524VDC2N-O2N-OT-750105

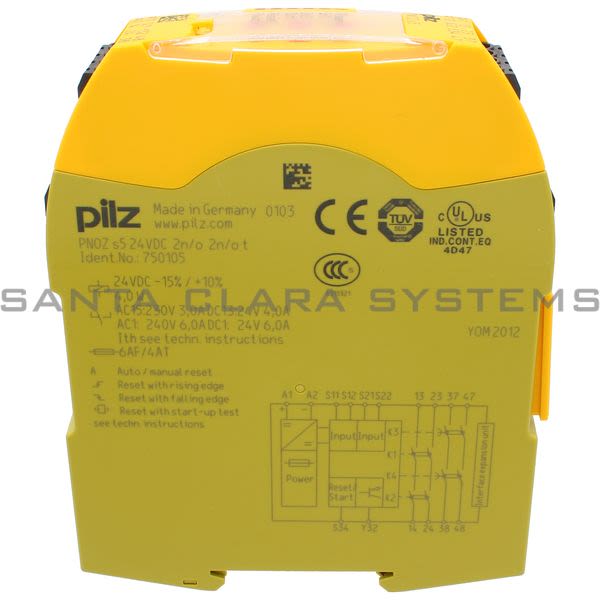

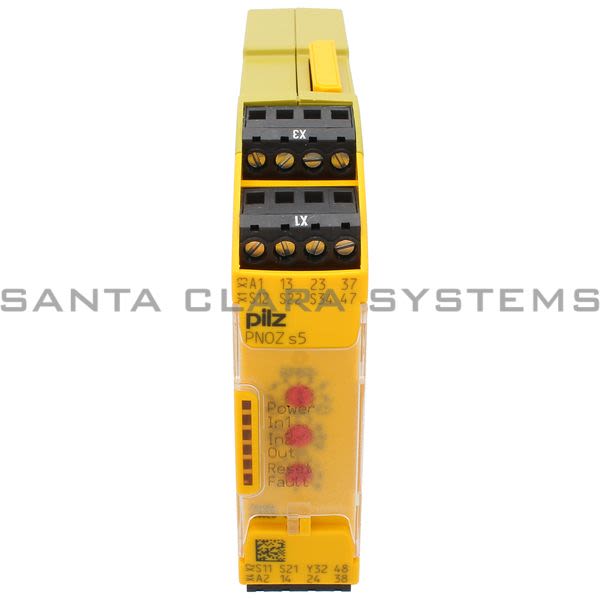

Pilz - Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 N/O, 2

Current response time:

5 Minutes 29 Seconds

Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 2 N/O, 2
Gross weight:: 245 g
Net weight:: 235 g
Ambient temperature:: -10 - 55 C
Height dimension:: 98.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 120.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal type:: Screw terminal
Terminal style:: Plug-in
Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p, Safe delay-on de-energy. timer

Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, Prog. delay-on de-energization
Approvals:: CE, cULus Listed, EAC (Eurasian), TV, KOSHA, CCC
Product standard:: EN 60947-5-1
Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Number of instantaneous safety contacts:: 2
Number of delayed safety contacts:: 2
Number of semiconductor outputs:: 1
Selectable times:: 0,04 s, 0,10 s, 0,20 s, 0,30 s, 0,40 s, 0,50 s, 0,60 s, 0,70 s, 0,80 s, 1,00 s, 1,50 s, 10,00 s, 100,00 s, 12,00 s, 120,00 s, 14,00 s, 140,00 s, 15,00 s, 150,00 s, 16,00 s, 160,00 s, 180,00 s, 2,00 s, 2,50 s, 20,00 s, 200,00 s, 210,00 s, 240,00 s, 25,00 s, 3,00 s, 3,50 s, 30,00 s, 300,00 s, 35,00 s, 4,00 s, 40,00 s, 5,00 s, 50,00 s, 6,00 s, 60,00 s, 7,00 s, 70,00 s, 8,00 s, 80,00 s, 90,00 s
Stop category:: 0/1
Max. current at DC13 I (6 cycles/min):: 4.0 A
Max. current at AC15:: 3.0 A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZS524VDC2N-O2N-OT-750105 . Santa Clara Systems carries 329 items from Pilz.

Plug-In Terminals Of Screw Type Monitoring E-Stop
Safety Gates.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 2 N/o
2 N/o (T = 0 - 300 S)
1 Semiconductor Ub 24 V Dc
Width: 22.5 Mm
