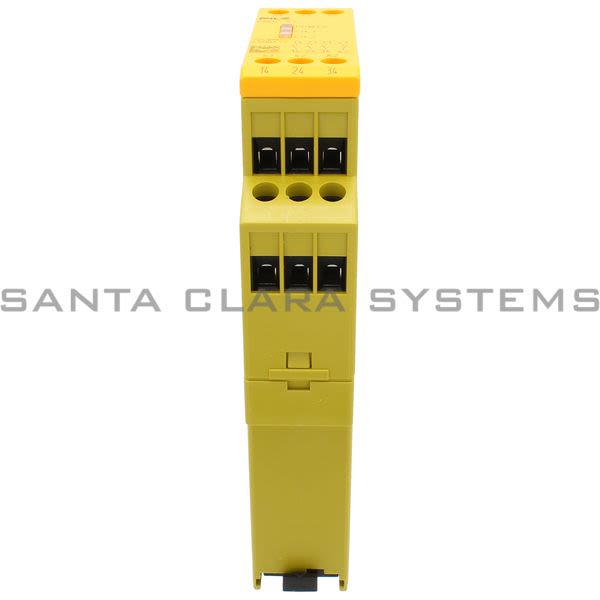

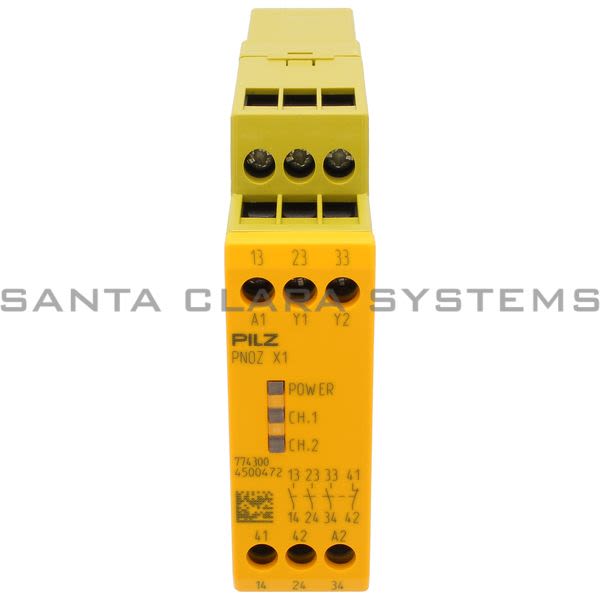

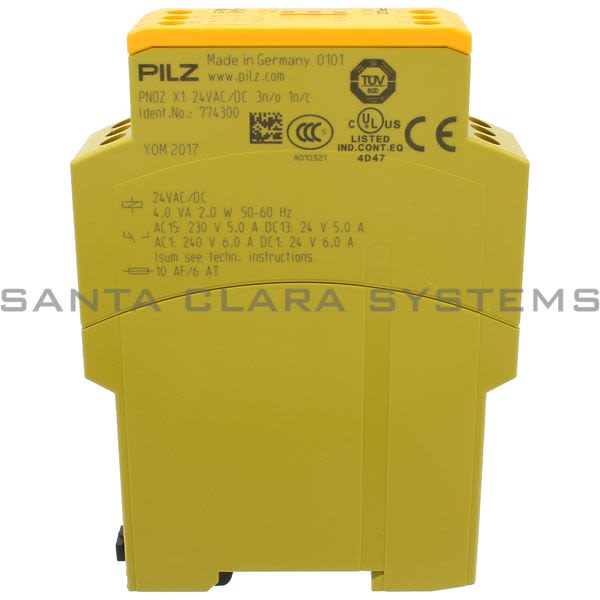

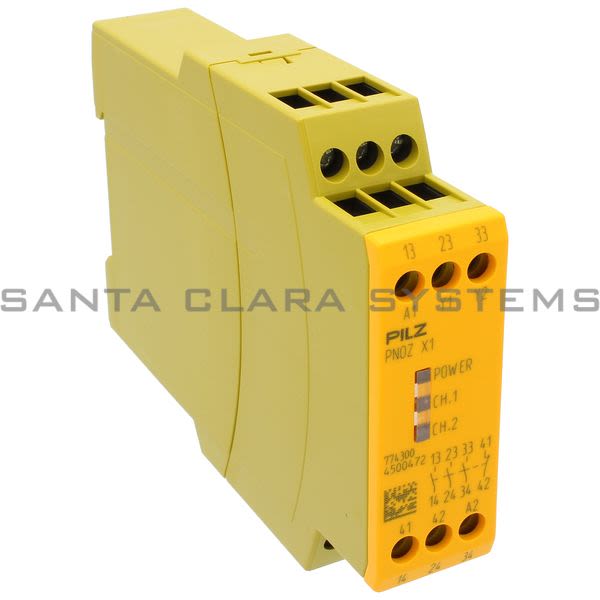

• Pilz PNOZ X1 24VAC/DC 3N/O 1N/C-774300 Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O, 1 N/C UB 24 V AC/DC, width: 22.5 mm, plug-in ter Product Image
  • Pilz PNOZ X1 24VAC/DC 3N/O 1N/C-774300 Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O, 1 N/C UB 24 V AC/DC, width: 22.5 mm, plug-in ter Product Image
  • Pilz PNOZ X1 24VAC/DC 3N/O 1N/C-774300 Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O, 1 N/C UB 24 V AC/DC, width: 22.5 mm, plug-in ter Product Image
  • Pilz PNOZ X1 24VAC/DC 3N/O 1N/C-774300 Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O, 1 N/C UB 24 V AC/DC, width: 22.5 mm, plug-in ter Product Image
  • Pilz PNOZ X1 24VAC/DC 3N/O 1N/C-774300 Barcode

PNOZX124VAC-DC3N-O1N-C-774300

Product Summary:

  • Gross weight:: 185 g
  • Net weight:: 175 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 22.5 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O, 1 N/C UB 24 V AC/DC, width: 22.5 mm, plug-in ter
  • Gross weight:: 185 g
  • Net weight:: 175 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 22.5 mm
  • Depth dimension:: 121.0 mm
  • Supply voltage (V):: 24,0
  • Supply voltage type:: AC/DC
  • Terminal type:: Screw terminal
  • Terminal style:: fixed
  • Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
  • Operating modes:: Single-channel, Automatic reset, Manual reset
  • Product standard:: EN 60947-5-1
  • Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
  • Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
  • Number of instantaneous safety contacts:: 3
  • Number of auxiliary contacts:: 1
  • Stop category:: 0
  • Max. current at DC13 I (6 cycles/min):: 5.0 A
  • Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX124VAC-DC3N-O1N-C-774300 . Santa Clara Systems carries 2,805 items from Pilz.
  • Plug-In Terminals Of Screw Type Monitoring E-Stop
  • Safety Gates.
  • Safety Relay (Standalone) Inputs: Single-Channel Wiring Outputs: 3 N/O
  • 1 N/C Ub 24 V Ac/Dc
  • Width: 22.5 Mm
  • Alternates

    • 774300
    • PNOZX1
    • PNOZ X1 24VAC/DC 3N/O 1N/C
    • PNOZ-X1-24VAC/DC-3N/O-1N/C-774300
    • PNOZX124VAC/DC3N/O1N/C774300
