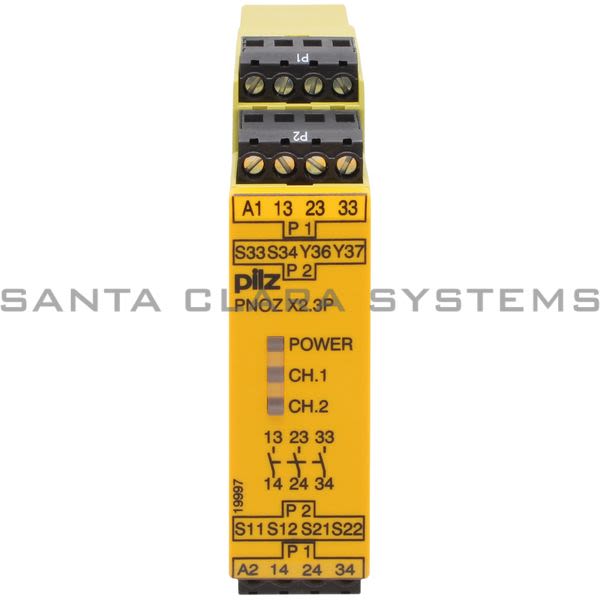

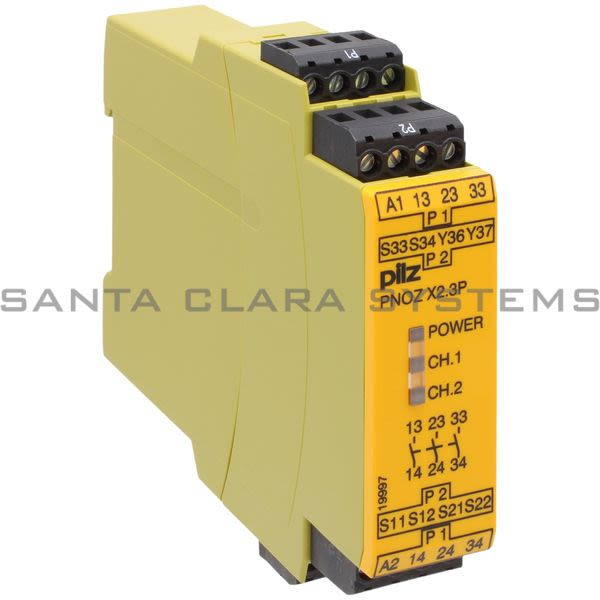

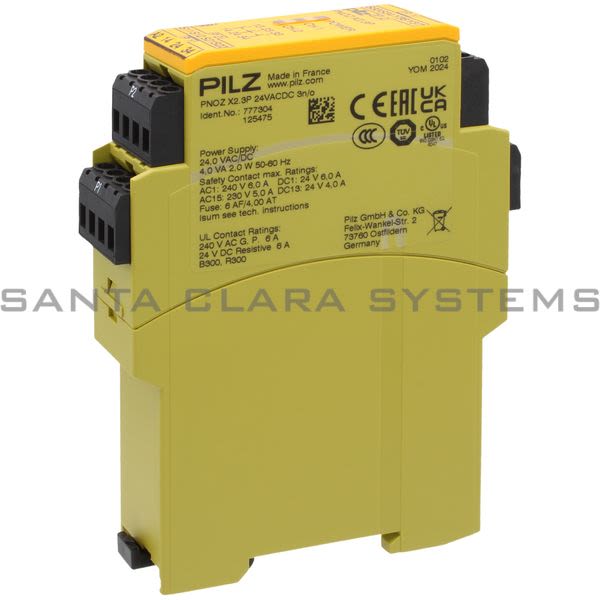

PNOZX2.3P24VACDC3N-O-777304

Pilz - Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 3 N/O. Automat

Product Summary:

Gross weight:: 215 g
Net weight:: 205 g
Ambient temperature:: -10 - 55 °C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 3 N/O. Automat
Gross weight:: 215 g
Net weight:: 205 g
Ambient temperature:: -10 - 55 °C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 121.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: AC/DC
Terminal type:: Screw terminal

Terminal style:: Plug-in
Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
Approvals:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset
Product standard:: EN 60947-5-1
Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Number of instantaneous safety contacts:: 3
Stop category:: 0
Max. current at DC13 I (6 cycles/min):: 4.0 A
Max. current at AC15:: 5.0 A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX2.3P24VACDC3N-O-777304 . Santa Clara Systems carries 347 items from Pilz.

Safety Gates.

Safety Relay (Standalone) Inputs: 1- / 2-Channel Wiring With Detection Of Shorts Across Contacts Outputs: 3 N/o. Automatic/monitored Start Ub 24 V Ac/dc
Width: 22.5 Mm
Plug-In Terminals Of Screw Type Monitoring E-Stop
