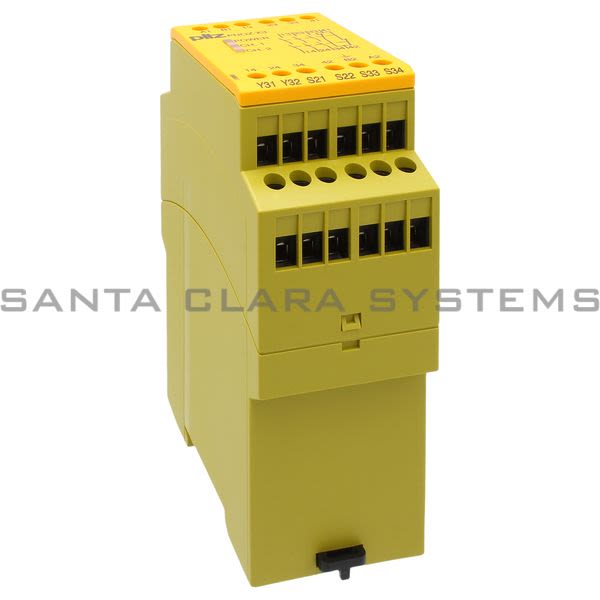

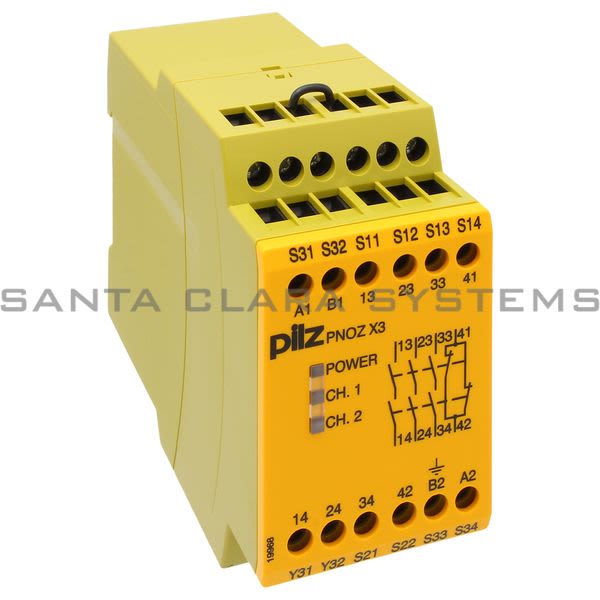

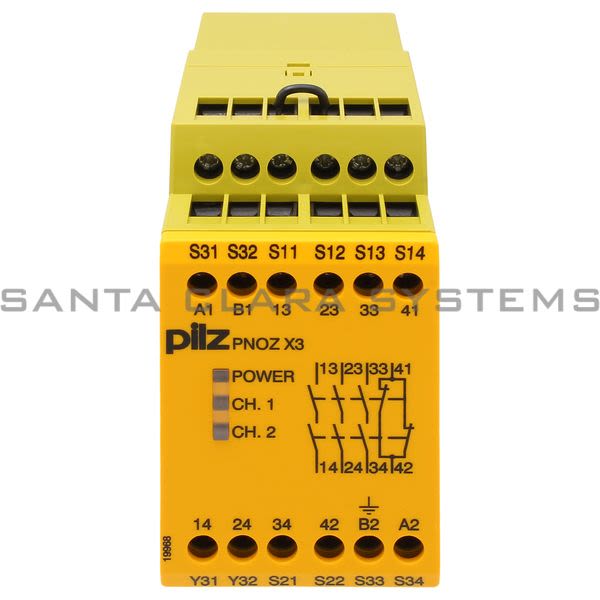

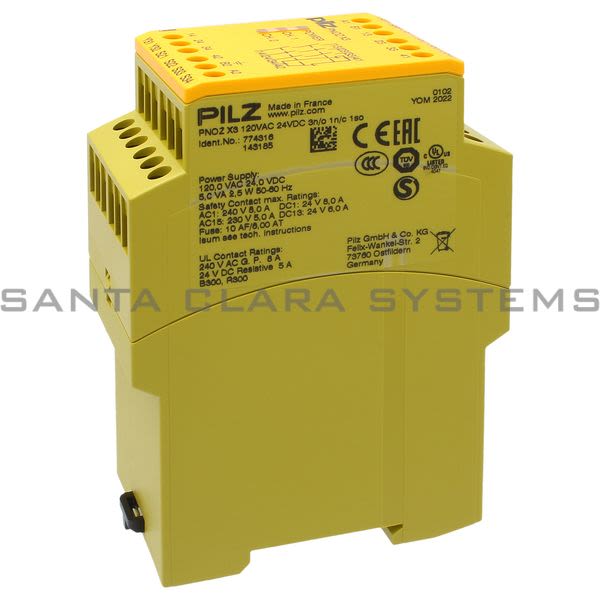

- Description: Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection of shorts across contacts Outputs: 3 N/O, 1 N/C,
- Gross weight:: 385 g
- Net weight:: 375 g
- Ambient temperature:: -20 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 45.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 120,0
- Supply voltage type:: AC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, KOSHA, CCC
- Operating modes:: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Supply voltage type 2:: DC
- Supply voltage 2 (V):: 24
- Number of instantaneous safety contacts:: 3
- Number of auxiliary contacts:: 1
- Number of semiconductor outputs:: 1
- Stop category:: 0
- Max. current at DC13 I (6 cycles/min):: 6.0 A
- Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX3120VAC24VDC3N-O1N-C1SO-774316 . Santa Clara Systems carries 329 items from Pilz.
- Plug-In Terminals Of Screw Type Monitoring E-Stop
- Safety Gates.
- Safety Relay (Standalone) Inputs: 1- / 2-Channel Wiring With Detection Of Shorts Across Contacts Outputs: 3 N/o
- 1 N/c
- 1 Semiconductor. Automatic/monitored Start Ub 120 V Ac/24 V Dc
- Width: 45 Mm
