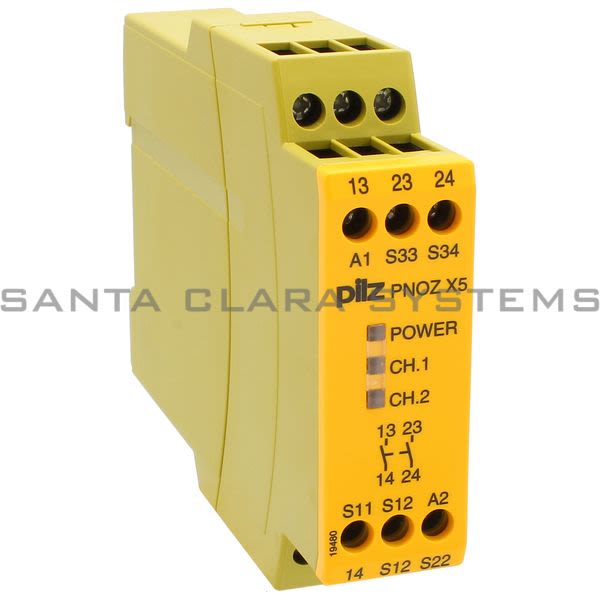

• Pilz PNOZ X5 24VACDC 2N/O-774325 Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automa Product Image

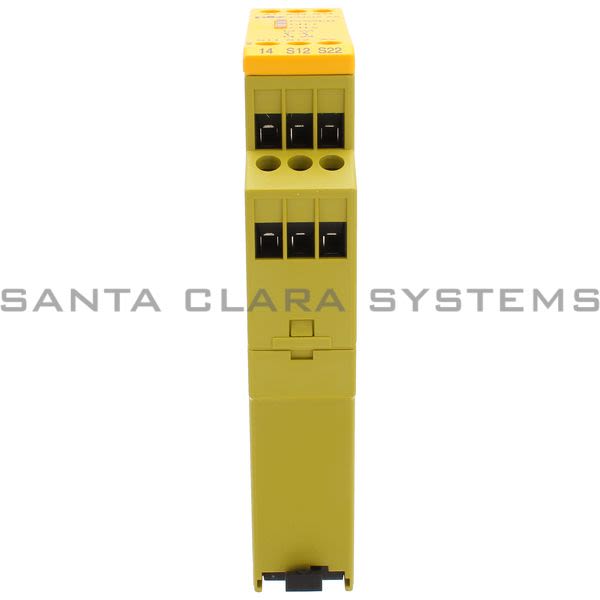

  • Pilz PNOZ X5 24VACDC 2N/O-774325 Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automa Product Image

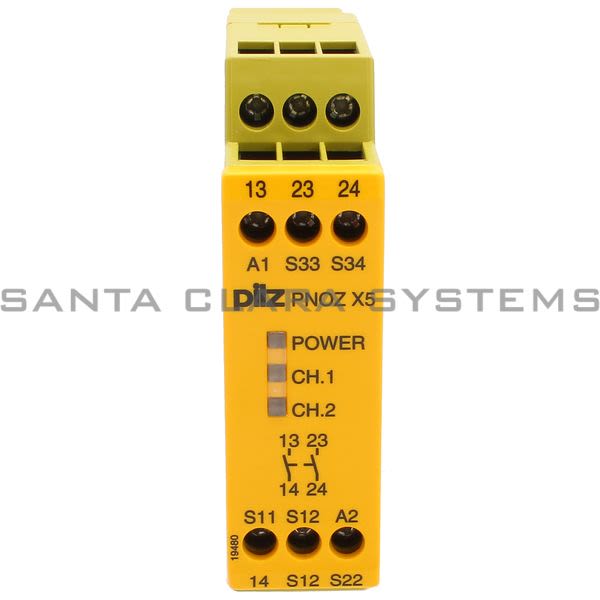

  • Pilz PNOZ X5 24VACDC 2N/O-774325 Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automa Product Image

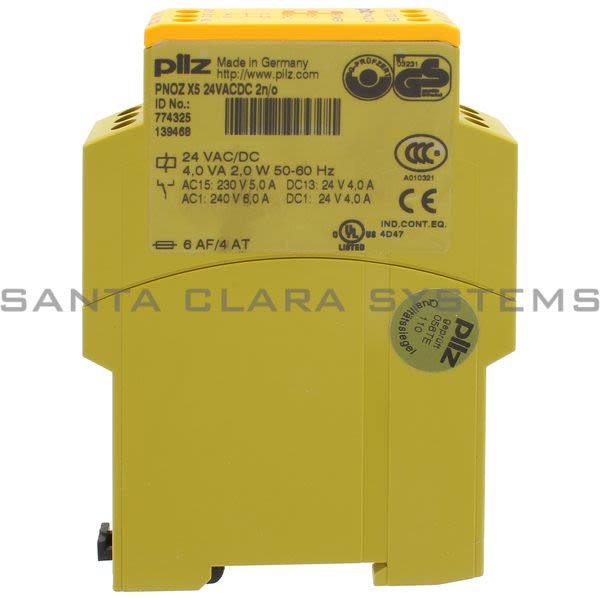

  • Pilz PNOZ X5 24VACDC 2N/O-774325 Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automa Product Image
  • Pilz PNOZ X5 24VACDC 2N/O-774325 Barcode

PNOZX524VACDC2N-O-774325

Product Summary:

  • Gross weight:: 195 g
  • Net weight:: 190 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 22.5 mm
Get a Quote

Current response time:

15 Minutes 55 Seconds
  • Description: Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automa
  • Gross weight:: 195 g
  • Net weight:: 190 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 22.5 mm
  • Depth dimension:: 121.0 mm
  • Supply voltage (V):: 24,0
  • Supply voltage type:: AC/DC
  • Terminal type:: Screw terminal
  • Terminal style:: fixed
  • Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
  • Approvals:: CE, cULus Listed, EAC (Eurasian), TV, KOSHA, CCC
  • Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, without detection of shorts across contacts
  • Product standard:: EN 60947-5-1
  • Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
  • Number of instantaneous safety contacts:: 2
  • Stop category:: 0
  • Max. current at DC13 I (6 cycles/min):: 4.0 A
  • Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX524VACDC2N-O-774325 . Santa Clara Systems carries 2,805 items from Pilz.
  • Safety Gates.
  • Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring Without Detection Of Shorts Across Contacts Outputs: 2 N/O. Automatic/Manual Start Ub 24 V Ac/Dc
  • Width: 22.5 Mm
  • Plug-In Terminals Of Screw Type Monitoring E-Stop
  • Alternates

    • 774325
    • PNOZ-X5-24VACDC-2N/O - 774325
