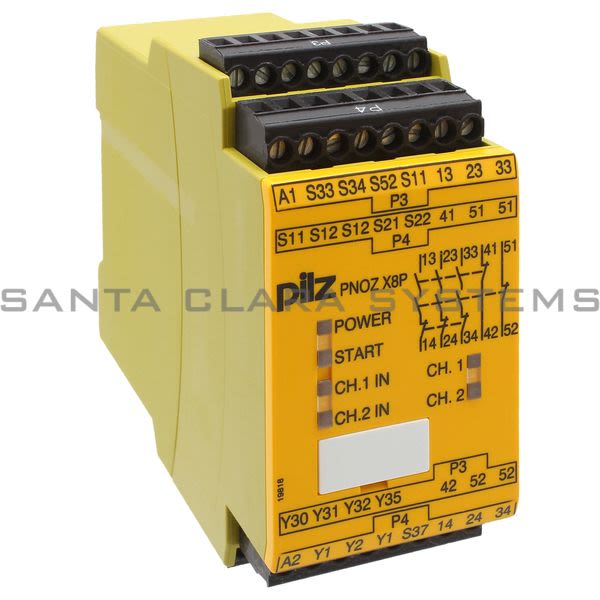

• Pilz PNOZ X8P 24 VDC 3N/O 2N/C 2SO-777760 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 2 Product Image

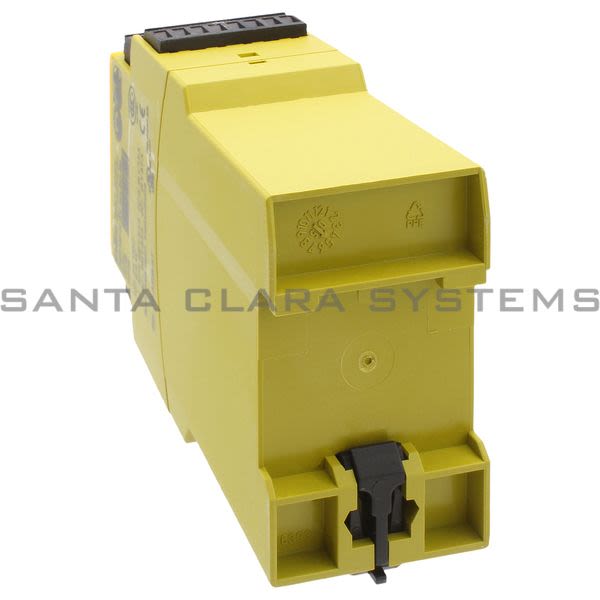

  • Pilz PNOZ X8P 24 VDC 3N/O 2N/C 2SO-777760 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 2 Product Image

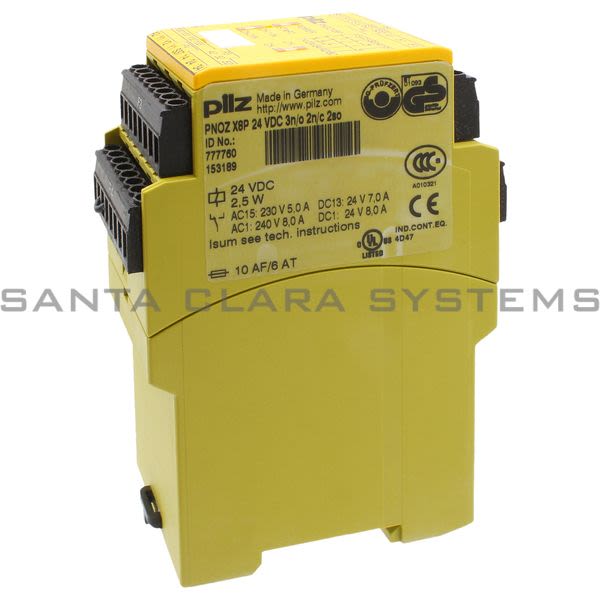

  • Pilz PNOZ X8P 24 VDC 3N/O 2N/C 2SO-777760 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 2 Product Image

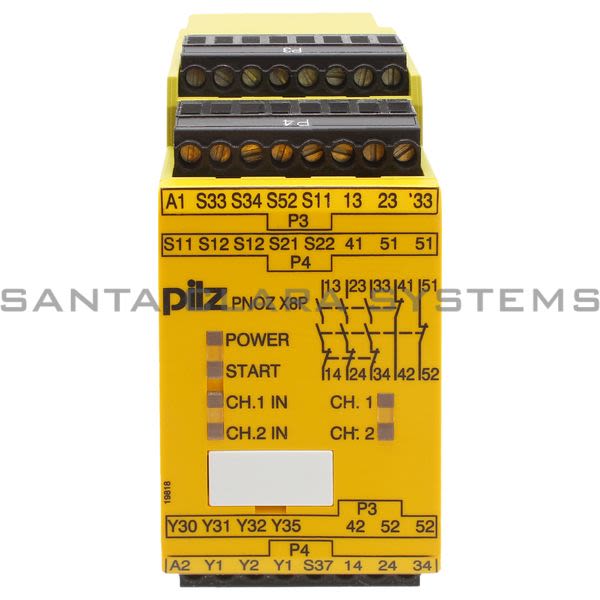

  • Pilz PNOZ X8P 24 VDC 3N/O 2N/C 2SO-777760 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 2 Product Image
  • Pilz PNOZ X8P 24 VDC 3N/O 2N/C 2SO-777760 Barcode

PNOZX8P24VDC3N-O2N-C2SO-777760

Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 3 N/O, 2
  • Gross weight:: 330 g
  • Net weight:: 315 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 94.0 mm
  • Width dimension:: 45.0 mm
  • Depth dimension:: 121.0 mm
  • Supply voltage (V):: 24,0
  • Supply voltage type:: DC
  • Terminal type:: Screw terminal
  • Terminal style:: Plug-in
  • Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
  • Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
  • Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset
  • Product standard:: EN 60947-5-1
  • Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
  • Number of instantaneous safety contacts:: 3
  • Number of auxiliary contacts:: 2
  • Number of semiconductor outputs:: 2
  • Stop category:: 0
  • Max. current at DC13 I (6 cycles/min):: 7.0 A
  • Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX8P24VDC3N-O2N-C2SO-777760 . Santa Clara Systems carries 328 items from Pilz.
  • Plug-In Terminals Of Screw Type Monitoring E-Stop
  • Safety Gates.
  • Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 3 N/o
  • 2 N/c
  • 2 Semiconductor. Automatic/monitored Start Ub 24 V Dc
  • Width: 45 Mm
