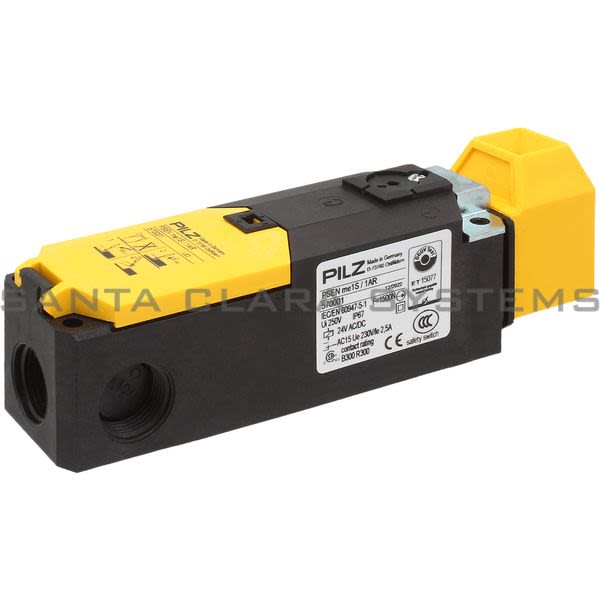

• Pilz PSEN ME1S / 1AR-570001 Mechanical safety switch with radius actuator Interlock principle  spring force Contacts 2 N/O, 2 N/C Supply voltage 24 Product Image
  • Pilz PSEN ME1S / 1AR-570001 Mechanical safety switch with radius actuator Interlock principle  spring force Contacts 2 N/O, 2 N/C Supply voltage 24 Product Image
  • Pilz PSEN ME1S / 1AR-570001 Mechanical safety switch with radius actuator Interlock principle  spring force Contacts 2 N/O, 2 N/C Supply voltage 24 Product Image
  • Pilz PSEN ME1S / 1AR-570001 Mechanical safety switch with radius actuator Interlock principle  spring force Contacts 2 N/O, 2 N/C Supply voltage 24 Product Image
  • Pilz PSEN ME1S / 1AR-570001 Barcode

PSENME1S-1AR-570001

Get a Quote

Current response time:

9 Minutes 14 Seconds
  • Description: Mechanical safety switch with radius actuator Interlock principle spring force Contacts 2 N/O, 2 N/C Supply voltage 24
  • Gross weight:: 513 g
  • Net weight:: 335 g
  • Ambient temperature:: -25 - 70 C
  • Height dimension:: 184.0 mm
  • Width dimension:: 42.5 mm
  • Depth dimension:: 51.0 mm
  • Supply voltage (V):: 24,0
  • Supply voltage type:: AC/DC
  • Protection type, housing:: IP67
  • Approvals:: CE, EAC (Eurasian), BG, CCC, cCSAus
  • Type of guard locking:: Spring force
  • Extraction force:: 27 N
  • Latching force:: 1500 N
  • Auxiliary release:: Yes
  • Actuator:: Radius
  • Number of N/O:: 2
  • Number of N/C:: 2
  • Voltage at AC1:: 240 V
  • Max. current at AC1:: 2.5 A
  • Voltage at AC15:: 230 V
  • Max. current at AC15:: 2.5 A
  • Power consumption AC:: 4.4 VA
  • Power consumption DC:: 4.4 W
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PSENME1S-1AR-570001 . Santa Clara Systems carries 328 items from Pilz.
  • Mechanical Safety Switch With Radius Actuator Interlock Principle Spring Force Contacts 2 N/o
  • Mechanical Safety Switch With Radius Actuator Interlock Principle Spring Force Contacts 2 N/o
  • 2 N/c Supply Voltage 24 V Ac/dc.
