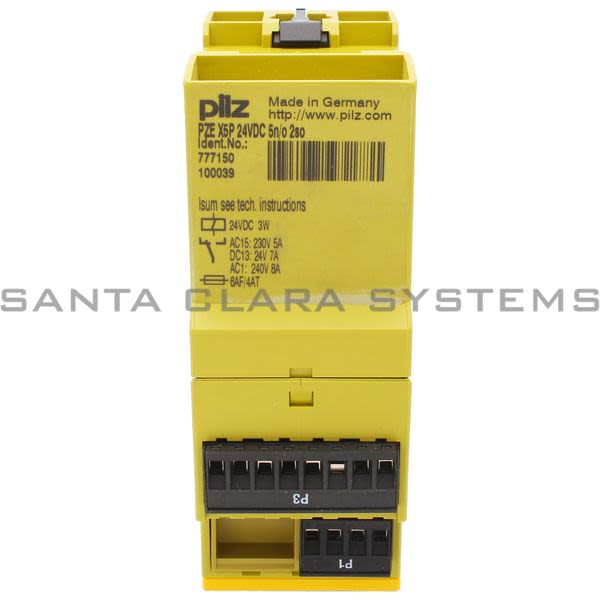

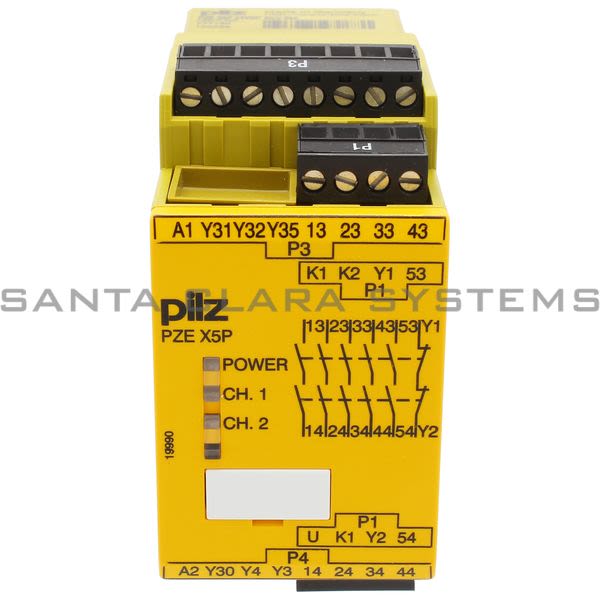

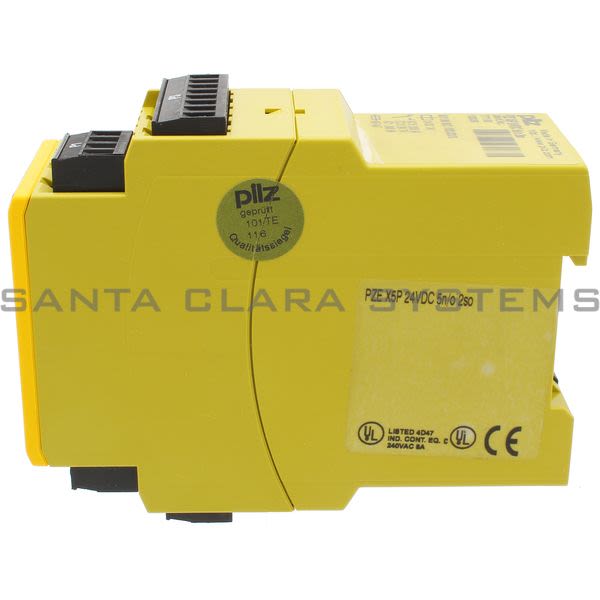

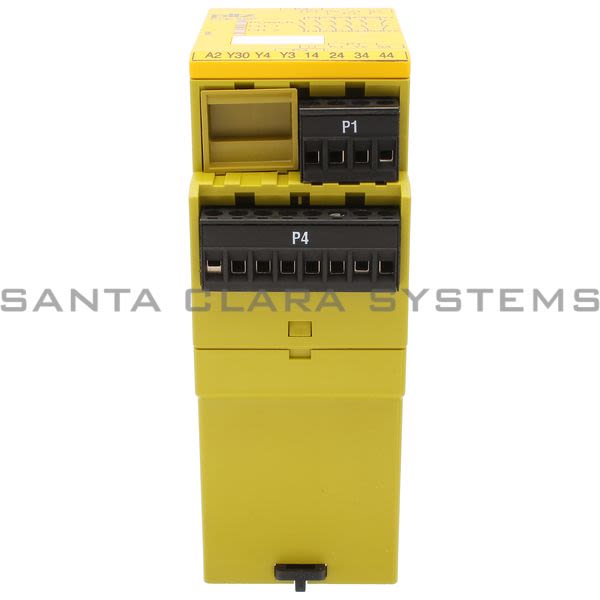

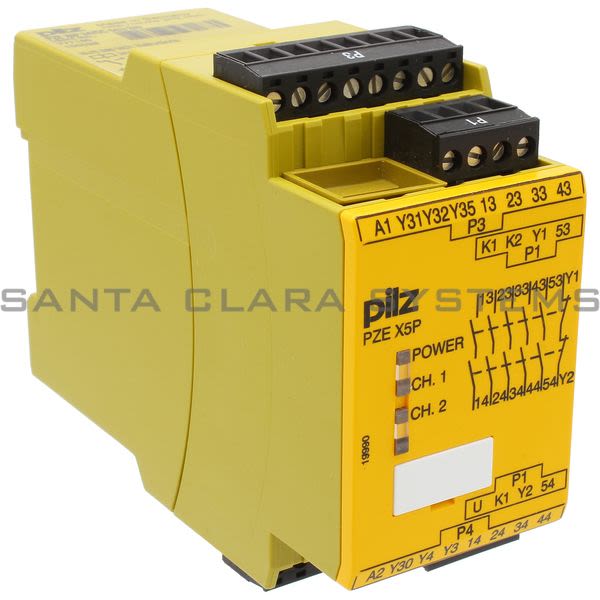

PZEX5P24VDC5N-O2SO-777150
Product Summary:
- Gross weight:: 270 g
- Net weight:: 260 g
- Ambient temperature:: -10 - 55 °C
- Height dimension:: 94.0 mm
- Width dimension:: 45.0 mm
Get a Quote
Current response time:
10 Minutes 53 Seconds
- Description: Safety Relay
- Gross weight:: 270 g
- Net weight:: 260 g
- Ambient temperature:: -10 - 55 °C
- Height dimension:: 94.0 mm
- Width dimension:: 45.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: Plug-in
- Application options:: Instantaneous contact expansion
- Approvals:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
- Operating modes:: Single-channel, Dual-channel, Detection of shorts across contacts, without detection of shorts across contacts
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 5
- Max. current at DC13 I (6 cycles/min):: 7.0 A
- Voltage at AC15:: 230 V
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZEX5P24VDC5N-O2SO-777150 . Santa Clara Systems carries 347 items from Pilz.
- Plug-In Terminals Of Screw Type. Contact Block For Contact Expansion In Connection With Safety-Related Control Components.
- Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 5 N/o
- 2 Semiconductor. Ub 24 V Dc
- Width: 45 Mm
Alternates
- 777150
- PZE X5P 24VDC 5N/O 2SO
- PZE-X5P-24VDC-5N/O-2SO-777150
