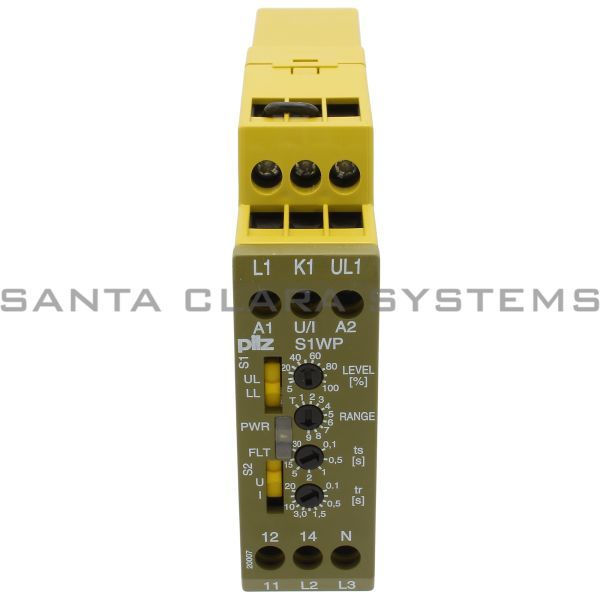

• Pilz S1WP 9A 24VDC UM 0-120VAC/DC-890000 True power monitoring for 1- and 3-phase mains Suitable for frequency-controlled motors; 9 measuring ranges 0 - 1000 Hz; Product Image

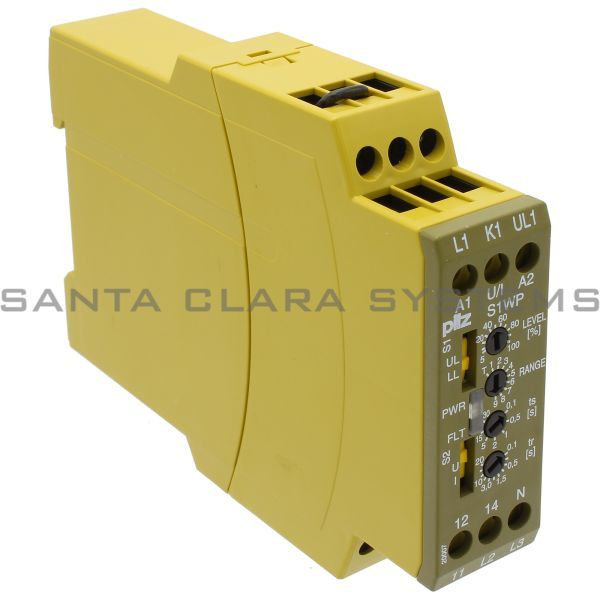

  • Pilz S1WP 9A 24VDC UM 0-120VAC/DC-890000 True power monitoring for 1- and 3-phase mains Suitable for frequency-controlled motors; 9 measuring ranges 0 - 1000 Hz; Product Image

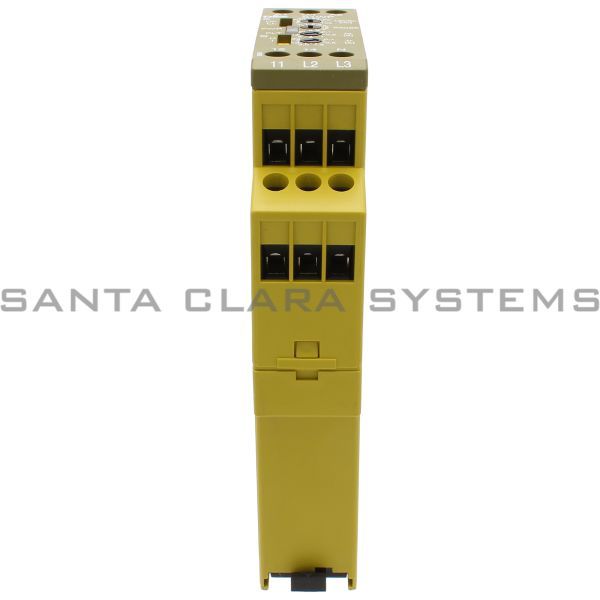

  • Pilz S1WP 9A 24VDC UM 0-120VAC/DC-890000 True power monitoring for 1- and 3-phase mains Suitable for frequency-controlled motors; 9 measuring ranges 0 - 1000 Hz; Product Image
  • Pilz S1WP 9A 24VDC UM 0-120VAC/DC-890000 True power monitoring for 1- and 3-phase mains Suitable for frequency-controlled motors; 9 measuring ranges 0 - 1000 Hz; Product Image
  • Pilz S1WP 9A 24VDC UM 0-120VAC/DC-890000 Barcode

S1WP9A24VDCUM0-120VAC-DC-890000

Product Summary:

  • Gross weight:: 170 g
  • Net weight:: 130 g
  • Ambient temperature:: 0 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 22.5 mm
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: True power monitoring for 1- and 3-phase mains Suitable for frequency-controlled motors; 9 measuring ranges 0 - 1000 Hz;
  • Application options:: True power measurement
  • Supply voltage (V):: 24,0
  • Supply voltage type:: DC
  • Measuring voltage:: 0 - 120
  • Measuring current:: 9
  • Terminal type:: Screw terminal
  • Terminal style:: fixed
  • Approvals:: CE, cULus Listed, UL/cUL, CCC
  • Number of auxiliary contacts:: 1
  • Width dimension:: 22.5 mm
  • Height dimension:: 87.0 mm
  • Depth dimension:: 121.0 mm
  • Gross weight:: 170 g
  • Net weight:: 130 g
  • Ambient temperature:: 0 - 55 C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S1WP9A24VDCUM0-120VAC-DC-890000 . Santa Clara Systems carries 2,805 items from Pilz.
  • 1 Analogue Output 0 - 10 V Dc Or 4 - 20 Ma. Width: 22.5 Mm; Ub 24 V Dc.
  • True Power Monitoring For 1- And 3-Phase Mains Suitable For Frequency-Controlled Motors; 9 Measuring Ranges 0 - 1000 Hz; Measuring Voltage 0 - 120 V Ac/Dc
  • 1 Changeover Contact Output
  • Alternates

    • 89000
    • S1WP-890000
    • S1WP890000
    • S1WP 9A 24VDC UM 0-120VAC/DC
    • 890000
    • S1WP-9A-24VDC-UM-0-120VAC/DC-890000
