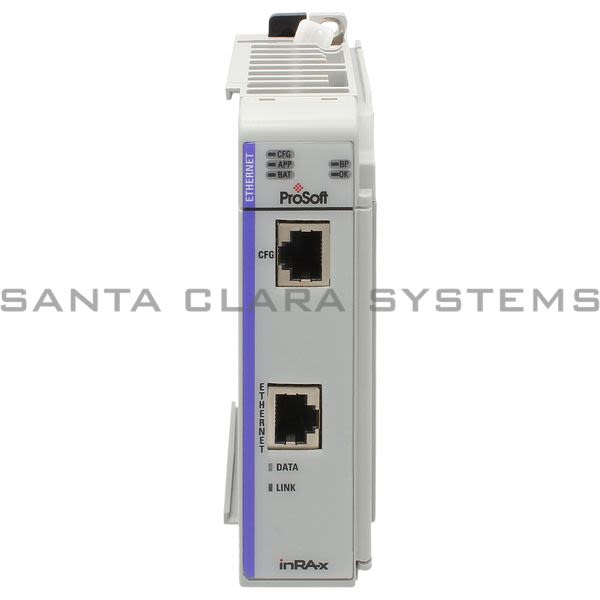

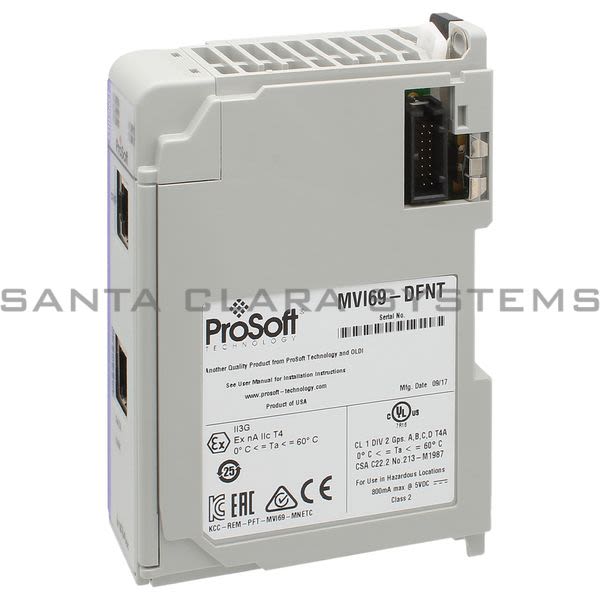

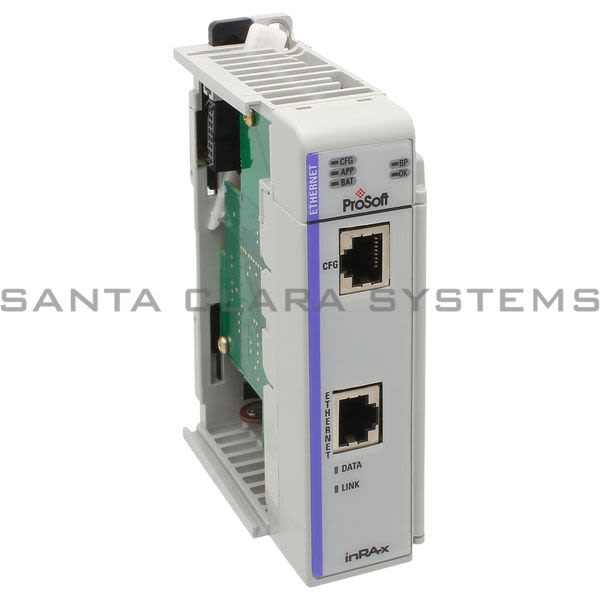

- Description: Communication Module
- Relative Humidity: 5% to 95% RH, with no condensation
- Dimensions: standard 1769 single-slot module
- Current Load: 800 mA maximum @ 5 VDC
- Operating Temp.: 32F to 140F (0C to 60C)
- Storage Temp.: -40F to 185F (-40C to 85C)
- LED Indicators: power and module status, application status, CFG & ethernet port activity, error status

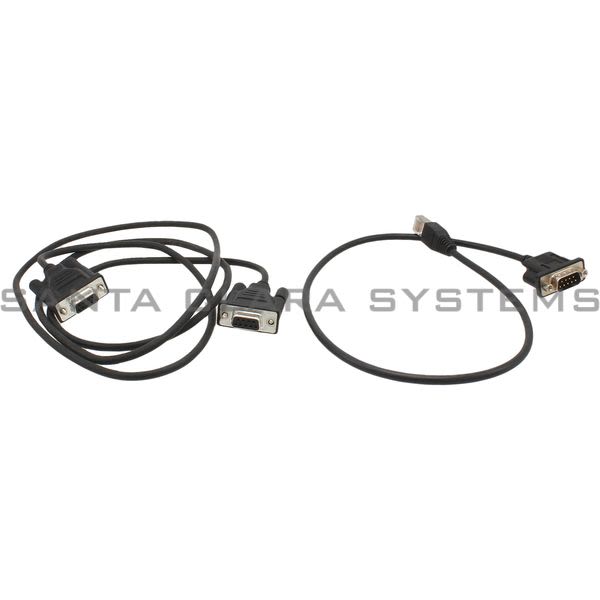

- Config Port (CFG): RJ45 (DB-9M with supplied cable), RS-232 only, no hardware handshaking
- Ethernet Port: RJ45 Connector
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MVI69-DFNT . Santa Clara Systems carries 121 items from ProSoft.
- And Host Hmi Systems.<Br/><Br/>the Module Can Send Read Or Write Commands To Remote Devices On The Ethernet/ip Network. The Module Also Has 20 Servers That Allow The Module To Receive Commands From<Br/>remote Devices. Up To 100 Commands Can Be Configured By The User. The Module Provides Support For An Ethernet Port To Be Used In Applications Requiring A Separate Or Dedicated Network.
- The Mvi69 Ethernet/ip (Df1 For Ethernet) Client/server Communication Module Is A Compactlogix / Micrologix 1500 Lrp Backplane Compatible Module That Allows Compactlogix / Micrologix Processors To Interface Easily With Ethernet/ip Protocol (Explicit Messaging) Compatible Devices And Hosts. Devices Commonly Supporting The Protocol Include Plcs
- Pacs
