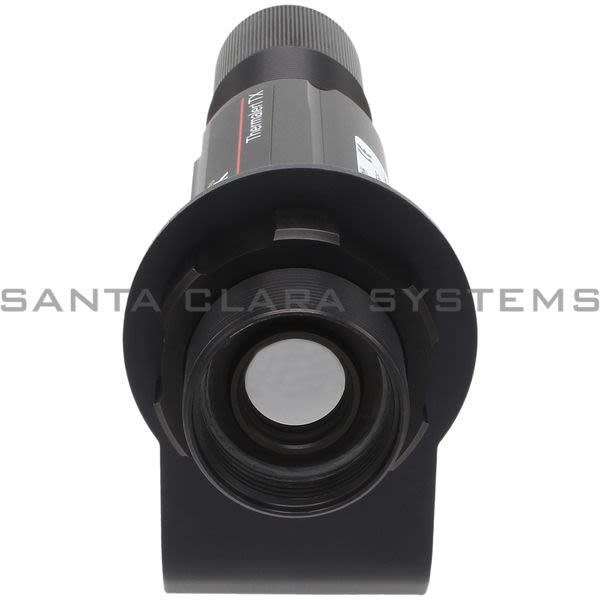

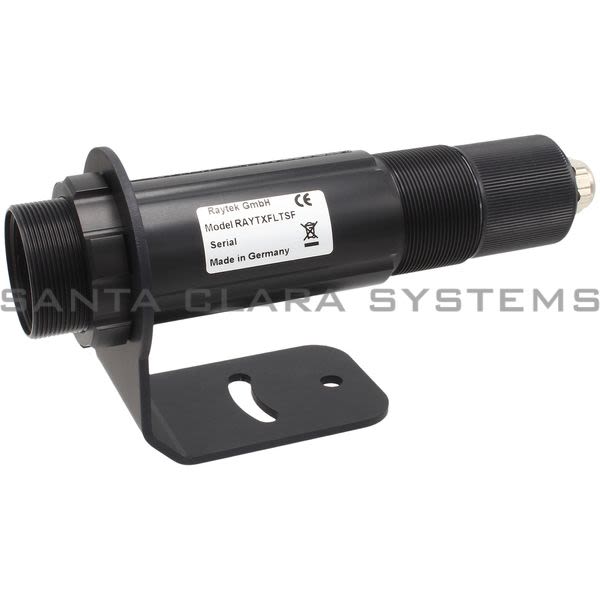

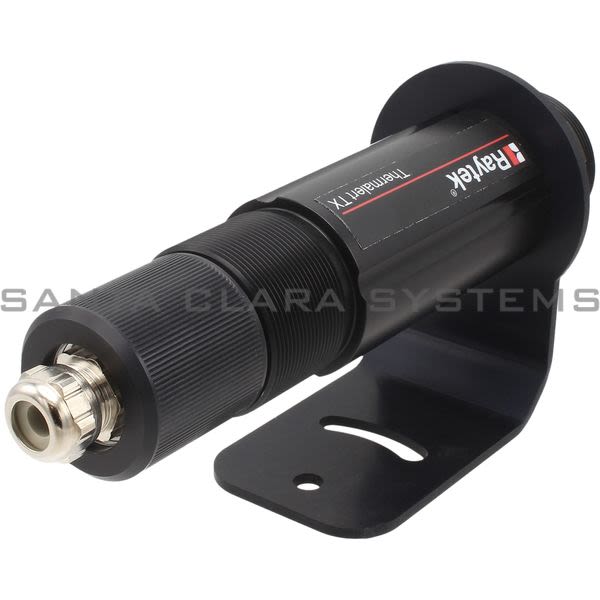

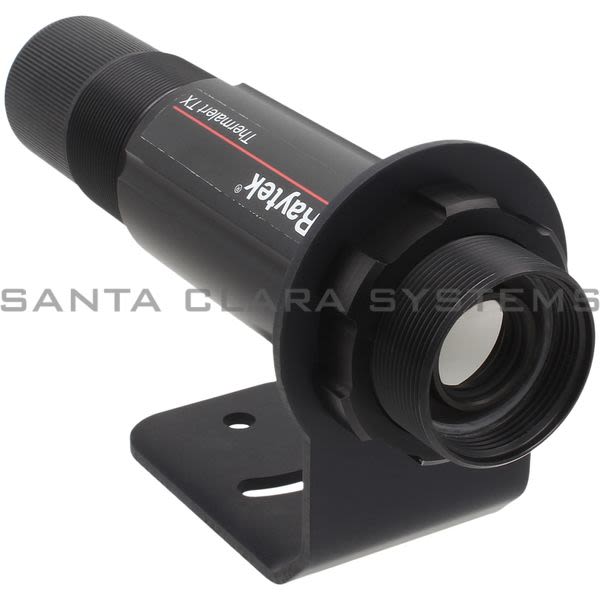

RAYTXFLTSF
In stock and ready to ship
Product Summary:
- Temperature Range: -18 to 500C (0 to 1000F)
- Resolution: 0.1C (0.2F)
- Repeatability: 0.5% of measured value or 0.7C (1.2F), whichever is greater
- Response Time: 165 ms (95%)
- Spectral Response: 1 m
Get a Quote
Current response time:
6 Minutes 38 Seconds
- Description: Temperature Detector
- Temperature Range: -18 to 500C (0 to 1000F)
- Resolution: 0.1C (0.2F)
- Accuracy: 1% of measured value or 1.4C (2.5F), whichever is greater, @23C 5C (73F 9F)
- Repeatability: 0.5% of measured value or 0.7C (1.2F), whichever is greater
- Response Time: 165 ms (95%)
- Spectral Response: 1 m
- Optical Resolution : 33:1 (1520mm (60") @ 45mm (1.8"))
- Emissivity: Adjustable; 0.10 to 1.00
- Outputs: 4-20 mA, max. 700 @ 24VDC; Hart or RS-232 (with optional adapter); 24V/150mA; adjustable setpoints, deadband, normally open/closed settings
- Power Supply: 24VDC, 4-20mA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RAYTXFLTSF . Santa Clara Systems carries 3 items from Raytek.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
