60949

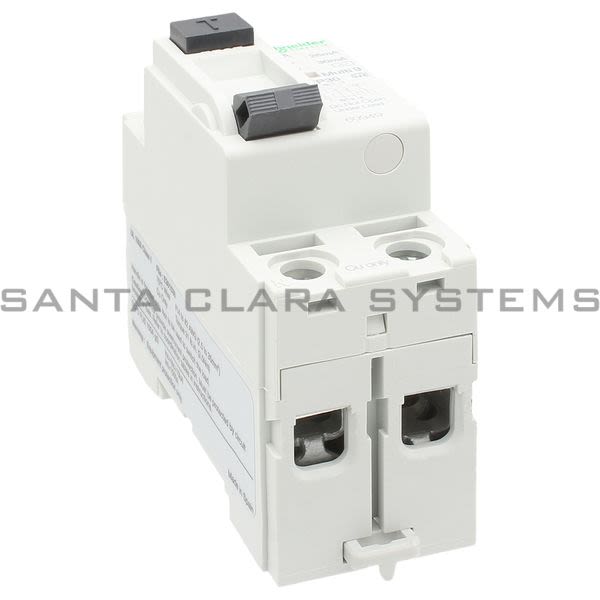

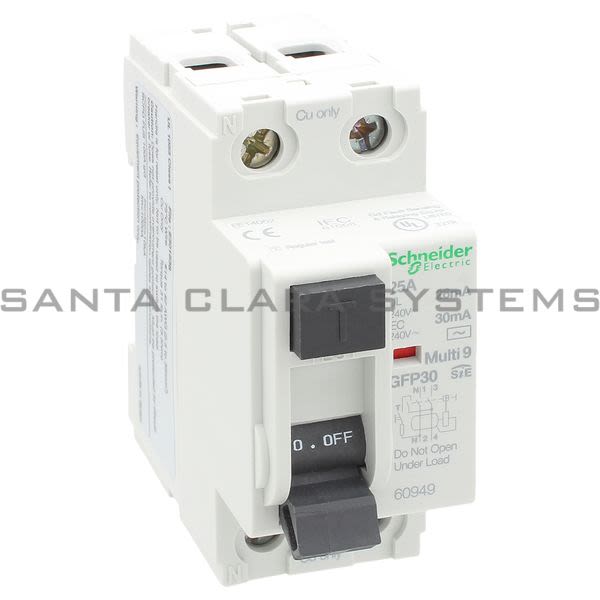

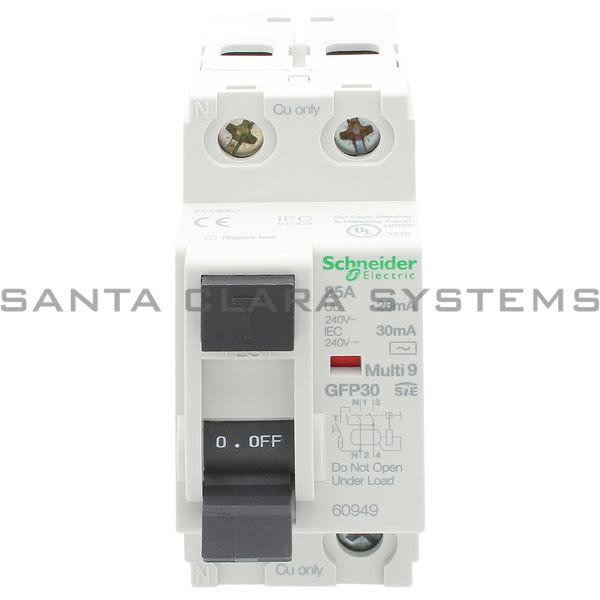

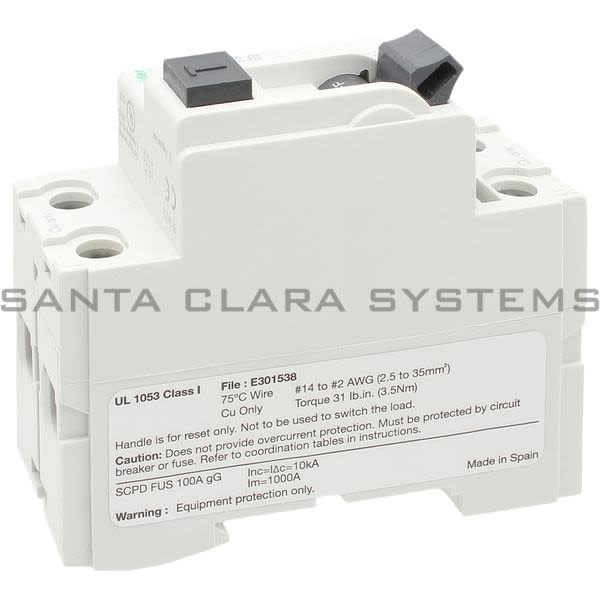

Schneider - Ground Fault Protector

Product Summary:

Product name: Multi 9 GFP
Product or component type: Residual current circuit breaker (RCCB)
Device short name: GFP
Poles description: 2P
Neutral position: Left

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Schneider Authorized Distributor.

Description: Ground Fault Protector
Product name: Multi 9 GFP
Product or component type: Residual current circuit breaker (RCCB)
Device short name: GFP
Poles description: 2P
Neutral position: Left
[In] rated current: 25 A 40 C
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC-SIE
Rated conditional short-circuit current: 10 kA
Utilisation category: AC-23A
Network frequency: 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV

Control type: Toggle
Local signalling: Fault indication
Connection pitch: 18 mm : Between phases
9 mm pitches: 4
Height: 81 mm
Width: 36 mm
Depth: 75 mm
Product weight: 220 g
Colour: Grey
Mechanical durability: 20000 cycles
Provision for padlocking: Padlockable
Locking options description: Padlocking in OFF position
Connections - terminals: "Tunnel type terminals 2.5...35 mm flexible
[Ue] rated operational voltage: "230/240 V AC 50 Hz

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 60949 . Santa Clara Systems carries 1,977 items from Schneider.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
