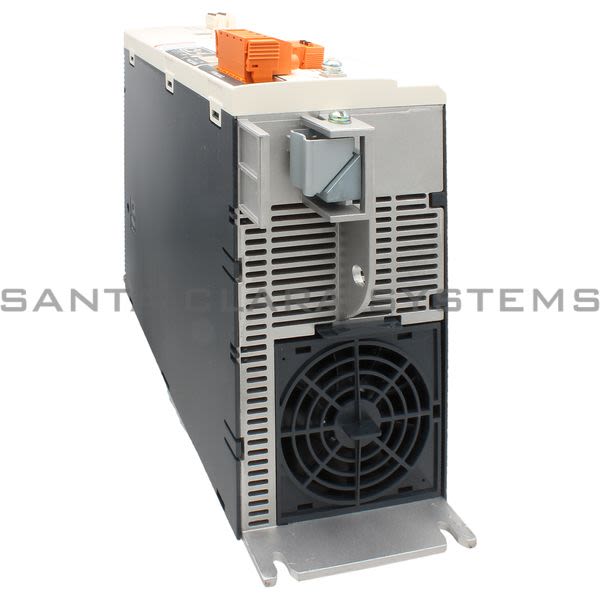

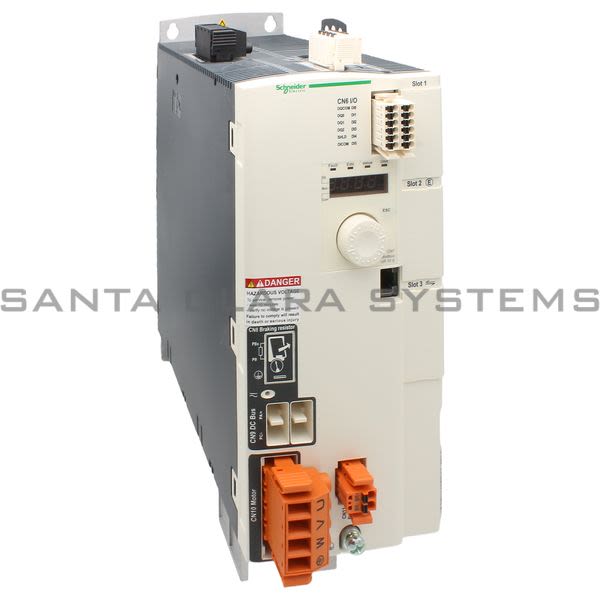

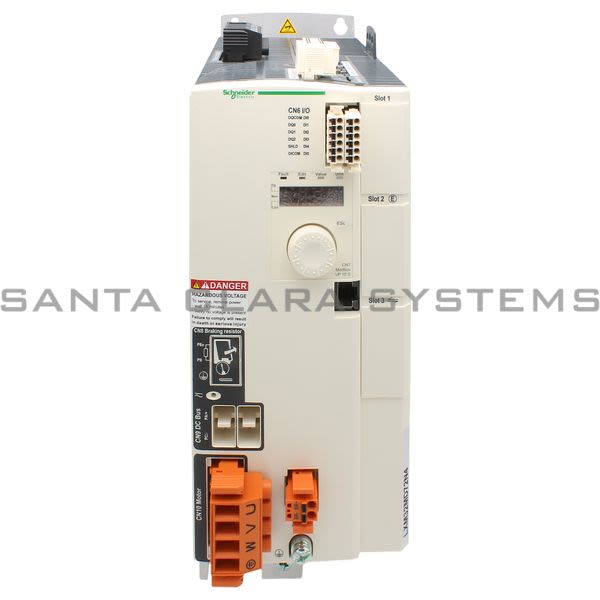

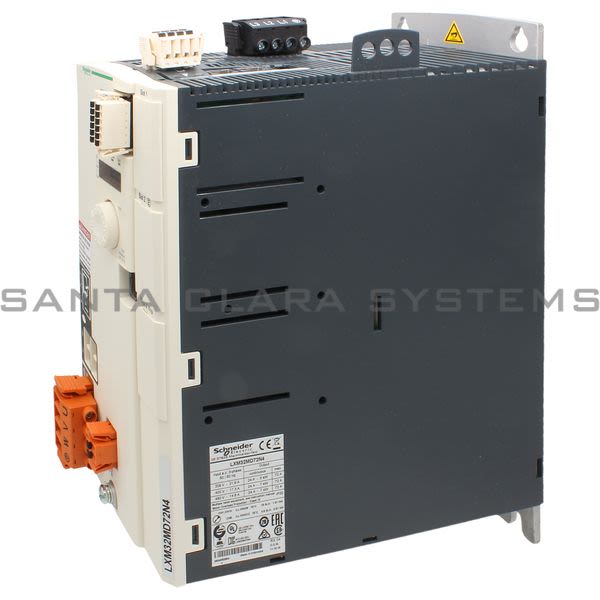

LXM32MD72N4

Schneider - Motion Servo Drive

Product Summary:

Product or component type: Motion servo drive
Device short name: LXM32M
Format of the drive: Book
Network number of phases: Three phase
Switching frequency: 8 kHz

Current response time:

12 Minutes 1 Second

*Santa Clara Systems is not a Schneider Authorized Distributor.

Description: Motion Servo Drive
Product or component type: Motion servo drive
Device short name: LXM32M
Format of the drive: Book
Network number of phases: Three phase
Switching frequency: 8 kHz
Overvoltage category: III
Leakage current: <= 30 mA
Output voltage: <= power supply voltage
Electrical isolation: Between power and control
Type of cable: Single-strand IEC cable (for ? = 50 C) conductor material: copper 90 C ,wire insulation material: XLPE/EPR
Electrical connection: Terminal cable 3 mm AWG 12 (CN8)
Tightening torque: 0.5 N.m (CN8)
Discrete input number: 2 capture
Discrete input type: Capture (CAP)
Sampling duration: 0.25 ms
Discrete input voltage: 24 V DC for capture
Discrete input logic: Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Response time: <= 5 ms (compliment of STO_A, compliment of STO_B)
Discrete output number: 3
Discrete output type: Logic (DO) 24 V DC
Discrete output voltage: <= 30 V DC
Discrete output logic: Positive or negative (DO) conforming to EN/IEC 61131-2
Contact bounce time: <= 1 ms (compliment of STO_A, compliment of STO_B)
Braking current: 50 mA
Response time on output: 250 s (DO) discrete
Control signal type: Pulse train output (PTO) RS422 <= 500 kHz <= 100 m
Protection type: Against reverse polarity :inputs signal
Safety function: STO (safe torque off), integrated

Safety level: SIL 3 conforming to EN/IEC 61508
Communication interface: Integrated Modbus
Connector type: RJ45 (labelled CN7) :Modbus
Commissioning port: 2-wire RS485 multidrop Modbus
Transmission rate: 9600, 19200, 38400 bps for bus length of 40 m Modbus
Number of addresses: Modbus
status LED: 1 LED (red) servo drive voltage
Signalling function: Display of faults in 7 segments
Marking: CE
Operating position: Vertical +/- 10 degree
Product compatibility: Servo motor BMH (140 mm, 2 motor stacks)
Width: 108 mm
Height: 270 mm
Depth: 237 mm
Product weight: 4.8 kg
Electromagnetic compatibility: Conducted EMC at class A group 1 conforming to EN 55011
Standards: EN/IEC 61800-3
Product certifications: CSA
IP degree of protection: IP20 conforming to EN/IEC 60529
Vibration resistance: 1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60028-2-27
Pollution degree: 2 conforming to EN/IEC 61800-5-1
Environmental characteristic: Classes 3C1 conforming to IEC 60721-3-3
Relative humidity: Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
Ambient air temperature for operation: 0...50 C conforming to UL
Ambient air temperature for storage: -25...70 C
Type of cooling: Integrated fan
Operating altitude: <= 1000 m without derating
