DS35-B15221

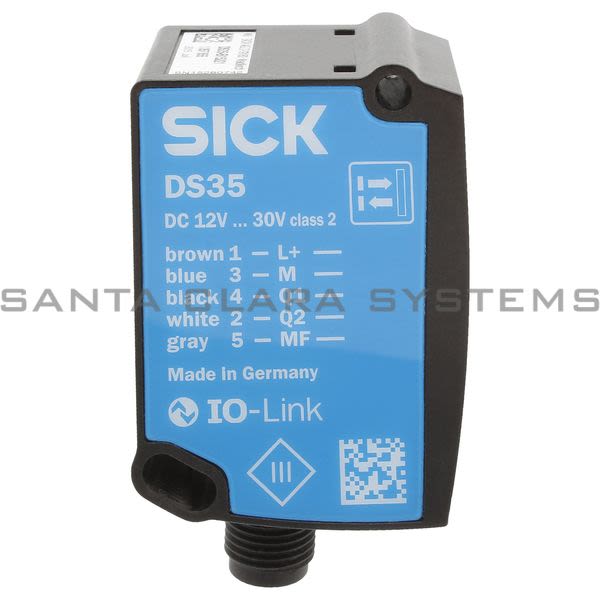

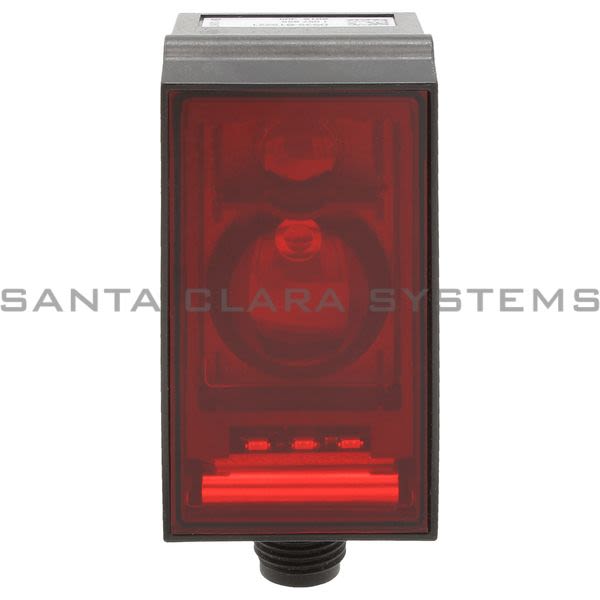

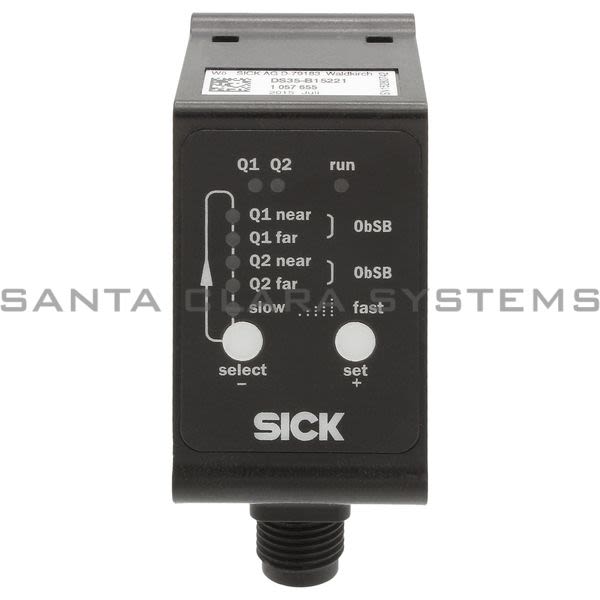

Sick - Mid Range Distance Sensor | 1057655

Current response time:

14 Minutes 3 Seconds

Description: Mid Range Distance Sensor | 1057655

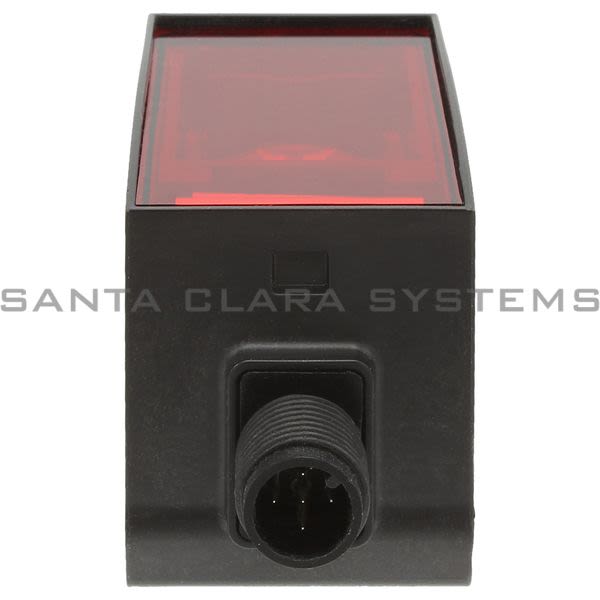

Connection type: Male connector, M12, 5-pin
Light source: Laser, red
Weight: 65 g
Switching frequency: 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
Response time: 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
Resolution: 0.1 mm
Target: Natural objects

Repeatability: 0.5 mm
Accuracy: Typ. ± 10 mm
Measuring range: 50 mm ... 12,000 mm, 90 % remission/ 50 mm ... 5,300 mm, 18 % remission/50 mm ... 3,100 mm, 6 % remission
Output time: 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms
Typ. light spot size (distance): 15 mm x 15 mm (at 2 m)
Additional function: Set speed: Super Fast ... Super Slow, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of switching output and switching output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
Average laser service life (at 25 °C): 100,000 h

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DS35-B15221 . Santa Clara Systems carries 4,654 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
