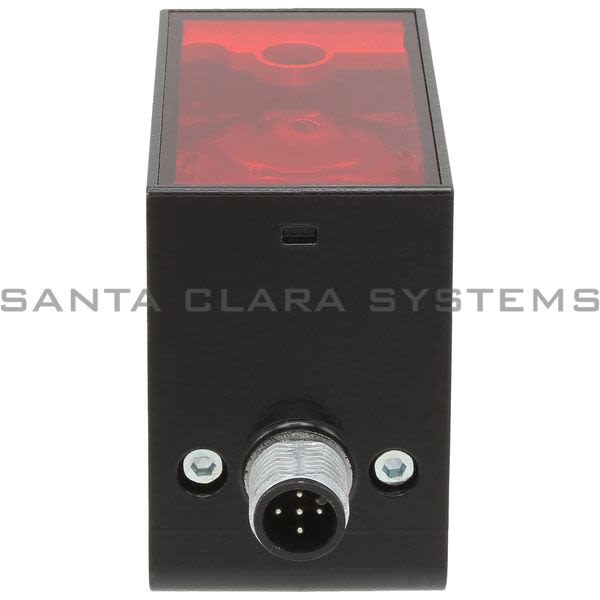

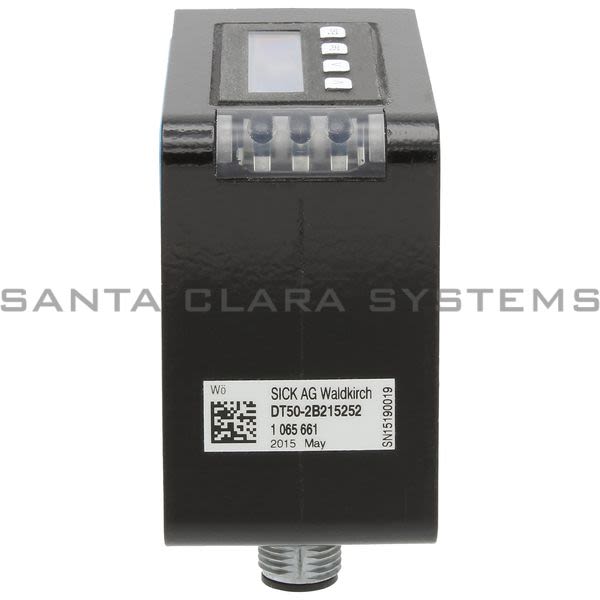

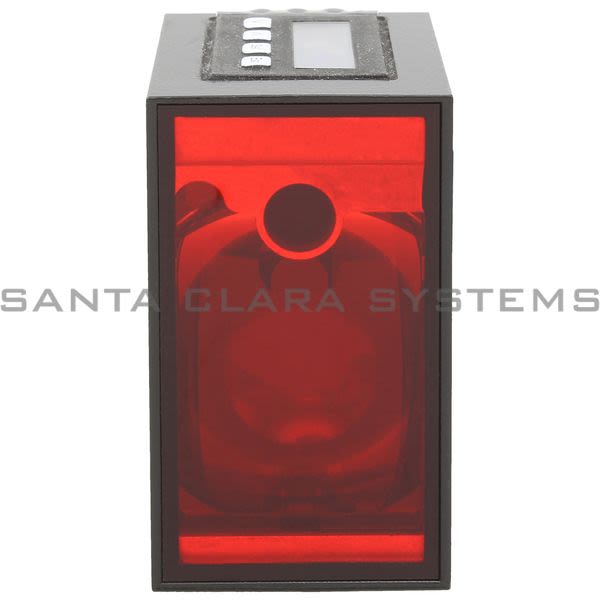

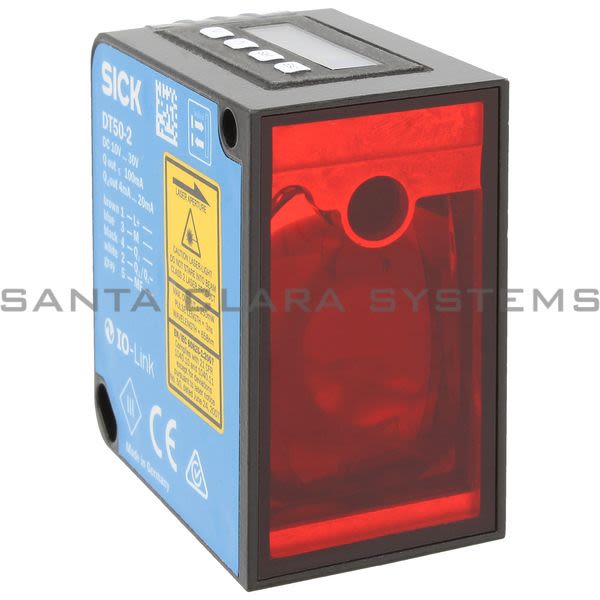

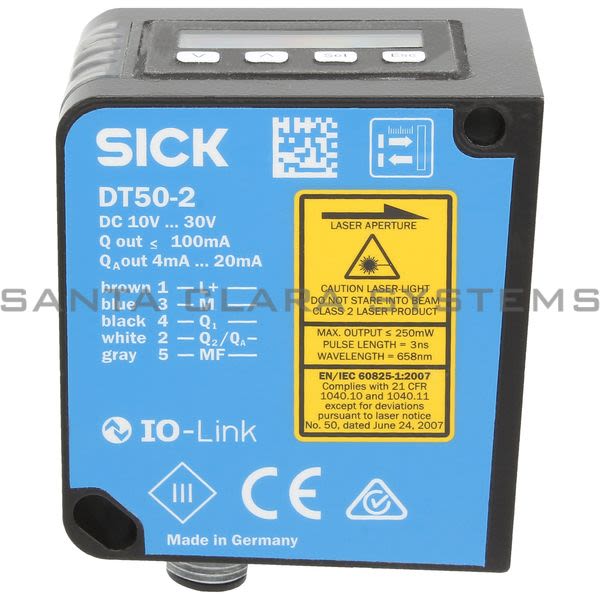

- Description: Distance Sensor
- Connection type: Male connector, M12, 5-pin
- Light source: Laser, red
- Weight: 235 g
- Switching frequency: 1,000 Hz/250 Hz/100 Hz/33 Hz/11 Hz
- Response time: 0.83 ms ... 75 ms, 0.83 ms / 3.33 ms / 8.33 ms / 25 ms / 75 ms
- Resolution: 0.1 mm
- Measuring range: 200 mm ... 30,000 mm, 90 % remission | 200 mm ... 17,000 mm, 18 % remission | 200 mm ... 10,000 mm, 6 % remission
- Target: Natural objects
- Repeatability: 0.5 mm
- Accuracy: 7 mm
- Output time: 0.33 ms/1.33 ms/3.33 ms/10 ms/30 msLight source
- Laser class: 2 (IEC 60825-1:2014, EN 60825-1:2014)
- Typ. light spot size (distance): 10 mm x 10 mm (at 10 m)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DT50-2B215252 . Santa Clara Systems carries 4,517 items from Sick.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
