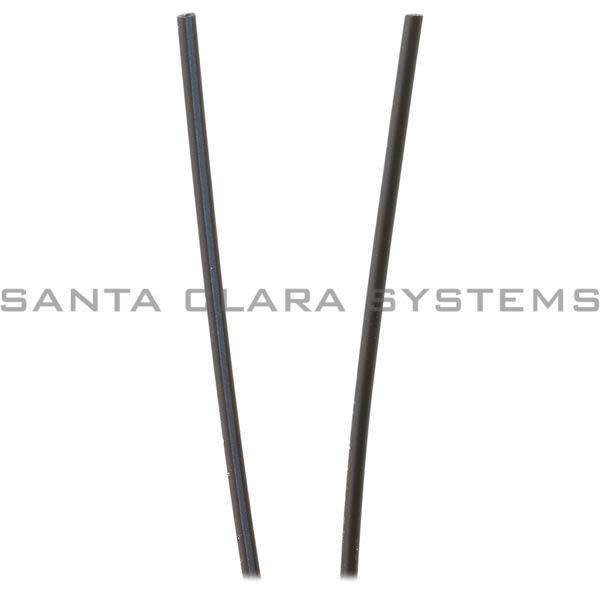

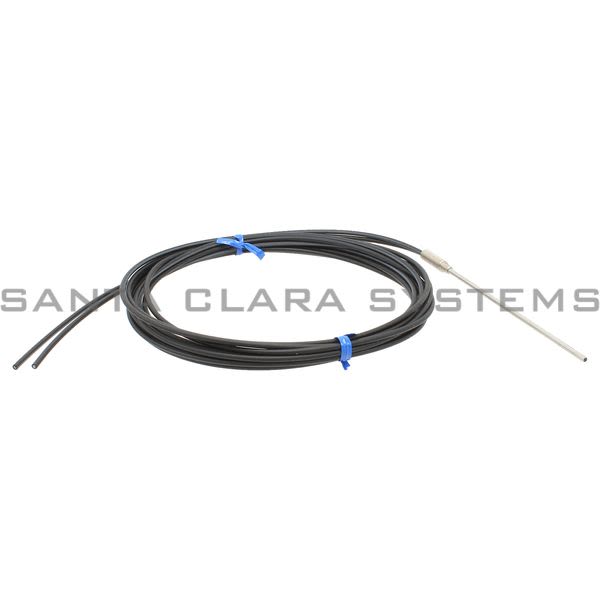

LL3-DB02

Sick - Cable Fiber Optic | 5308083

Current response time:

13 Minutes 40 Seconds

Description: Cable Fiber Optic | 5308083
Device type: Fibers
Fiber material: Polymethylmethacrylat (PMMA)
Detection principle: Proximity system
For fiber-optic sensor: GLL170(T), WLL180T, WLL24 Ex
Fiber length: 2,000 mm
Jacket material: Polyethylen (PE)
Fiber head material: Stainless steel 1)
Outer diameter, fiber-optic cable connection: 2.2 mm
Fiber-optic cable cuttable: 2)
Thread size : M6

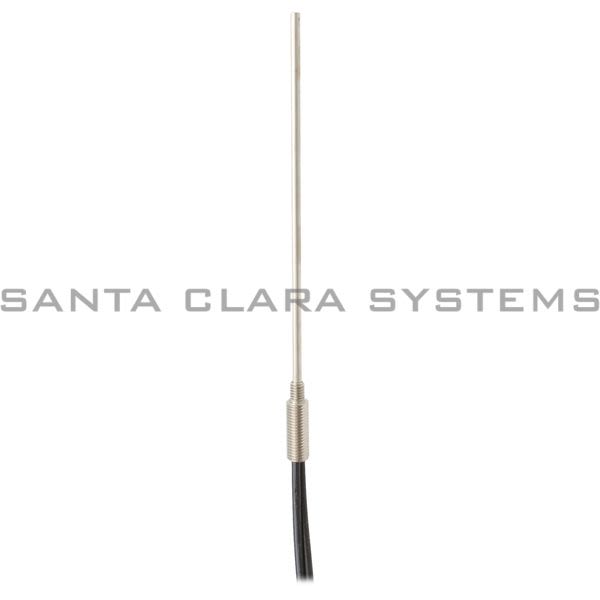

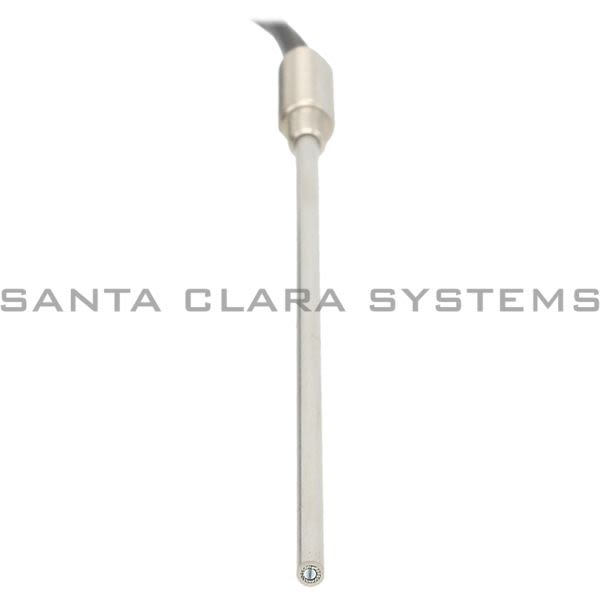

Fiber-optic head design: Threaded sleeve, Long end sleeve, Bendable sleeve
Fiber arrangement: Coaxial arrangement
Core structure: S: 1 mm, R: 16 x 0,25 mm 3) Coaxial arrangement
Bend radius, fibre-optic cable: 25 mm

Angle of dispersion < 60: No
Compatibility with infrared light (1,450 nm): No
Ambient operating temperature: 40 C ... +70 C
Diameter/thread size from 2 mm taper: 2.5 mm
Length of taper: 90 mm
Diameter of taper: 2.5 mm
Highly flexible/elastic fibers (bend radius 14 mm): No
Adapter end sleeves required : No
Angle of dispersion: 60
Integrated lens : No
Minimum bend radius of end sleeve: 10 mm
Minimal object diameter: 0.015 mm 4)
Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters: No
Special features: Ideal for small, insufficient objects. Standard, bendable sleeve, large sensing range
