LL3-DK21

Sick - Fiber Optic Cable

Product Summary:

Device type: Fibers
Fiber material: Polymethylmethacrylat (PMMA)
Detection principle: Proximity system
For fiber-optic sensor: GLL170(T), WLL180T
Fiber length: 500 mm

Current response time:

By 5AM PT on Wednesday

Emergency?

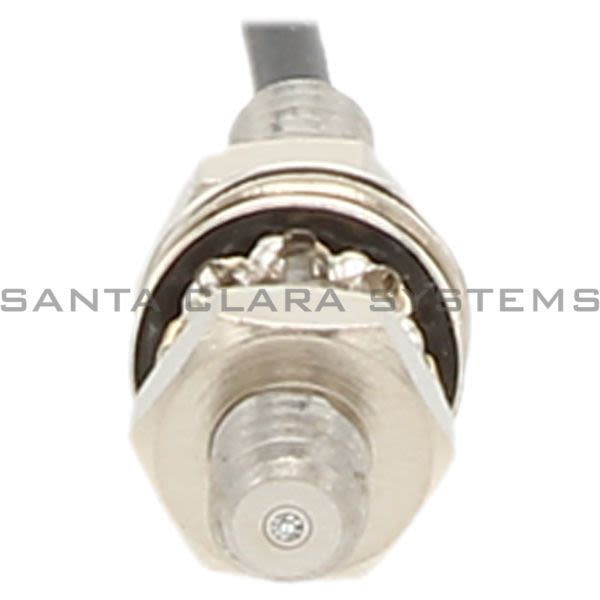

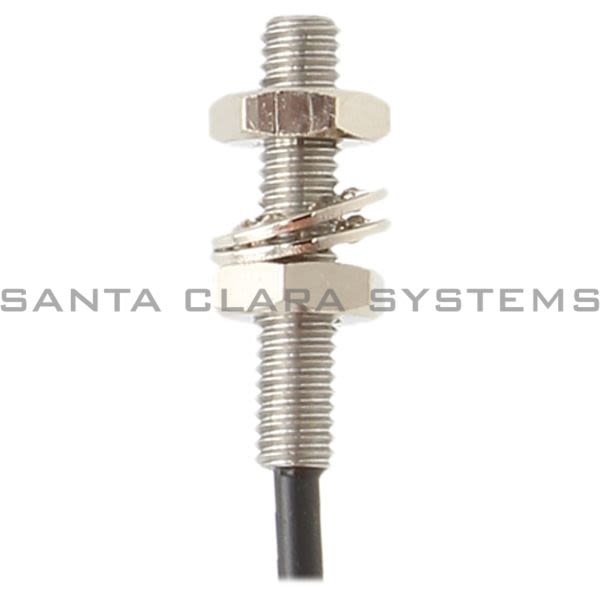

Description: Fiber Optic Cable
Device type: Fibers
Fiber material: Polymethylmethacrylat (PMMA)
Detection principle: Proximity system
For fiber-optic sensor: GLL170(T), WLL180T
Fiber length: 500 mm
Jacket material: Polyethylen (PE)
Fiber head material: Stainless steel
Outer diameter, fiber-optic cable connection: 1.3 mm
Fiber-optic cable cuttable: yes
Thread size: M3
Fiber-optic head design: Threaded sleeve

Fiber arrangement: Coaxial arrangement
Bend radius, fibre-optic cable: 15 mm
Angle of dispersion < 60°: No
Compatibility with infrared light (1,450 nm): No
Highly flexible/elastic fibers (bend radius 1?4 mm): No
Adapter end sleeves required: No
Angle of dispersion: 60°
Integrated lens: No
Minimal object diameter: 0.013 mm
Special features: Coaxial construction for exact switching, compact head
Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer
Compatibility tip adapters: Yes

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LL3-DK21 . Santa Clara Systems carries 5,188 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
