NTL6-B11

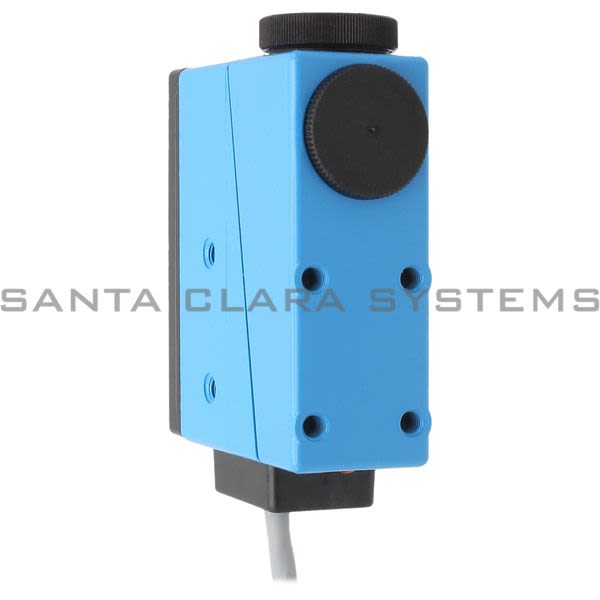

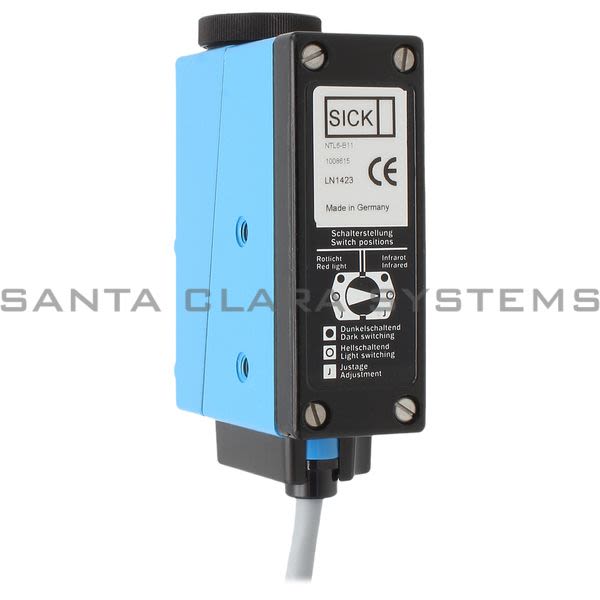

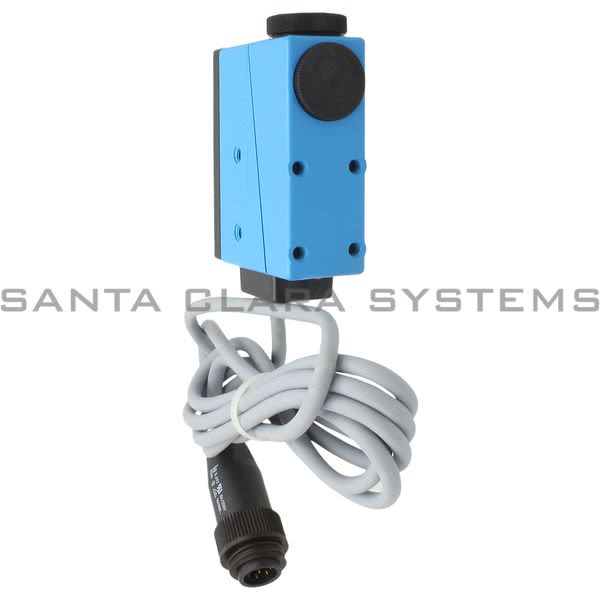

Sick - Contrast Scanner | 1008615

Product Summary:

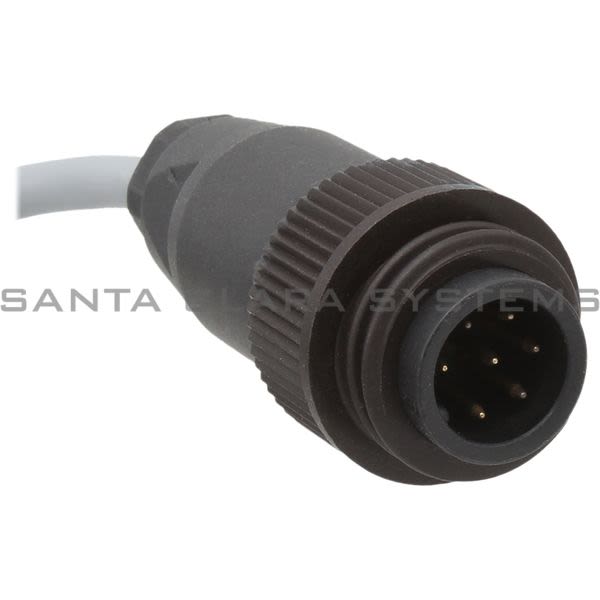

Connection type: Cable, 2 m 5)
Light source: LED, Red, Infrared light 1)
Supply voltage: 10 V DC ... 30 V DC
Housing material: Metal, Zinc diecast
Switching frequency: 10 kHz 3)

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Contrast Scanner | 1008615
Connection type: Cable, 2 m 5)
Light source: LED, Red, Infrared light 1)
Supply voltage: 10 V DC ... 30 V DC
Housing material: Metal, Zinc diecast
Switching frequency: 10 kHz 3)
Response time: > 50 µs
Function: Light/dark switching
Dimensions (W x H x D): 80 mm x 30.4 mm x 64 mm
Ripple: ≤ 5 Vpp 1)

Power consumption: < 80 mA 2)
Switching output: PNP, NPN
Switching output (voltage): B: HIGH = Uv - < 2 V / LOW = < 2 V
Analog output: 0.15 V ... 6 V 4)
Output current Imax.: 200 mA
Ambient operating temperature: 0 °C ... +50 °C
Ambient storage temperature: –25 °C ... +75 °C
Pull-up/Pull-down resistor: 22 k OHM
Wave length: 660 nm, 880 nm
Housing design (light emission): Rectangular
