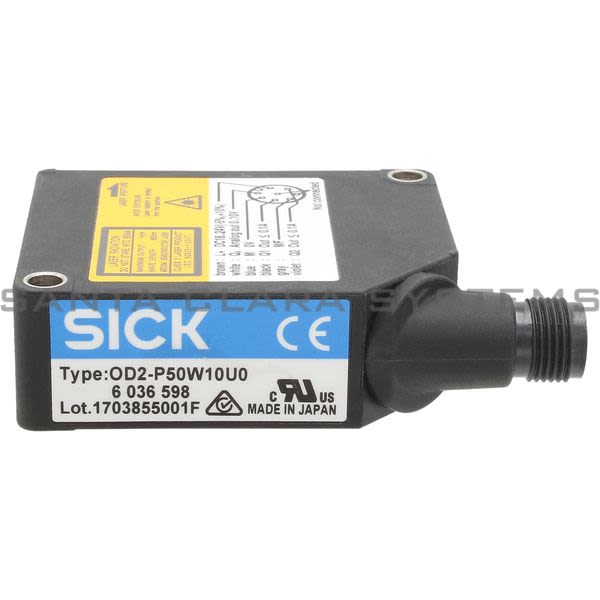

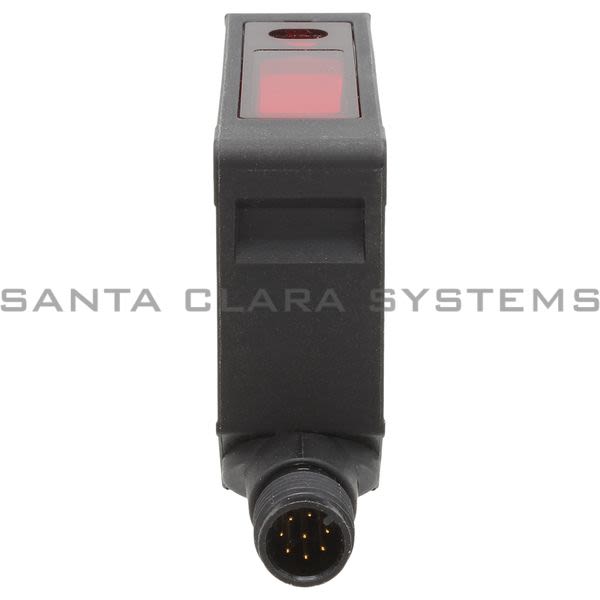

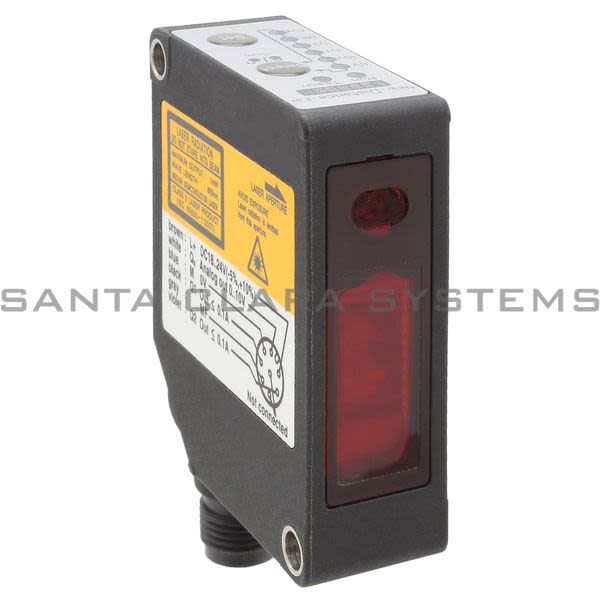

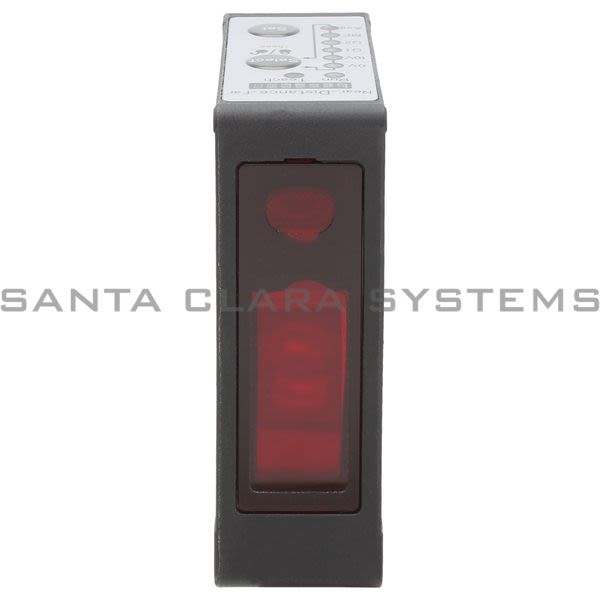

Sick OD2-P50W10U0 Displacement Measurement Sensor | 6036598 Product Image

OD2-P50W10U0

Sick - Displacement Measurement Sensor | 6036598

Product Summary:

Connection type: Male connector, M12, 8-pin, swivel connector unit
Light source: Laser, red
Weight: 70 g
Response time: 1 ms
Measuring range: 40 mm ... 60 mm

Current response time:

12 Minutes 5 Seconds

Description: Displacement Measurement Sensor | 6036598
Connection type: Male connector, M12, 8-pin, swivel connector unit
Light source: Laser, red
Weight: 70 g
Response time: 1 ms
Measuring range: 40 mm ... 60 mm
Target: Natural objects

Repeatability: 5 µm
Linearity: ± 20 µm
Measuring frequency: 2 kHz
Output time: 0.5 ms
Laser class: 2
Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm)
Additional function: Mean-value setting 1 ? 64x, automatic sensitivity adjustment, Analog outputs can be taught in, Invertable analog output, Teach-in of switching output, Invertable switching output, multifunctional input: laser-off / external teach-in / trigger, switching mode: distance to object (DtO), switching mode: window (Wnd)
