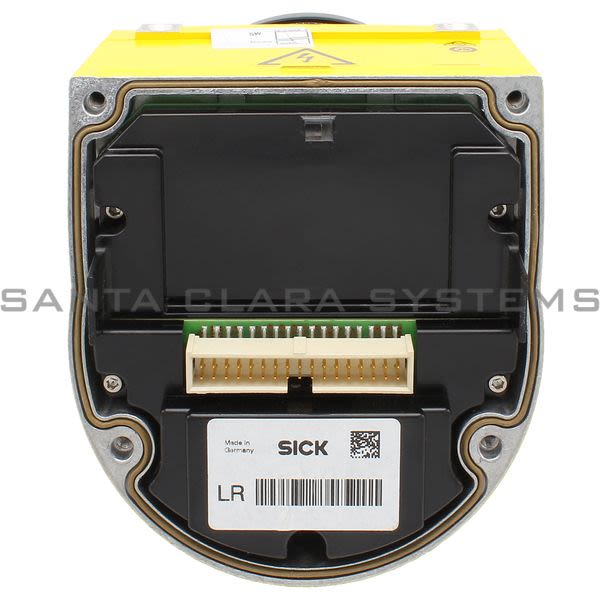

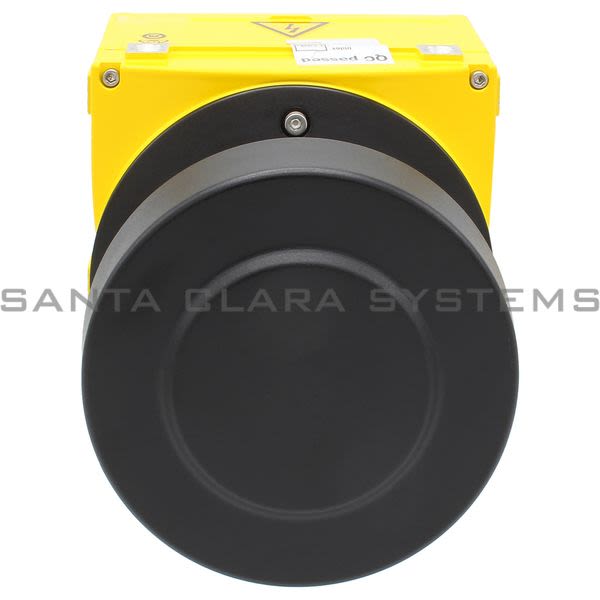

- Description: Safety Laser Scanner | 1057641
- Connection type: System plug with or without connecting cable
- Weight: 1.2 kg
- Housing material: Aluminum die cast
- Response time: 80 ms
- Protective field range: 3 m
- Warning field range: 8 m (at 15 % reflectivity)
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 16
- Number of fields: 48
- Number of monitoring cases: 32
- Scanning angle: 270
- Resolution (can be configured): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5
- Protective field supplement: 100 mm
- Number of multiple samplings: 2 ... 16, configurable
- Delay of automatic reset: 2 s ... 60 s, configurable
- Dimensions (W x H x D): 102 mm x 152 mm x 106 mm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S30B-3011GB . Santa Clara Systems carries 4,517 items from Sick.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
