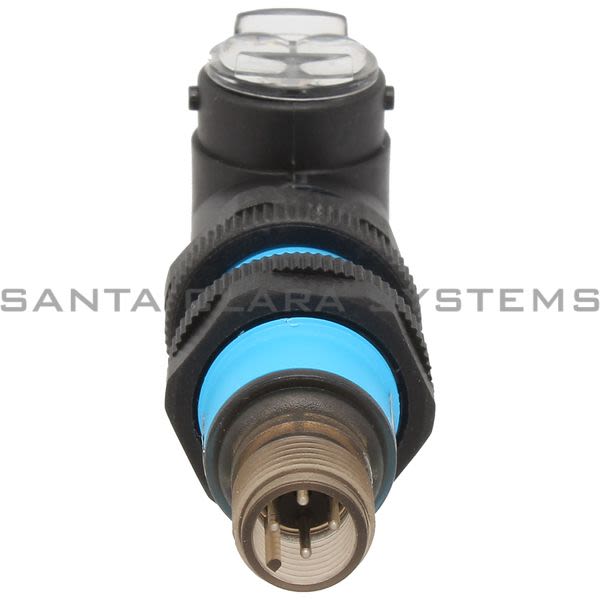

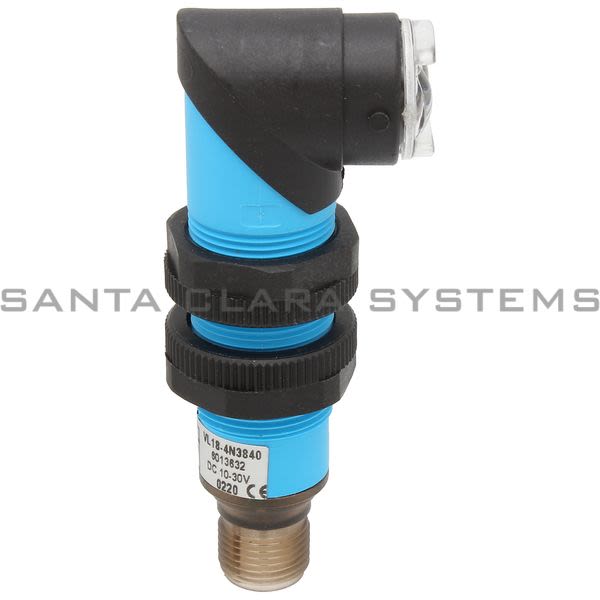

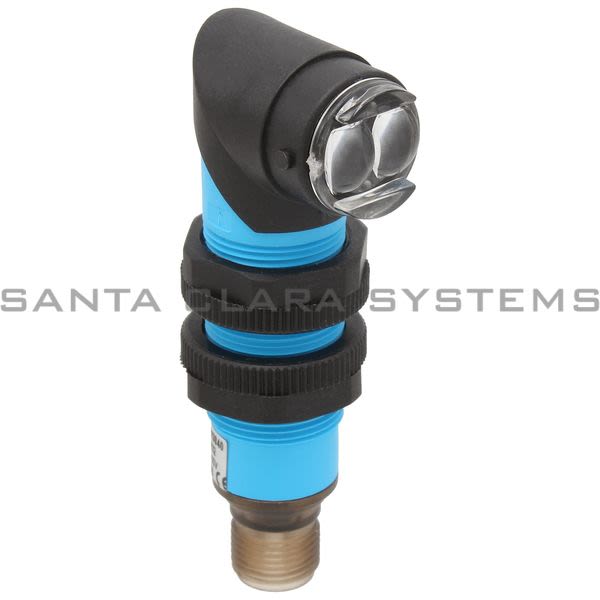

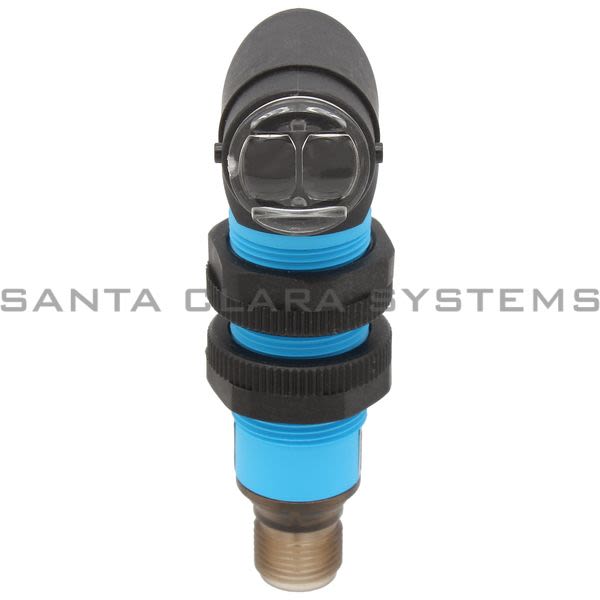

VL18-4N3840

Sick - Photoelectric Sensor

Product Summary:

Connection Type: Male Connector M12, 4-pin
Light Source: LED
Weight: 100 g
Sensing Range: 0.05 m ... 3 m
Supply Voltage: 10 V DC ... 30 V DC

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Photoelectric Sensor
Connection Type: Male Connector M12, 4-pin
Light Source: LED
Weight: 100 g
Sensing Range: 0.05 m ... 3 m
Supply Voltage: 10 V DC ... 30 V DC
Housing Material: Plastic, PBT/PC
Sensor/ Detection Principle: Photoelectric Retro-Reflective Sensor
Housing Design (Light Emission): Cylindrical, Angled
Housing Length: 75 mm

Thread Diameter (Housing): M18 x 1
Optical Axis: Radial
Type of Light: Visible Red Light
Light Spot Size (Distance): Ø 150 mm (3 m)
Angle of Dispersion: Approx. 2.8°
Adjustment: None
Switching Output: NPN
Switching Mode Selector: Selectable via L/D Control Cable
Special Feature: Polarisation Filter
