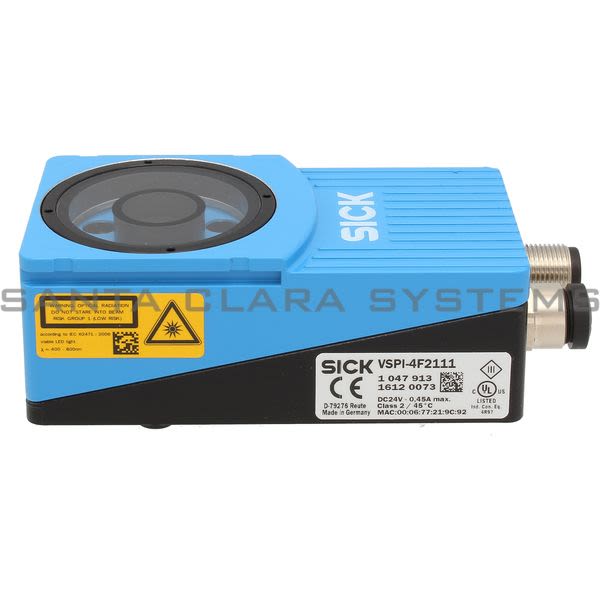

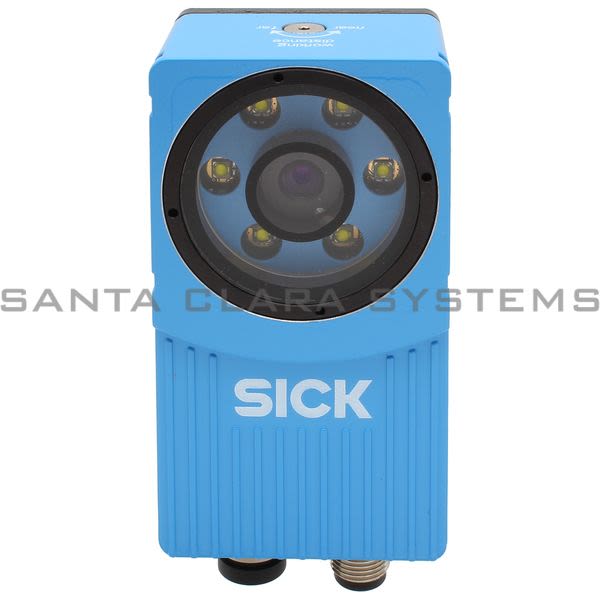

VSPI-4F2111

Sick - Vision Sensor Inspector | 1047913

Current response time:

10 Minutes 23 Seconds

Description: Vision Sensor Inspector | 1047913
Weight: 350 g
Housing Material: Aluminum
Task: Inspection
Technology: 2D, Snapshot, Image Analysis
Focus: Adjustable Focus (Manually)
Spectral Range: Approx. 400 nm ... 750 nm
Offline Support: Emulator

Operating Distance with Internal Illumination: 50 mm ... 200 mm
Focal Length: 10 mm
Field of View of Internal Illumination: 22 mm x 15 mm ... 79 mm x 58 mm
Configurable Outputs: Output by Logical Expressions, Additional Image Storage Possibility via FTP
Configurable Inputs: External Trigger, Encoder Input, External Teach, Reference Object Selection

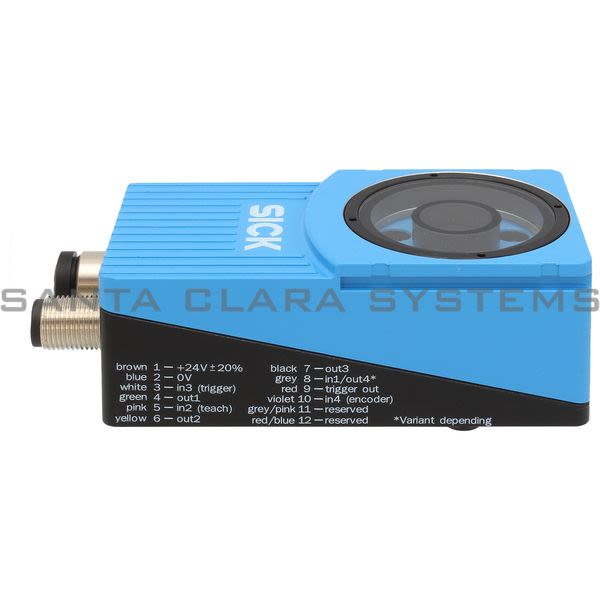

Connections: M12, 12-pin Male Connector / M12, 4-pin Female Connector
Dimensions (L x W x H): 100 mm x 53 mm x 38 mm
Optics: Exchangeable (M12-Mount)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VSPI-4F2111 . Santa Clara Systems carries 4,503 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
