WL100-P4429

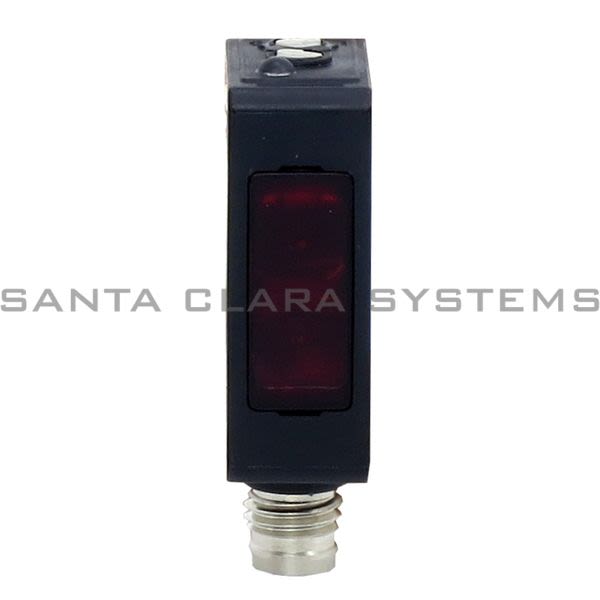

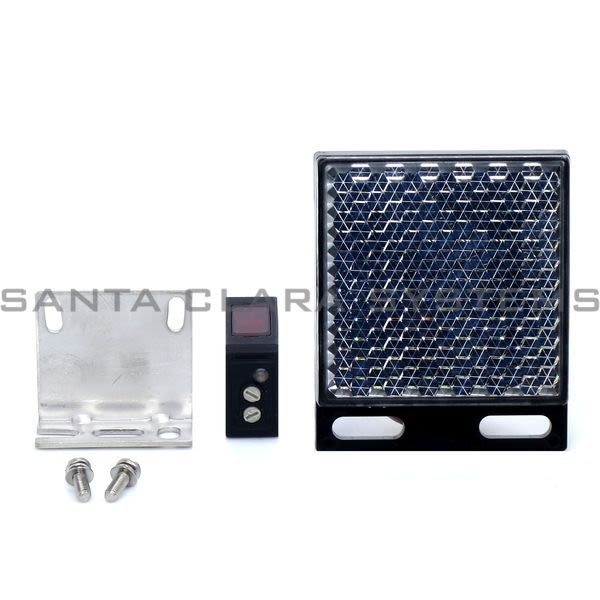

Sick - Photoelectric Retro-Reflective Sensor Standard Optics | 6028611

Product Summary:

Connection Type: Connector M8, 4-pin
Light Source: LED
Sensing Range: 0.01 m ... 2.6 m
Supply Voltage: 10 V DC ... 30 V DC
Switching Frequency: 1,000 Hz

Current response time:

18 Minutes 39 Seconds

Description: Photoelectric Retro-Reflective Sensor Standard Optics | 6028611
Connection Type: Connector M8, 4-pin
Light Source: LED
Sensing Range: 0.01 m ... 2.6 m
Supply Voltage: 10 V DC ... 30 V DC
Switching Frequency: 1,000 Hz
Output Current: 100
Sensor/ Detection Principle: Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D): 11 mm x 31 mm x 20 mm
Housing Design: Rectangular
Sensing Range Max.: 0.01 m ... 3 m

Type of Light: Visible Red Light
Light Spot Size (Distance): Ø 200 mm (2 m)
Angle of Dispersion: Approx. 4°
Wave Length: 680 nm
Adjustment: Potentiometer, 270°
Ripple: ± 10 %
Power Consumption: 30 mA
Switching Output: PNP
Signal Voltage PNP HIGH/LOW: UV - 1,8 V / ca. 0 V
Special Feature: Detecting Transparent Objects
Housing / Optics Material: Plastic

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WL100-P4429 . Santa Clara Systems carries 5,188 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
