WL11-2P2430

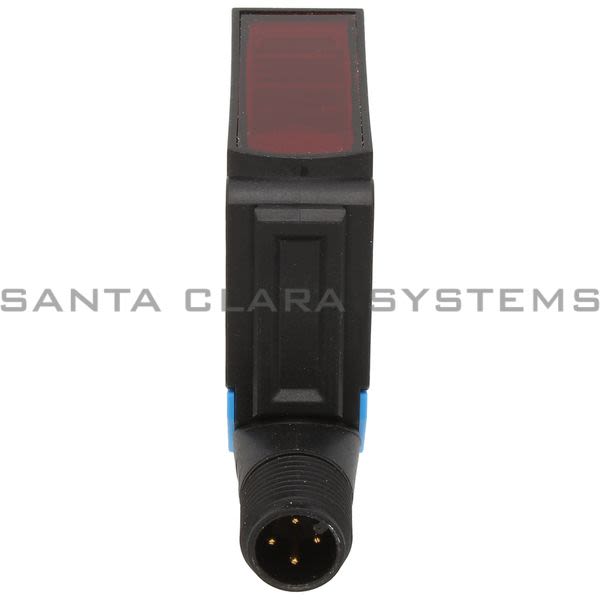

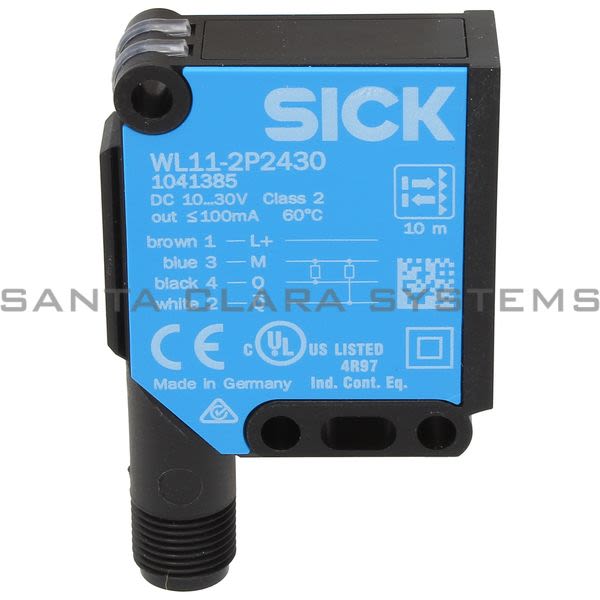

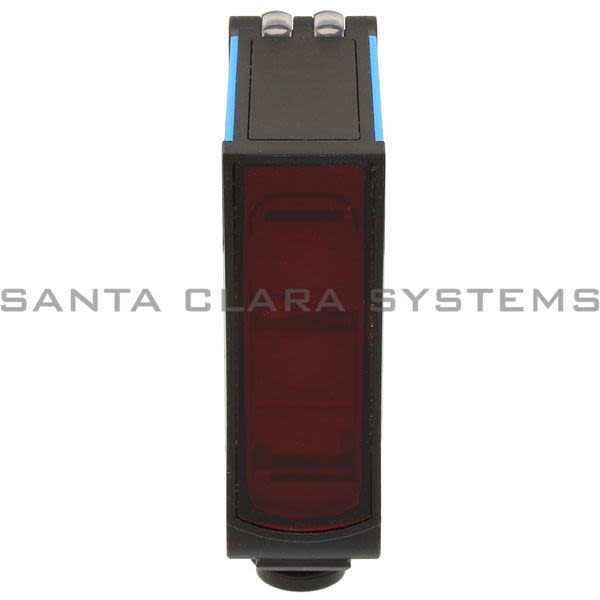

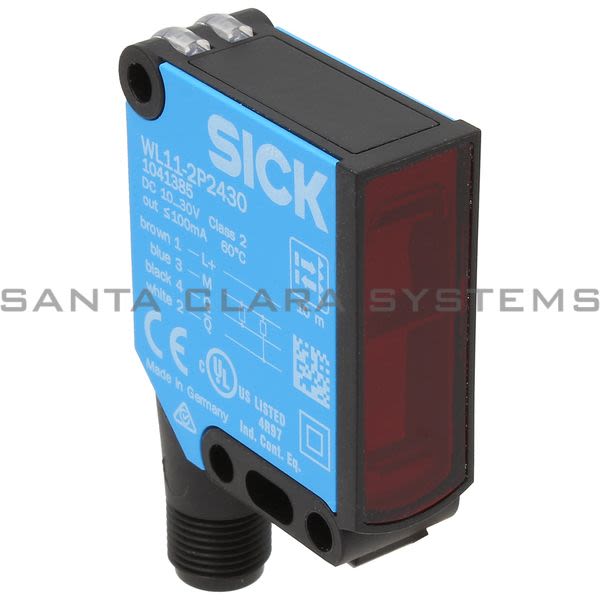

Sick - Photoelectric Retro-Reflective Sensor Standard Optics | 1041385

Product Summary:

Connection Type: Male Connector M12, 4-pin
Light Source: LED
Weight: 120 g
Sensing Range: 0.15 m ... 8 m
Output Function: Complementary

Current response time:

15 Minutes 9 Seconds

Description: Photoelectric Retro-Reflective Sensor Standard Optics | 1041385
Connection Type: Male Connector M12, 4-pin
Light Source: LED
Weight: 120 g
Sensing Range: 0.15 m ... 8 m
Output Function: Complementary
Supply Voltage: 10 V DC ... 30 V DC
Housing Material: Plastic, ABS
Sensor/ Detection Principle: Photoelectric Retro-Reflective Sensor, Dual Lens

Dimensions (W x H x D): 15.6 mm x 48.5 mm x 42 mm
Housing Design (Light Emission): Rectangular
Type of Light: Visible Red Light
Light Spot Size (Distance): Ø 50 mm (3 m)
Angle of Dispersion: Approx. 2.2°
Wave Length: 640 nm
Adjustment: None
Switching Output: PNP
Switching Mode: Light/Dark Switching
