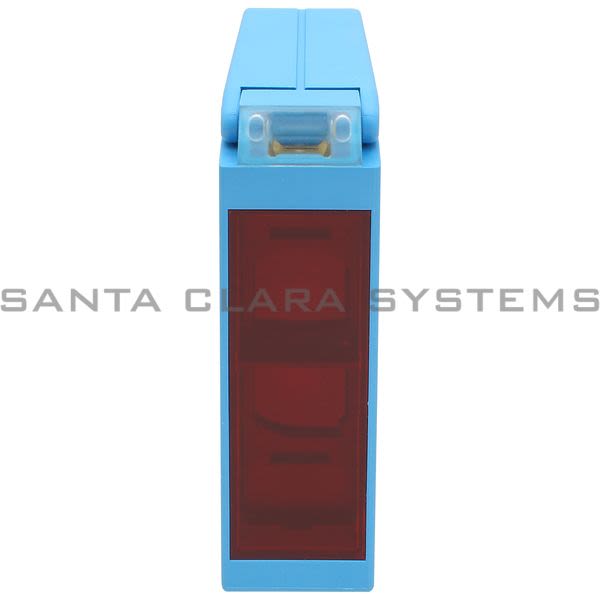

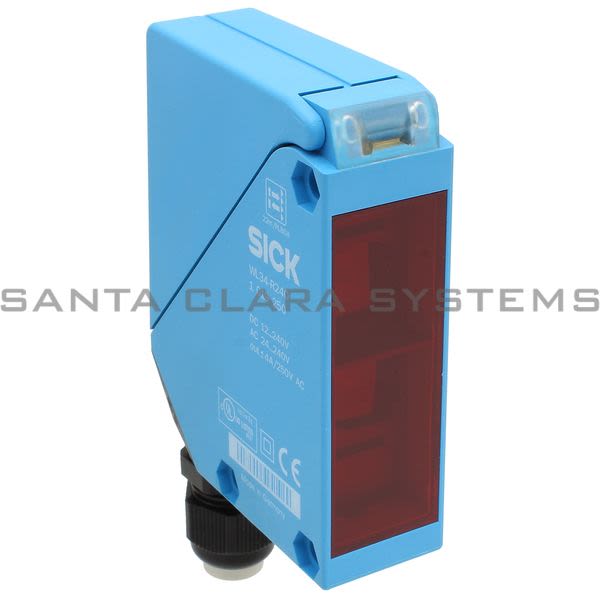

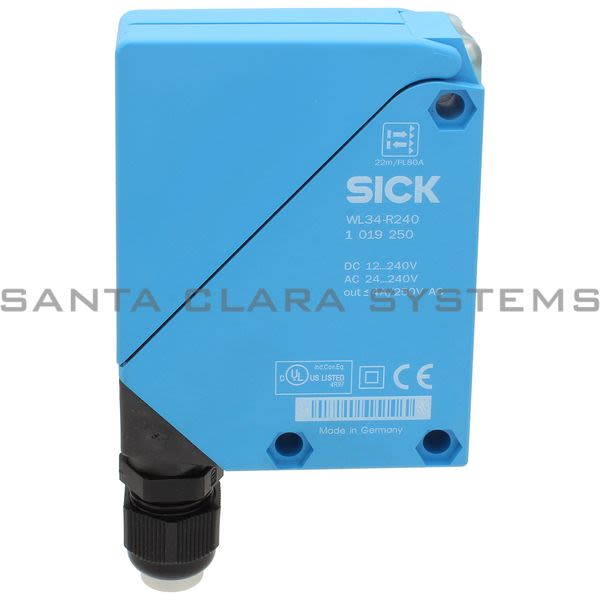

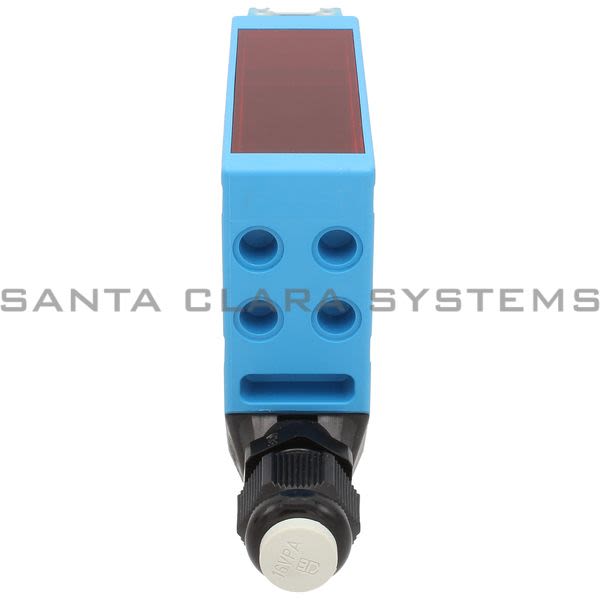

WL34-R240
Product Summary:
- Connection type: Terminal connection with M16 gland
- Light source: LED
- Weight: 140 g
- Sensing range: 0.03 m ... 22 m
- Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens
Get a Quote
Current response time:
4 Minutes 3 Seconds
- Description: Photoelectric Retro-Reflective Sensor | 1019250
- Connection type: Terminal connection with M16 gland
- Light source: LED
- Weight: 140 g
- Sensing range: 0.03 m ... 22 m
- Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens
- Dimensions (W x H x D): 27 mm x 92 mm x 70 mm
- Housing design (light emission): Rectangular
- Sensing range max.: 0.03 m ... 22 m
- Type of light: Visible red light
- Light spot size (distance): Ø 250 mm (15 m)
- Wave length: 660 nm
- Adjustment: Potentiometer
- Time type: Off delay, On delay, Adjustable
- Delay time: Adjustable via time delay selector switch, 0.5 s, 10 s
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WL34-R240 . Santa Clara Systems carries 5,188 items from Sick.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
