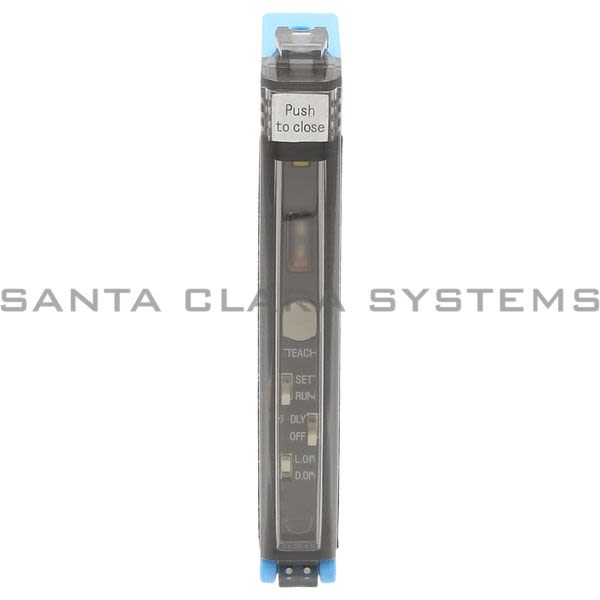

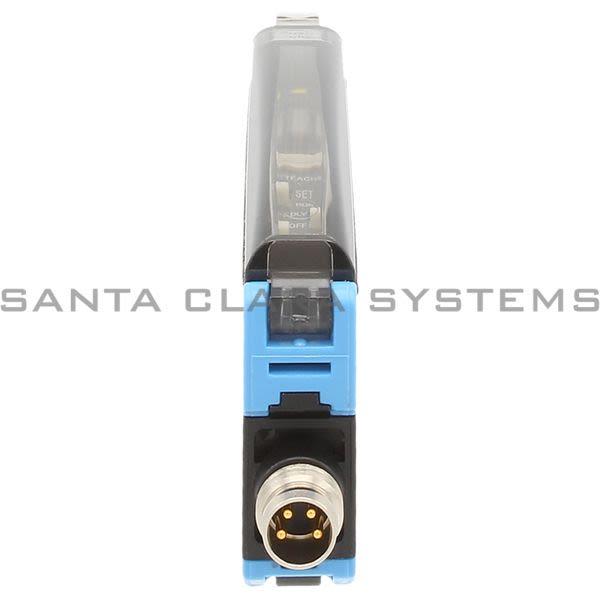

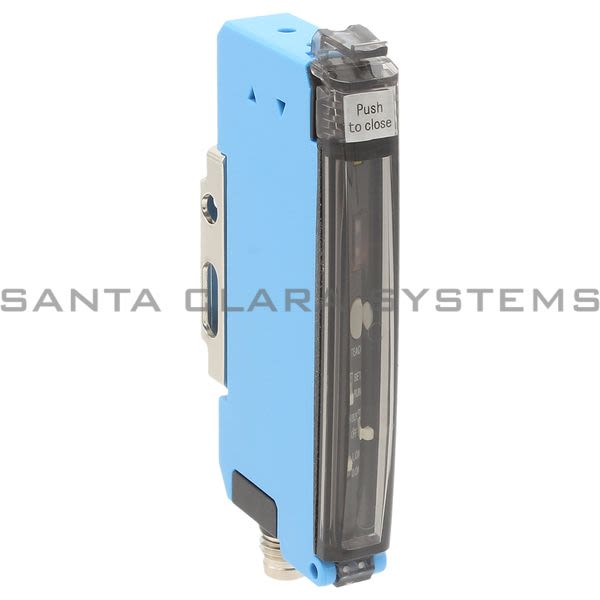

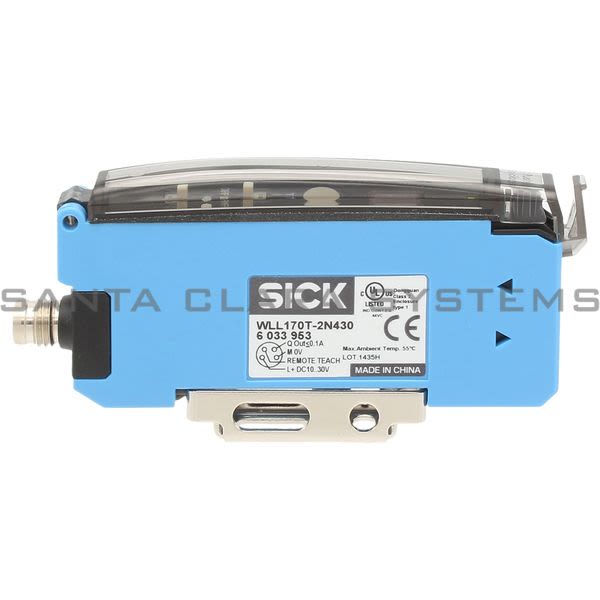

WLL170T-2N430

Sick - Fiber-Optic Sensor | 6033953

Product Summary:

Connection type: Male connector M8, 4-pin
Light source: LED
Weight: 60 g
Sensor/ detection principle: Fiber-optic photoelectric sensor
Dimensions (W x H x D): 10.5 mm x 35.5 mm x 83.7 mm

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Fiber-Optic Sensor | 6033953
Connection type: Male connector M8, 4-pin
Light source: LED
Weight: 60 g
Sensing range: 0 mm ... 160 mm, Proximity system, 0 ... 700 mm, Through-beam system
Sensor/ detection principle: Fiber-optic photoelectric sensor
Dimensions (W x H x D): 10.5 mm x 35.5 mm x 83.7 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 mm ... 3,500 mm, Through-beam system

Type of light: Visible red light
Angle of dispersion: Approx. 65°
Wave length: 660 nm
Adjustment: Single teach-in button, Cable
Time type: Off delay
Delay time: Selectable by sliding switch, 40 ms
Indication: LED
Switching output: NPN
Items supplied: BEF-WLL170 mounting bracket

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WLL170T-2N430 . Santa Clara Systems carries 5,188 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
