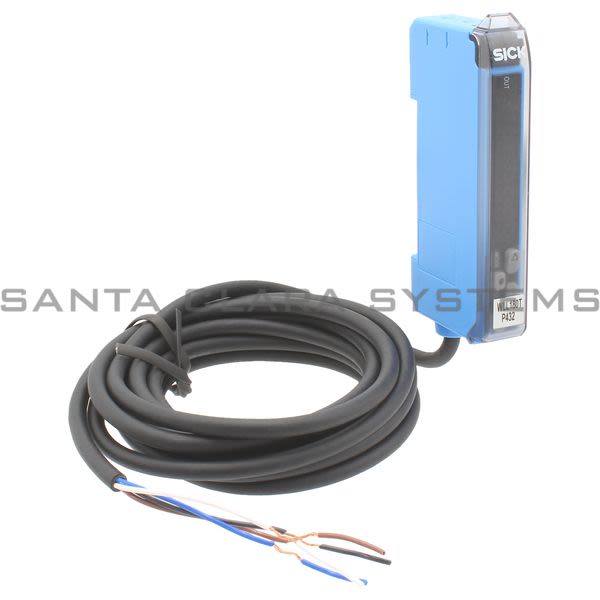

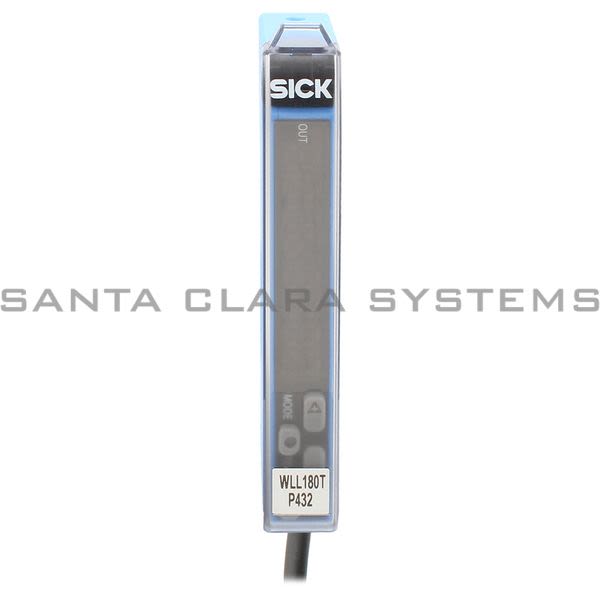

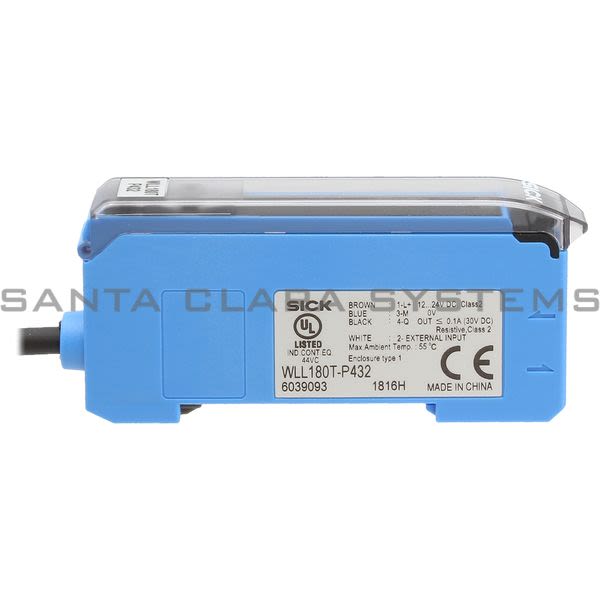

WLL180T-P432

Sick - Fiber-Optic Photoelectric Sensor | 6039093

Current response time:

By 5AM PT on Monday

Emergency?

Description: Fiber-Optic Photoelectric Sensor | 6039093

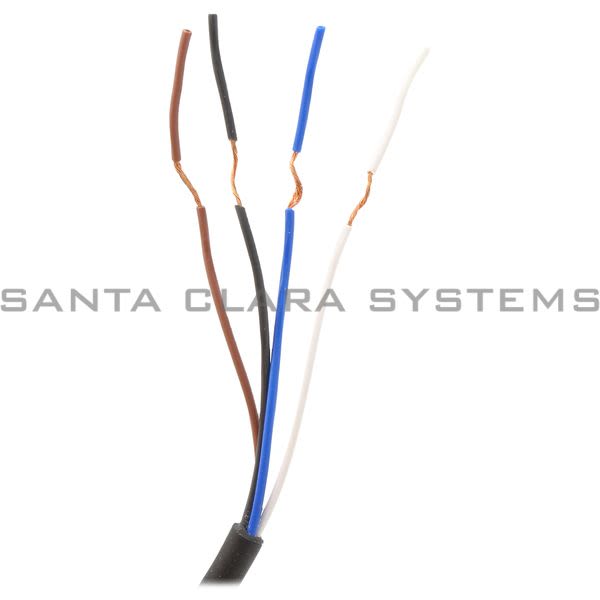

Connection type: Cable, 4-wire, 2 m
Light source: LED
Weight: 25 g
Device type: Stand-alone
Dimensions (W x H x D): 10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission): Rectangular
Sensing range max.: 0 m ... 20 m, Through-beam system
Type of light: Visible red light

Angle of dispersion: Approx. 65
Wave length: 650 nm
Adjustment: Menu-controlled, Single teach-in button, Cable
Time type: Without time delay, Off delay, On delay, ON and OFF delay, One shot
Delay time: Programmable, 0 ms, 9,999 ms
Indication: Display
Display: LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
Items supplied: BEF-WLL180 mounting bracket

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WLL180T-P432 . Santa Clara Systems carries 4,523 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
