WLL2000-B4300

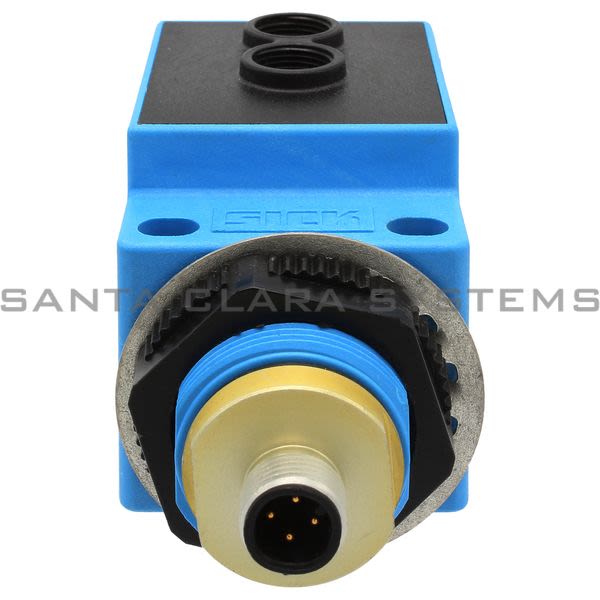

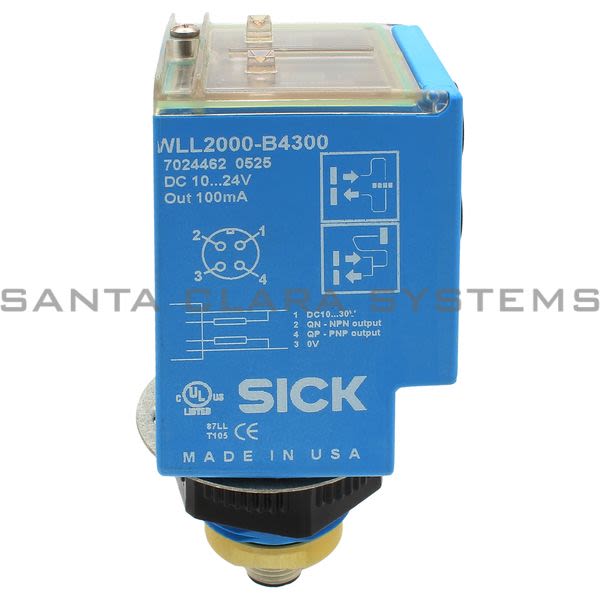

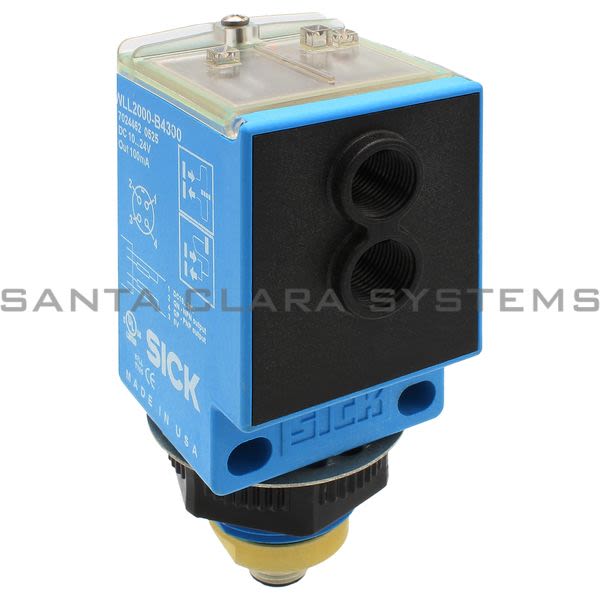

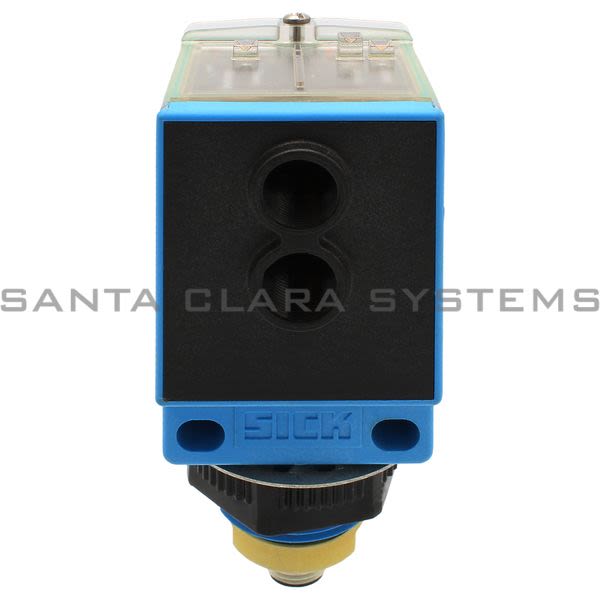

Sick - Photoelectric Fiber-Optic Sensor | 7024462

Product Summary:

Connection Type: Male Connector M12, 4-Pin
Weight: 150 g
Supply Voltage: 10 V DC ... 30 V DC
Switching Frequency: 500 Hz
Output Type: PNP

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Photoelectric Fiber-Optic Sensor | 7024462
Connection Type: Male Connector M12, 4-Pin
Weight: 150 g
Supply Voltage: 10 V DC ... 30 V DC
Switching Frequency: 500 Hz
Output Type: PNP
Response Time: 1 ms
Dimensions (W x H x D): 45 mm x 73.5 mm x 48.6 mm
Housing Design (Light Emission): Rectangular

Sensing Range Max.: Depends on Fiber
Type of Light: Visible Red Light
Time Type: Off Delay
Delay Time: 0 ms 5 ms 10 ms 20 ms 50 ms
Switching Mode: Light/Dark Switching
Switching Mode Selector: Selectable Via Light/Dark Selector
Ambient Operating Temperature: 25 °C ... +40 °C
Ambient Storage Temperature: 40 °C ... +70 °C

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WLL2000-B4300 . Santa Clara Systems carries 5,188 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
