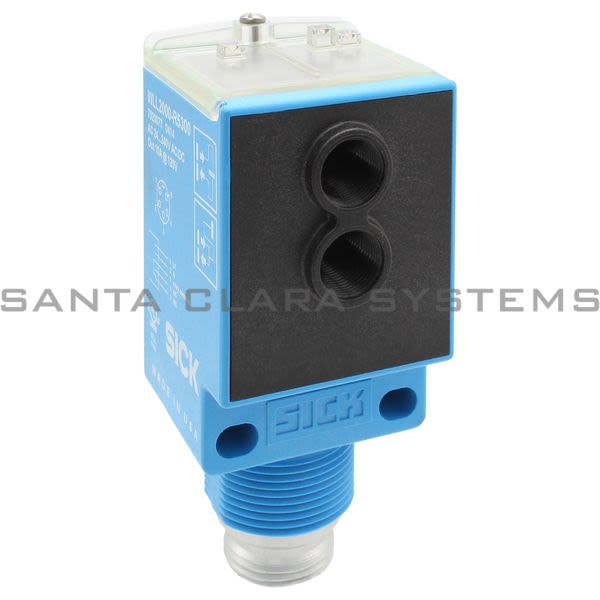

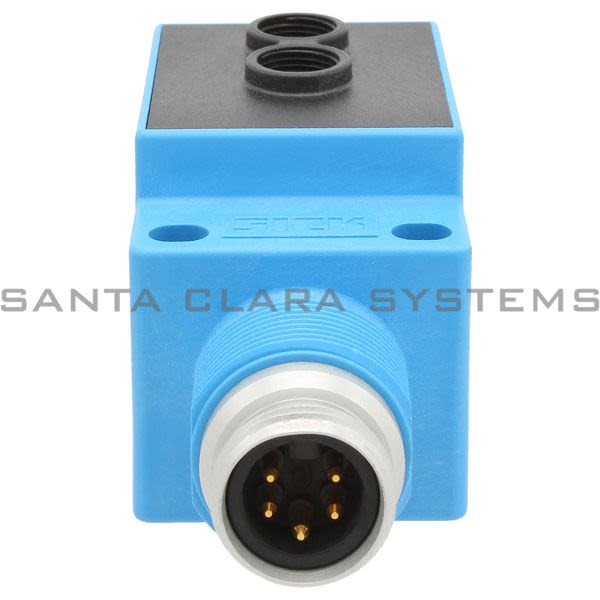

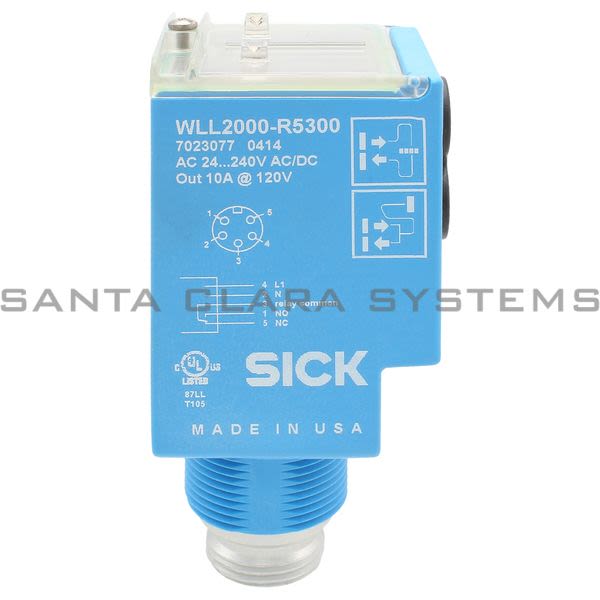

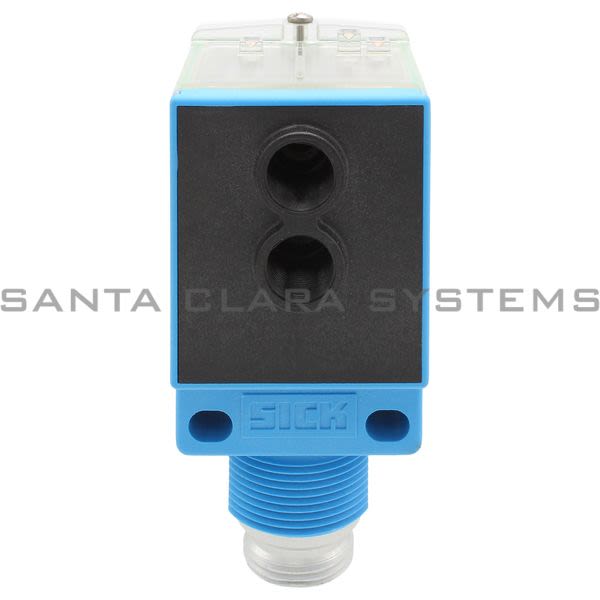

WLL2000-R5300

Sick - Photoelectric Sensor | 7023077

Product Summary:

Connection type: Mini connector 7/8", 5-pin
Weight: 150 g
Supply voltage: 24 V AC/DC ... 240 V AC/DC 1)
Housing material: Plastic, Glassfibre reinforced plastic
Switching frequency: 10 Hz 4)

Current response time:

8 Minutes 22 Seconds

Description: Photoelectric Sensor | 7023077
Connection type: Mini connector 7/8", 5-pin
Weight: 150 g
Supply voltage: 24 V AC/DC ... 240 V AC/DC 1)
Housing material: Plastic, Glassfibre reinforced plastic
Switching frequency: 10 Hz 4)
Response time: ≤ 10 ms 3)
Power consumption: 3 A

Switching output: Relay, electrically isolated
Switching mode: Light/dark switching
Switching mode selector: Selectable via light/dark selector
Protection class: II 5)
Enclosure rating: IP67
Ambient operating temperature: –25 °C ... +40 °C
Ambient storage temperature: –40 °C ... +70 °C
UL File No.: 242366 & cUL No. NRKH7.E147756

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WLL2000-R5300 . Santa Clara Systems carries 5,188 items from Sick.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
