WTB9-3P3161
Product Summary:

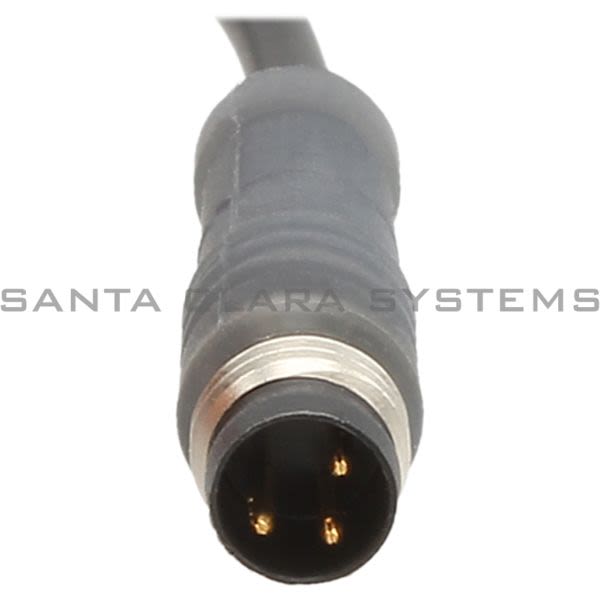

- Connection type: Cable with connector M8, 3-pin, 120 mm
- Light source: PinPoint LED
- Weight: 80 g
- Sensing range: 20 mm ... 200 mm
- Mounting hole: M3

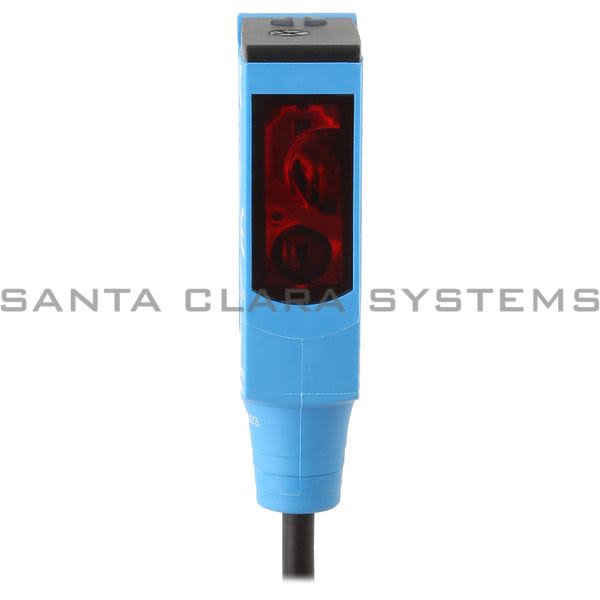

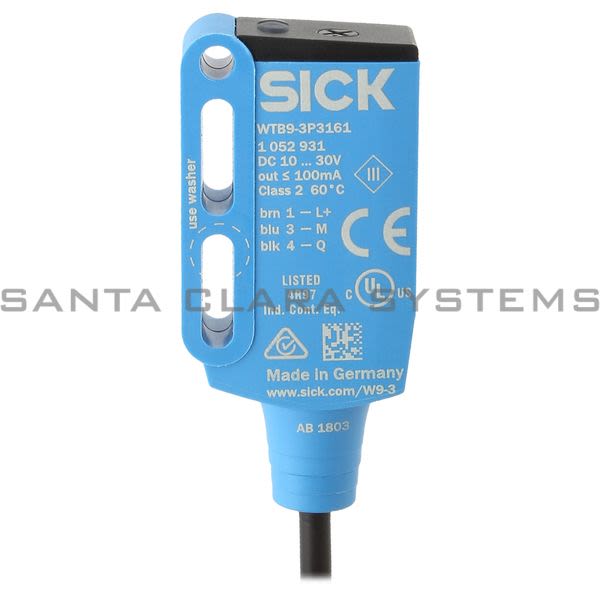

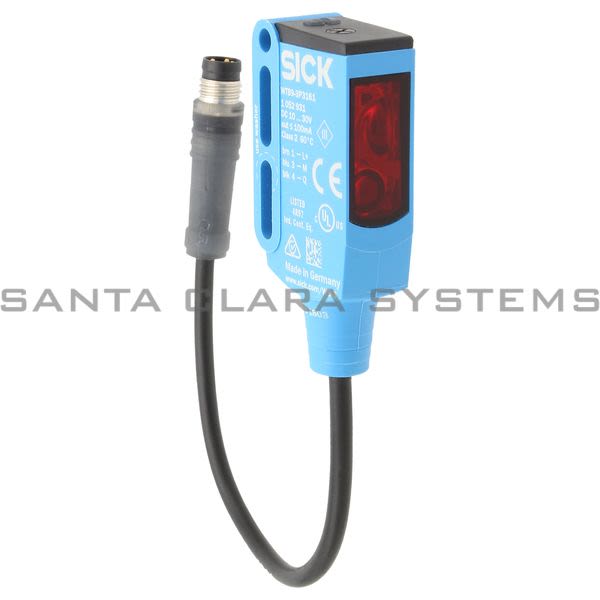

- Description: Photoelectric Sensor | 1052931
- Connection type: Cable with connector M8, 3-pin, 120 mm
- Light source: PinPoint LED
- Weight: 80 g
- Sensing range: 20 mm ... 200 mm
- Mounting hole: M3
- Sensor/ detection principle: Photoelectric proximity sensor, Background suppression
- Dimensions (W x H x D): 12.2 mm x 50 mm x 23.6 mm
- Housing design (light emission): Rectangular
- Sensing range max.: 20 mm ... 350 mm
- Type of light: Visible red light
- Light spot size (distance): Ø 4.5 mm (75 mm)
- Wave length: 650 nm
- Adjustment: Potentiometer, 5 turns
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WTB9-3P3161 . Santa Clara Systems carries 5,188 items from Sick.
