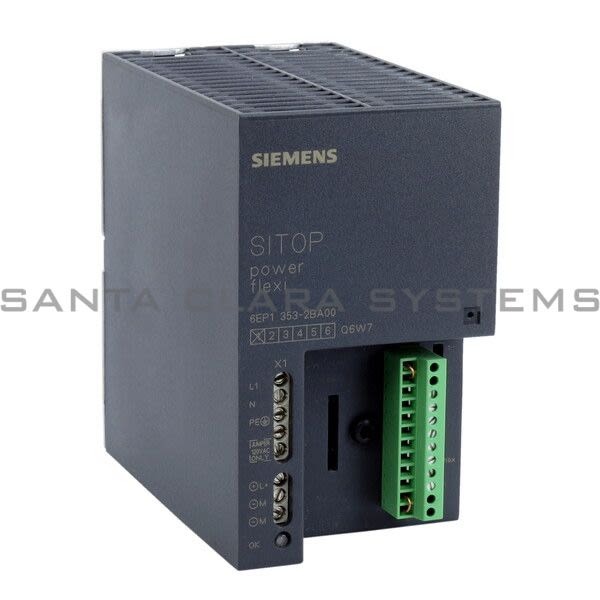

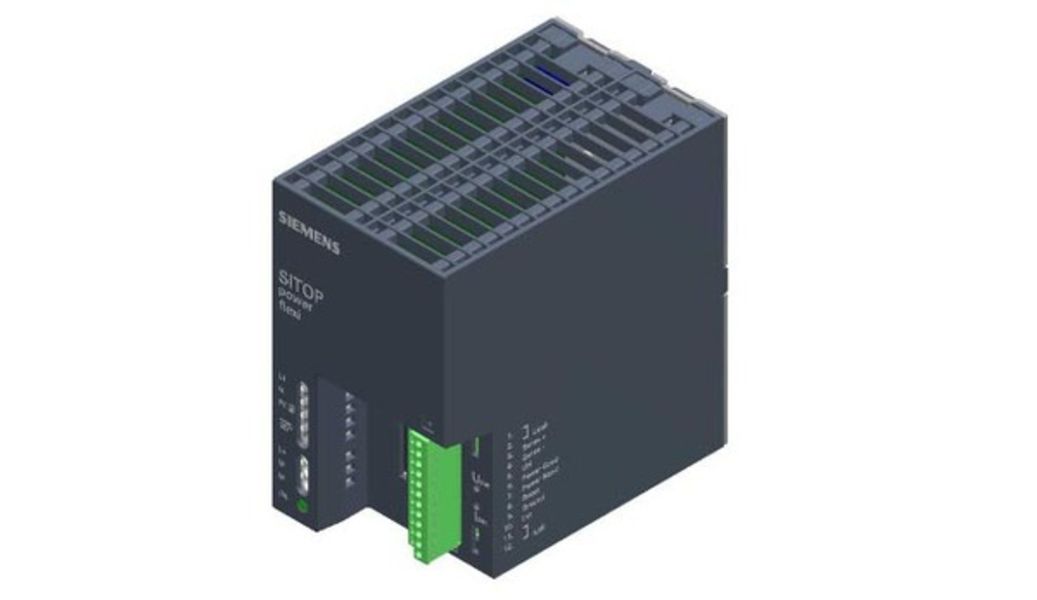

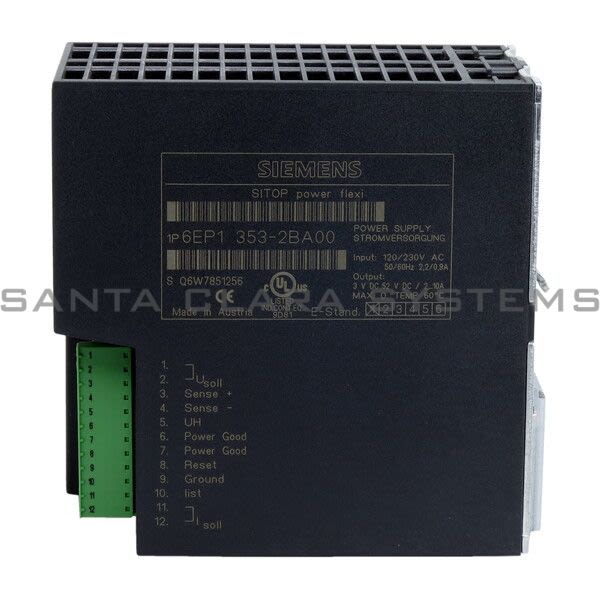

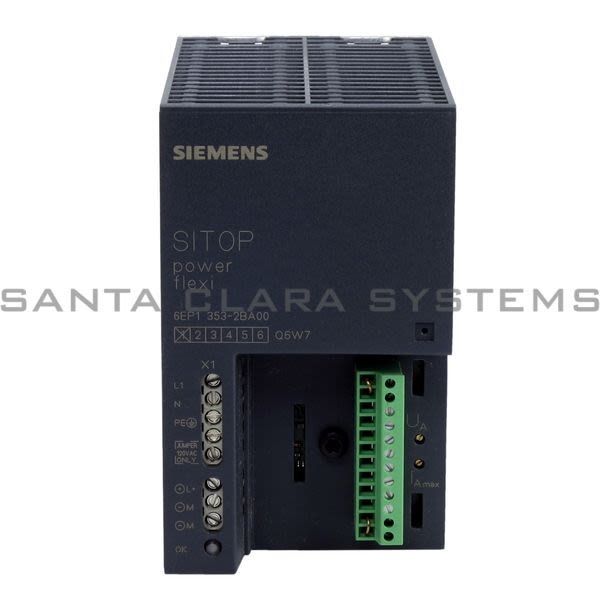

- Description: Power Supply | SITOP Flexi | 6EP1353-2BA00
- Metal Factor: None
- Net Weight (lb): 1.984 lb
- UPC: 754554738918
- Product Group: 4207
- Country of origin: Austria
- Returnable: Yes
- Output: Controlled, isolated DC voltage
- Input: 1-phase AC
- Supply voltage - 1 at AC Rated value: 120V
- Supply voltage - 2 at AC Rated value: 230V
- Rated voltage value Vin rated: 120-230 V
- Input voltage - 1 at AC: 85-132 V
- Input voltage - 2 at AC: 170-264 V
- Overvoltage resistance: 2.3 Vin rated, 1.3 ms
- Mains buffering at Iout rated, min.: 10ms; at Pout = 120 W and Vin = 93/187 V
- Rated line frequency 1: 50Hz
- Rated line frequency 2: 60Hz
- Rated line range: 47...63Hz
- Input current at rated input voltage 120 V: 2.2A
- Input current at rated input voltage 230 V: 0.9A
- Switch-on current limiting (+25 C), max.: 32A
- It, max.: 0.8As
- Built-in incoming fuse: T 3,15 A/250 V (not accessible)
- Protection in the mains power input (IEC 898): Recommended miniature circuit breaker: from 6 A characteristic C
- Rated voltage Vout DC: 24V
- Output voltage: 3-52 V DC
- Total tolerance, static : 1%
- Static mains compensation, approx: 0.1%
- Static load balancing, approx.: 0.2%
- Sense line connection max. voltage control per line: 0.5V
- Residual ripple peak-peak, max.: 50mV
- Residual ripple peak-peak, typ.: 20mV
- Spikes peak-peak, max. (bandwidth: 20 MHz): 100mV
- Spikes peak-peak, typ. (bandwidth: 20 MHz): 80mV
- Adjustment range: 3...52V
- Output voltage setting: via potentiometer or analog current voltage signal 0 ... 2.5 V
- Startup delay, max.: 3s
- Voltage rise, typ.: 80ms
- Article Number (Market Facing Number): 6EP13532BA00 | 6EP13532BA00
- Product Lifecycle (PLM): PM300:Active Product
- Price Group: 684
- Export Control Regulations: AL : N / ECCN : N
- Product Dimensions (W x L x H): Not available
- Packaging Dimension: 5.512 x 5.512 x 3.543
- Package size unit of measure: in
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- EAN: 4025515150466
- Commodity Code: 85044090
- LKZ_FDB/ CatalogID: KT10-PE
- RoHS Compliance: Since: 08/01/2006
- Obligation Category for taking back electrical and electronic equipment after use: No obligation to take back electrical and electronic equipment after use
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 6EP1353-2BA00 . Santa Clara Systems carries 33,373 items from Siemens.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
