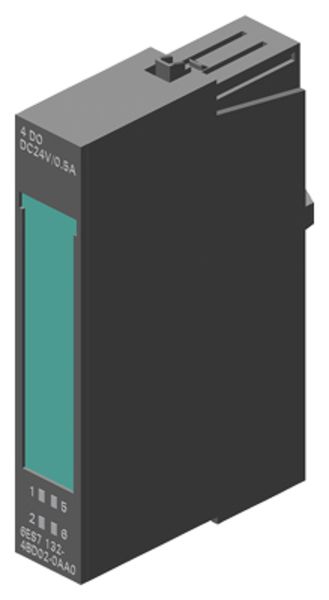

  • Siemens 6ES7132-4BD02-0AA0 Digital Input Module | SIMATIC | 6ES7132-4BD02-0AA0 Product Image

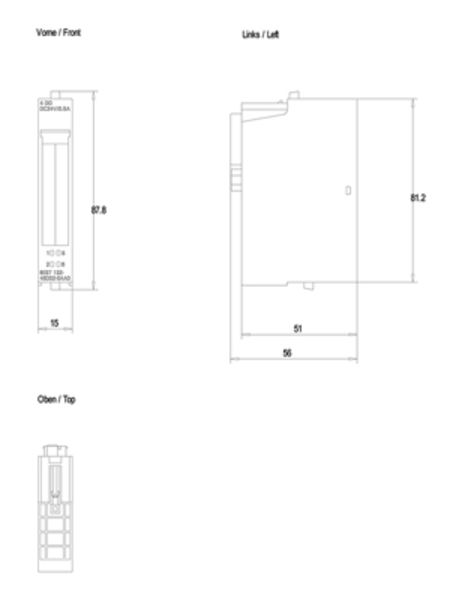

  • Siemens 6ES7132-4BD02-0AA0 Digital Input Module | SIMATIC | 6ES7132-4BD02-0AA0 Product Image
  • Siemens 6ES7132-4BD02-0AA0 Barcode

6ES7132-4BD02-0AA0

Product Summary:

  • Load Voltage Rated Value: Rated value (DC)
  • Input current from load voltage L+ (without load), max.: 10mA; Per channel
  • Input current from backplane bus 3.3 V DC, max.: 10mA
  • Power loss, typ.: 0.8 W
  • Address space per module with packing: 4 bit
Get a Quote
           or
  • Description: Digital Input Module | SIMATIC | 6ES7132-4BD02-0AA0
  • Output voltage for signal "1", min.: L+ (-1 V)
  • Output current for signal "1" rated value: 0.5A
  • Output current for signal "1" permissible range, min.: 7mA
  • Output current for signal "1" permissible range, max.: 600mA
  • Output current for signal "0" residual current, max.: 0.3mA
  • Output delay with resistive load "0" to "1", max.: 50s
  • Output delay with resistive load "1" to "0", max: 120s
  • Reverse voltage protection: Yes; when using the same load voltage as on the power module
  • Load Voltage Rated Value: Rated value (DC)
  • Reverse polarity protection: Yes; polarity reversal can lead to the digital outputs being connected through
  • Input current from load voltage L+ (without load), max.: 10mA; Per channel
  • Input current from backplane bus 3.3 V DC, max.: 10mA
  • Power loss, typ.: 0.8 W
  • Address space per module with packing: 4 bit
  • Address space per module without packing: 1 byte
  • Number of digital outputs: 4
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 6ES7132-4BD02-0AA0. Santa Clara Systems carries 10,993 items from Siemens.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
