9001-K53J1FA

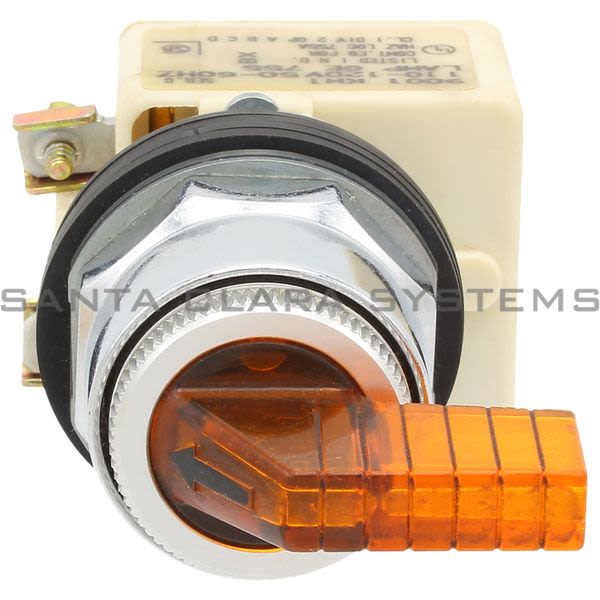

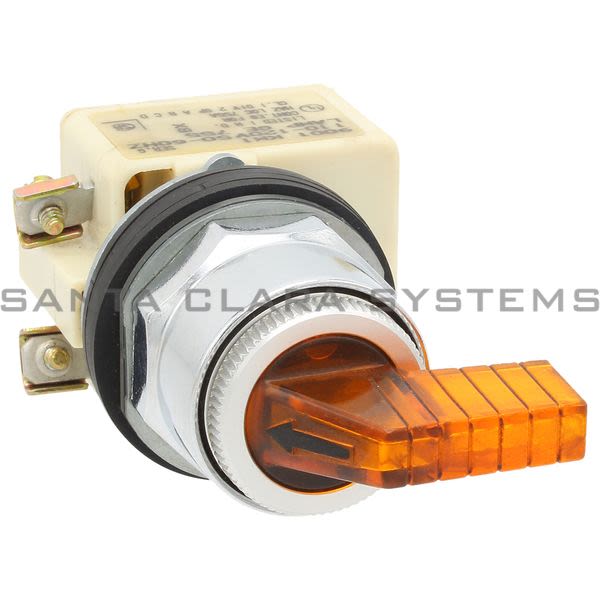

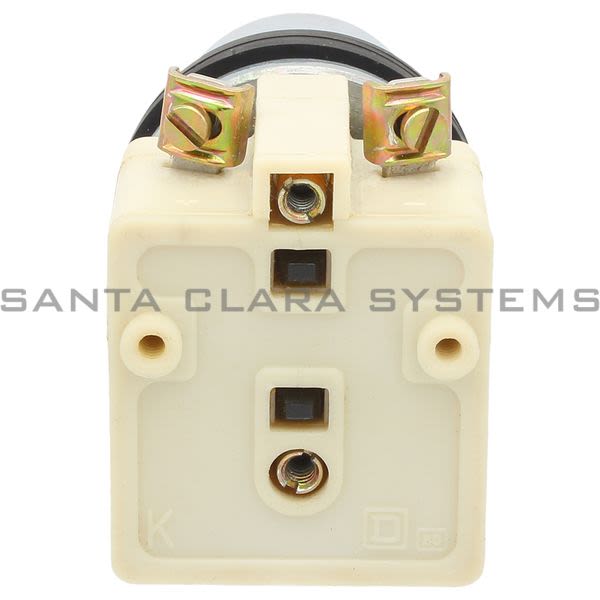

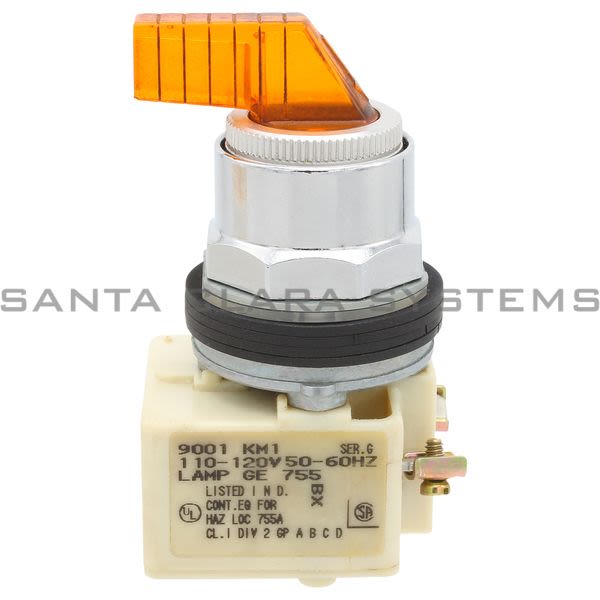

Square D - Illuminated Selector Switch

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Illuminated Selector Switch
Bezel material: Chromium plated metal
Product or component type: Illuminated selector switch
Device short name: 9001K
Type of operator: Spring return (both sides to centre)
Operator profile: Gloved hand knob amber
Mounting diameter: 30 mm
Product weight: 0.245 kg
Shape of signaling unit head: Round
Operator position information: 3 positions
Contacts type and composition: Without contact block
Mechanical durability: 500000 cycles

Light block supply: Via integral transformer
Light source: Incandescent
Bulb base: BA 9s
[Us] rated supply voltage: 110...120 V AC 50/60 Hz
Device presentation: Basic element
Protective treatment: TC
Ambient air temperature for storage: -40...70 �C
Ambient air temperature for operation: -25...70 �C
Electrical shock protection class: Class II conforming to IEC 61140
IP degree of protection: IP66 conforming to IEC 60529
Product certifications: "NEMA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-K53J1FA . Santa Clara Systems carries 5,608 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
