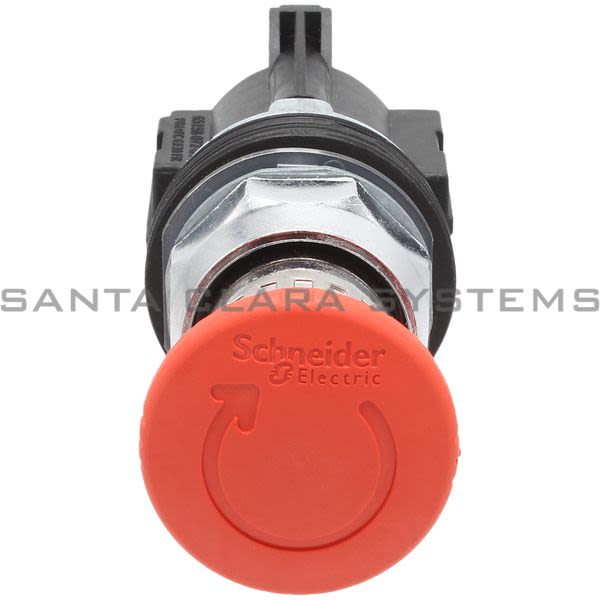

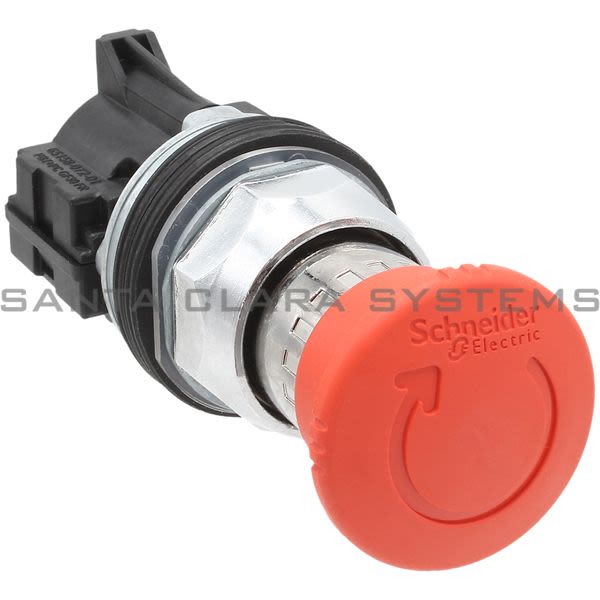

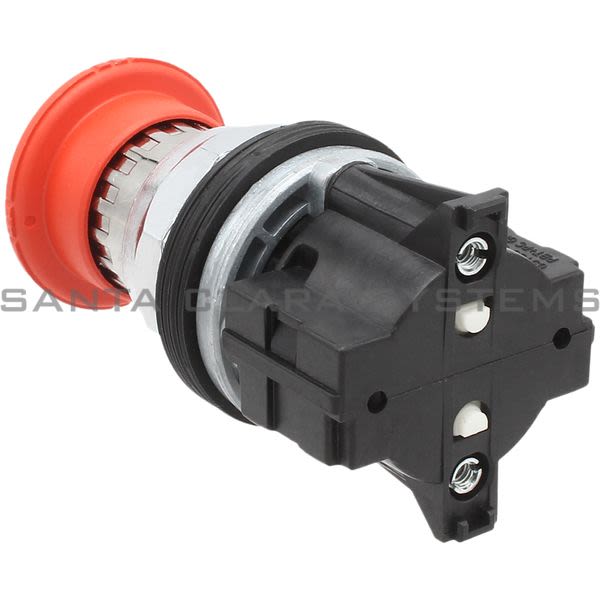

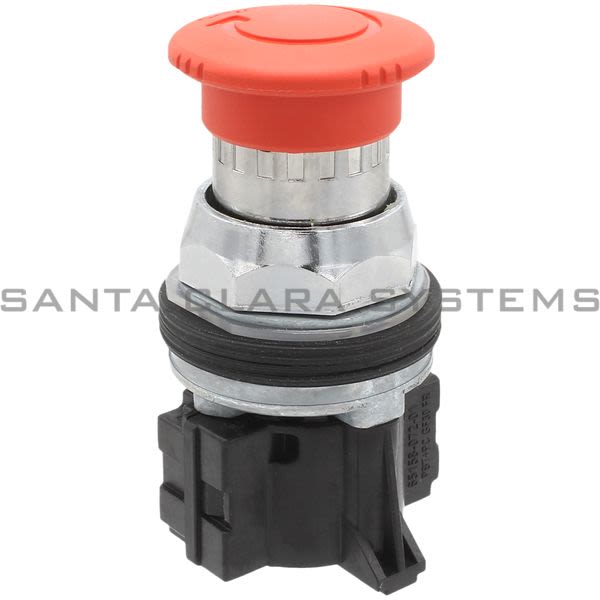

9001-KR16

Square D - Pushbutton

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton
Bezel material: Chromium plated metal
Product or component type: Emergency stop push-button
Product compatibility: Contact block 9001KA
Device short name: 9001K
Type of operator: Trigger action (turn to release)
Operator profile: Red mushroom � 40 mm unmarked
Mounting diameter: 30 mm
CAD overall width: 40 mm
CAD overall height: 40 mm
CAD overall depth: 116 mm
Product weight: 0.141 kg
Operating position: Any position

Shape of signaling unit head: Round
Head material: Plastic
Operator position information: 2 positions
Contacts type and composition: Without contact block
Mechanical durability: 5000000 cycles
Device presentation: Basic element
Protective treatment: TC
Ambient air temperature for storage: -40...70 �C
Ambient air temperature for operation: -25...70 �C
Overvoltage category: Class II conforming to IEC 61140
IP degree of protection: IP66 conforming to IEC 60529
Product certifications: "NEMA
