9001-KS53FB

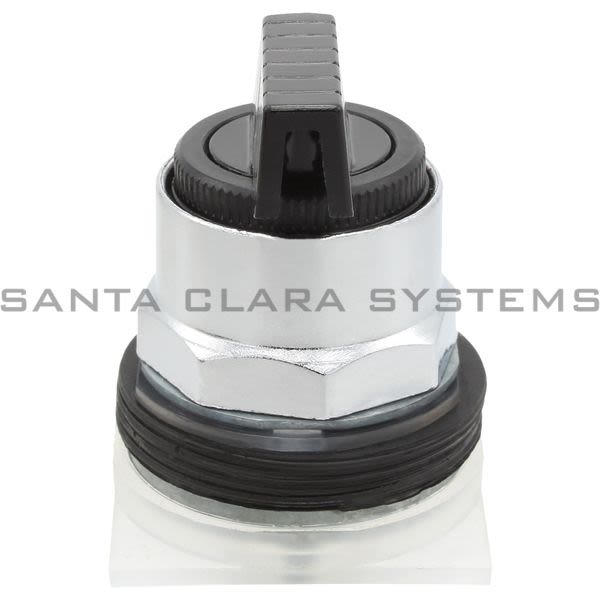

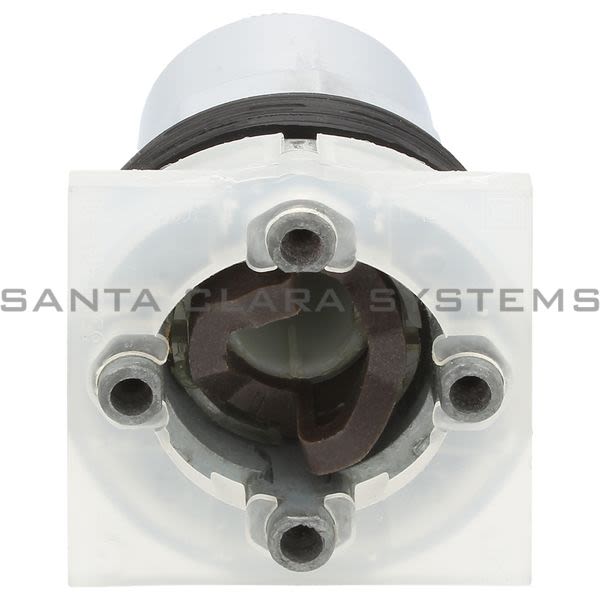

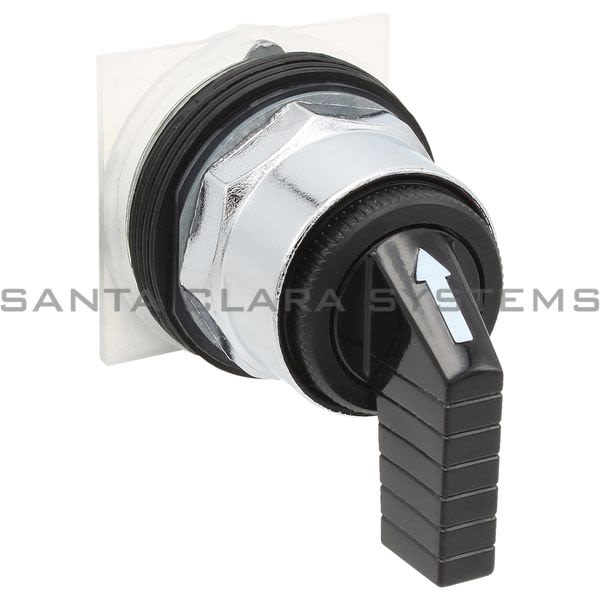

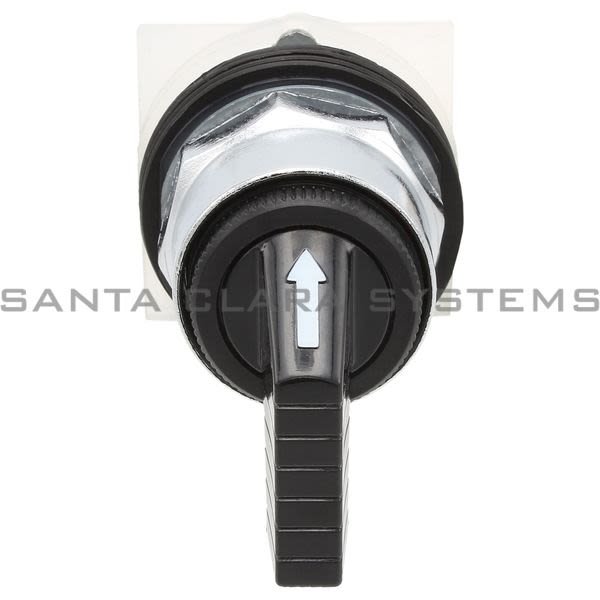

Square D - Selector Switch

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Selector Switch
Bezel material: Chromium plated metal
Product or component type: Selector switch
Device short name: 9001K
Type of operator: Spring return (to centre)
Operator profile: Black long handle
Mounting diameter: 30 mm
Product weight: 0.172 kg
Shape of signaling unit head: Octagonal
Operator position information: 3 positions

Contacts type and composition: Without contact block
Mechanical durability: 500000 cycles
Product compatibility: 9001KA1, mounting on side 1 or 2
Device presentation: Basic element
Protective treatment: TC
Ambient air temperature for storage: -40...70 C
Ambient air temperature for operation: -25...70 C
Overvoltage category: Class II conforming to IEC 61140
IP degree of protection: IP66 conforming to IEC 60529
Product certifications: "NEMA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-KS53FB . Santa Clara Systems carries 5,463 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
