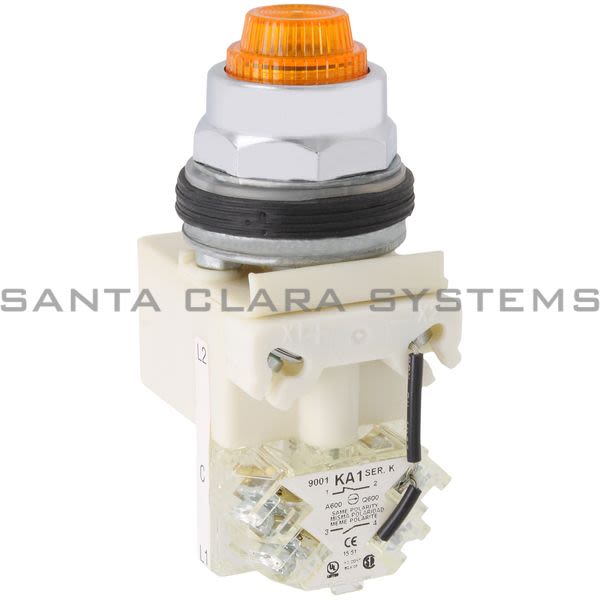

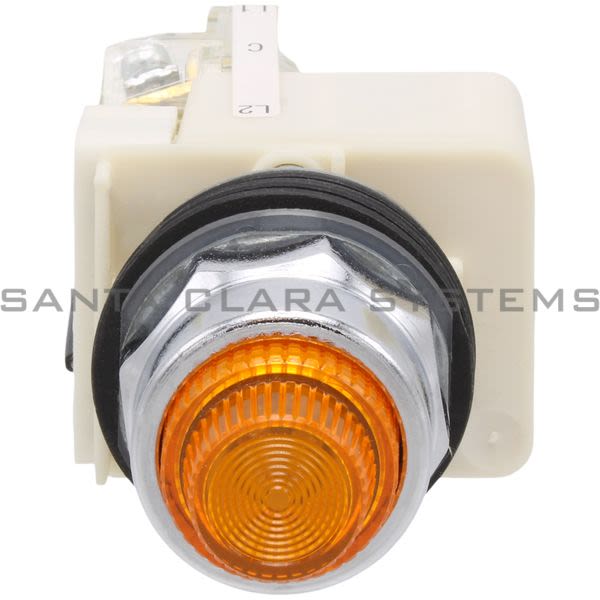

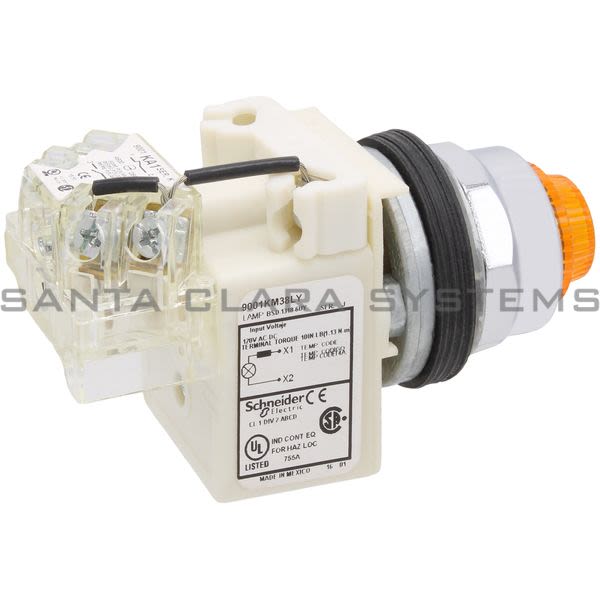

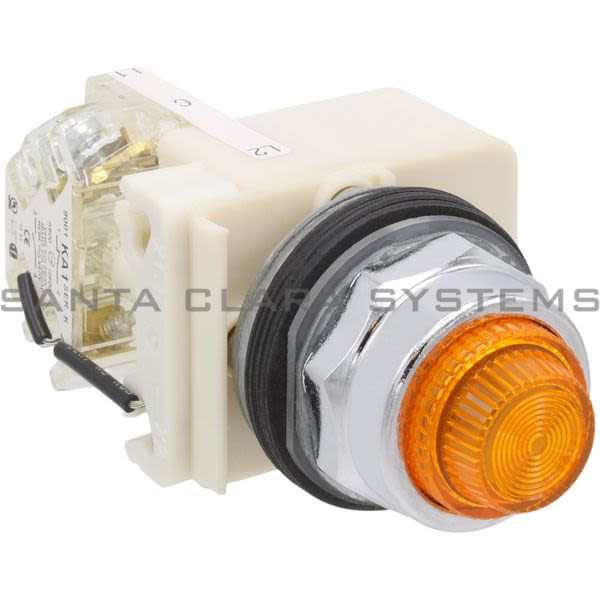

9001-KT38LYA31

Square D - Pilot Light

Current response time:

18 Minutes 41 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pilot Light
Bezel material: Chromium plated metal
Product or component type: Illuminated push to test push-button
Device short name: 9001K
Type of operator: Spring return
Operator profile: Amber projecting unmarked
Mounting diameter: 30 mm
Shape of signaling unit head: Octagonal
Light source: LED
Bulb base: BA 9s
Light block supply: Direct
[Us] rated supply voltage: 120 V AC/DC
Contacts type and composition: 1 NO
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm�) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1

Shape of screw head: Cross slotted
Mechanical durability: 5000000 cycles
Operating position: Any position
[Ie] rated operational current: 0.55 A at 125 V (DC-13) A600-Q600 conforming to NEMA
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Contacts material: Silver alloy contacts
Contact operation: Standard
Positive opening: Without
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
Product weight: 0.235 kg
Device presentation: Complete product
Product certifications: "NEMA
