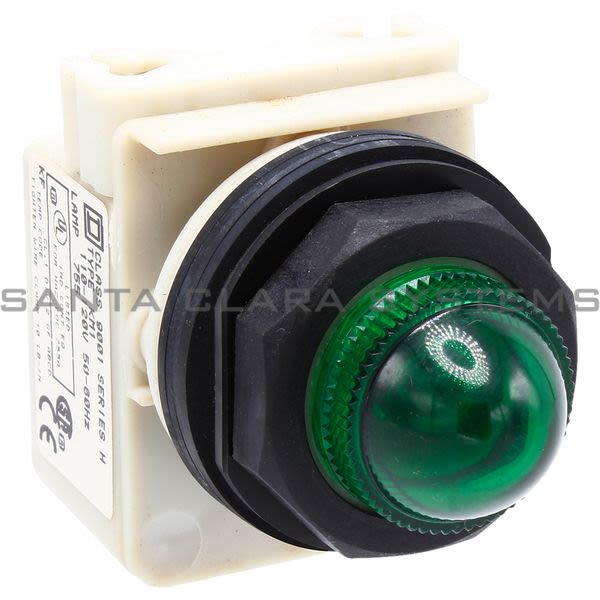

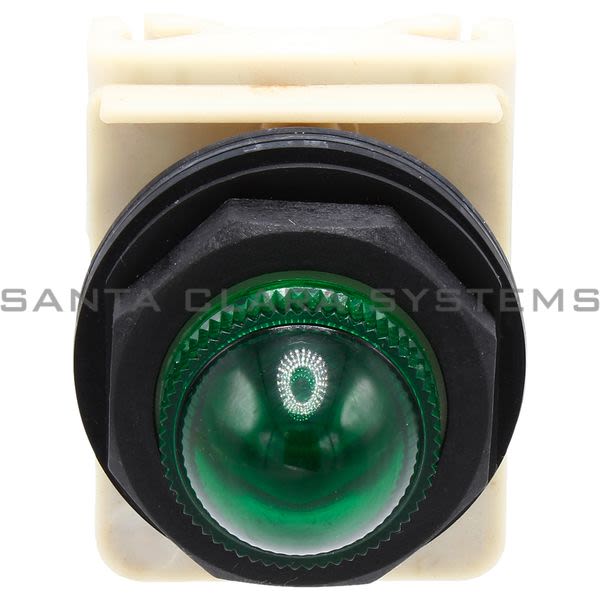

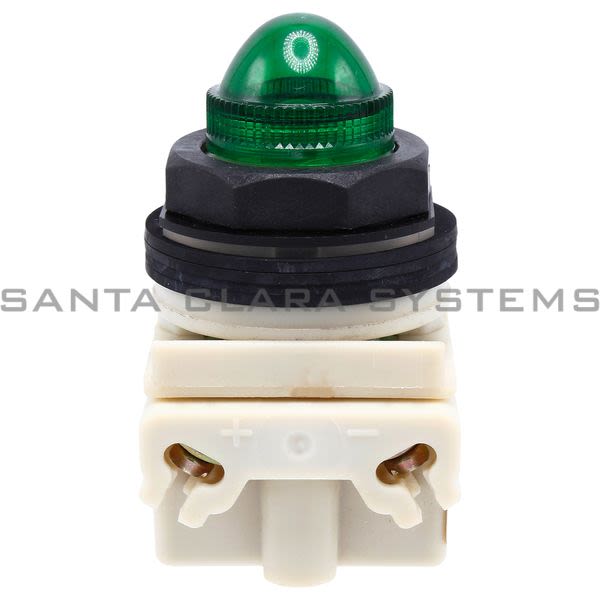

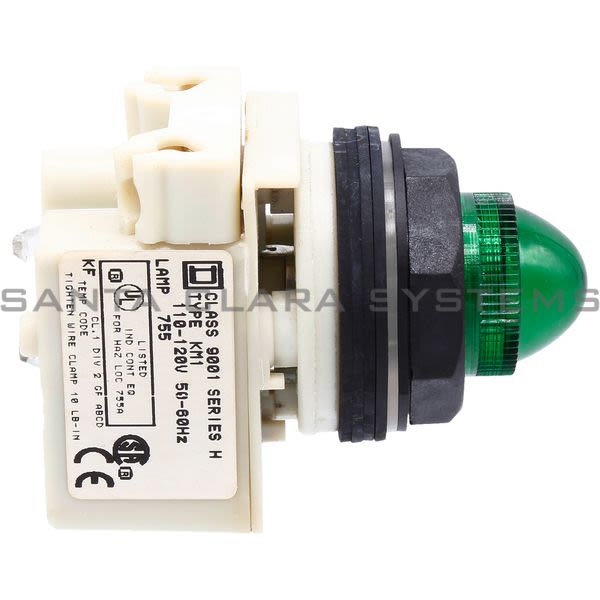

9001-SKP1G9

Square D - Pilot Light

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pilot Light
Bezel material: Plastic
Product or component type: Pilot light
Device short name: 9001SK
Lens type: Domed plastic
Light block supply: Via integral transformer (f = 50/60 Hz) (secondary voltage=6 V)
Mounting diameter: 30 mm
Shape of signaling unit head: Round
Cap/operator or lens colour: Green
Light source: Incandescent
Bulb base: BA 9s
[Us] rated supply voltage: 110...120 V AC 50/60 Hz
Tightening torque: 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head: Cross slotted head
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm) conforming to EN/IEC 60947-1
[Ith] conventional free air thermal current: 10:00 AM
Short-circuit protection: 10 A cartridge fuse conforming to EN/IEC 60947-5-1

[Ui] rated insulation voltage: 250 V (degree of pollution: 2) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to EN/IEC 60947-1
Operating position: Any position
CAD overall width: 54 mm
CAD overall height: 70 mm
CAD overall depth: 42 mm
Product weight: 0.181 kg
Device presentation: Complete product
Electrical shock protection class: Class II conforming to IEC 61140
Protective treatment: TC
IP degree of protection: IP66 conforming to IEC 60529
Vibration resistance: 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Ambient air temperature for operation: -25...70 C
Ambient air temperature for storage: -40...70 C
Product certifications: "NEMA
