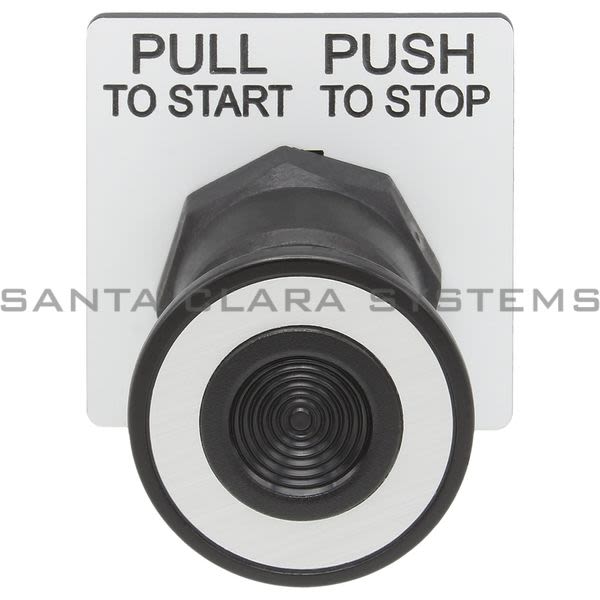

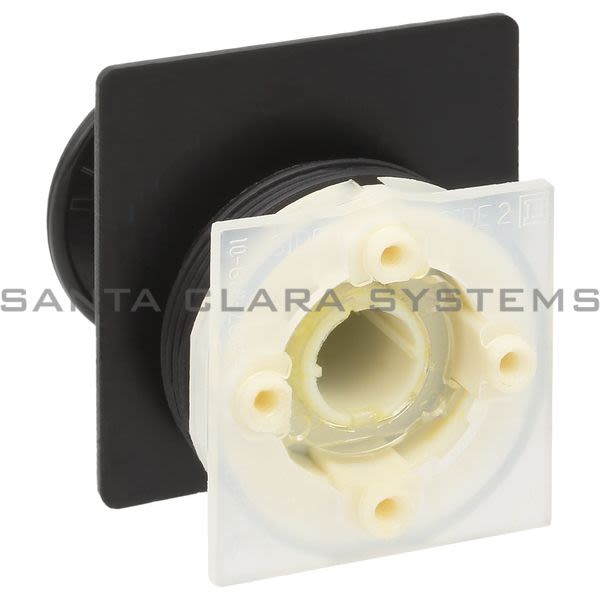

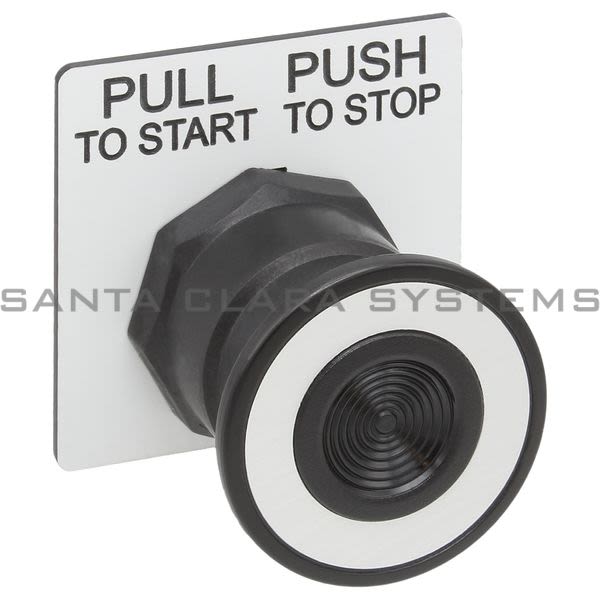

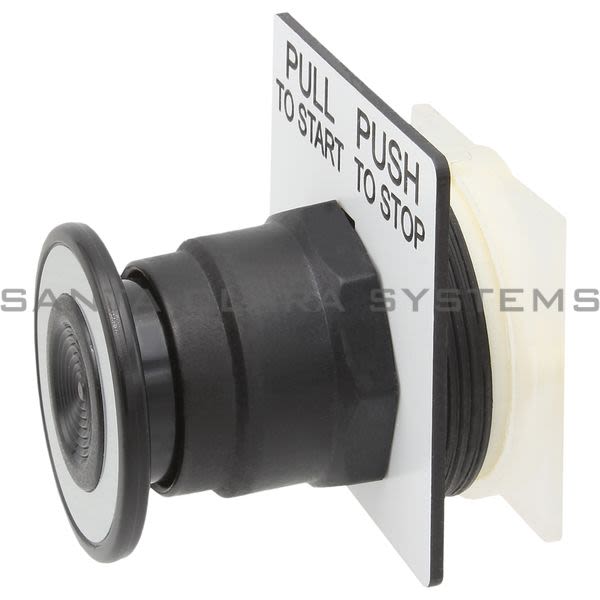

Square D 9001-SKR8B Pushbutton Product Image

9001-SKR8B

Square D - Pushbutton

Product Summary:

Bezel material: Plastic
Product or component type: Non-illuminated mushroom head push-button
Device short name: 9001SK
Mounting diameter: 30 mm
CAD overall width: 46 mm

Current response time:

18 Minutes 51 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton
Bezel material: Plastic
Product or component type: Non-illuminated mushroom head push-button
Device short name: 9001SK
Mounting diameter: 30 mm
CAD overall width: 46 mm
CAD overall height: 45 mm
CAD overall depth: 69 mm
Product weight: 0.095 kg
Operating position: Any position
Shape of signaling unit head: Round

Type of operator: Push-pull
Operator profile: Mushroom � 41 mm, cap/operator or lens colour:black (unmarked marking)
Mechanical durability: 5000000 cycles
Operator additional information: Screw-in with set screw security
Protective treatment: TC
Ambient air temperature for storage: -40...70 �C
Ambient air temperature for operation: -25...70 �C
Electrical shock protection class: Class II conforming to IEC 61140
IP degree of protection: IP66 conforming to IEC 60529
Product certifications: "NEMA
