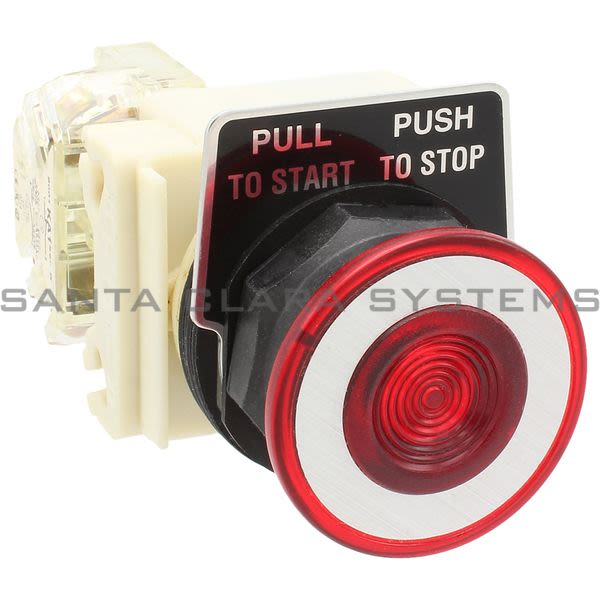

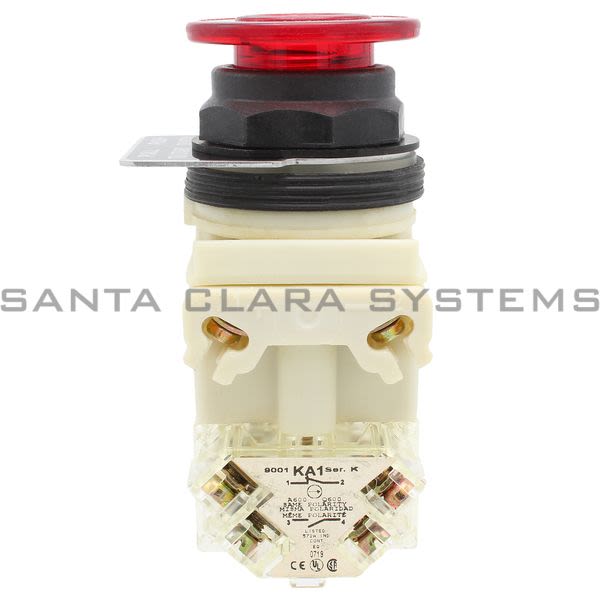

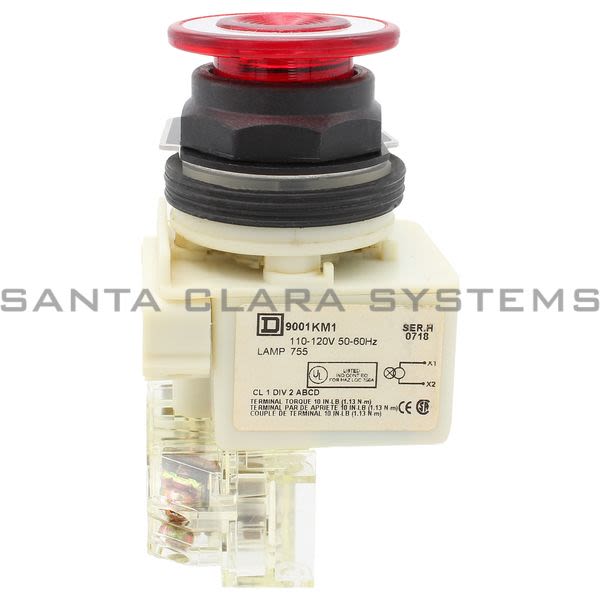

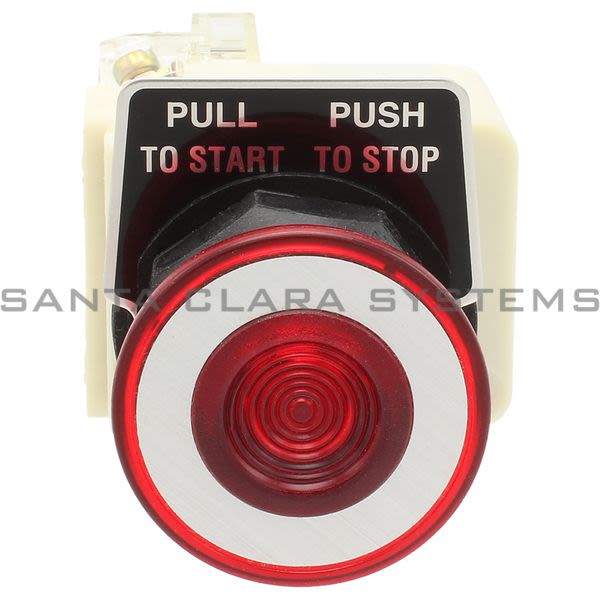

9001-SKR9P1RH13

Square D - Pushbutton

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton
Bezel material: Plastic
Product or component type: Illuminated mushroom head push-button
Device short name: 9001SK
Type of operator: Push-pull
Operator profile: Red mushroom 41 mm
Light block supply: Via integral transformer
Mounting diameter: 30 mm
Product weight: 0.226 kg
Operating position: Any position
Shape of signaling unit head: Round
Contacts type and composition: 1 C/O
Mechanical durability: 5000000 cycles
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted head

Contacts material: Silver alloy contacts
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Light source: Incandescent
Bulb base: BA 9s
[Us] rated supply voltage: 110...120 V AC 50...60 Hz
Operator additional information: Screw-on plastic mushroom
Device presentation: Complete product
Protective treatment: TC
Ambient air temperature for storage: -40...70 C
Ambient air temperature for operation: -25...70 C
Electrical shock protection class: Class II conforming to IEC 60536
IP degree of protection: "IP66 conforming to IEC 60529
