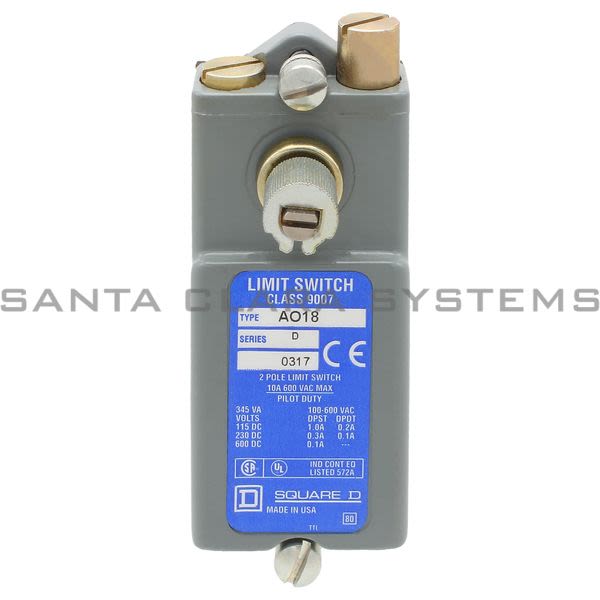

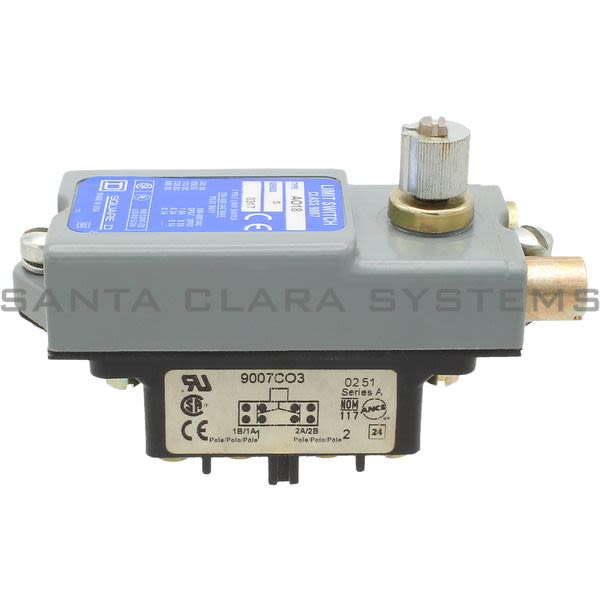

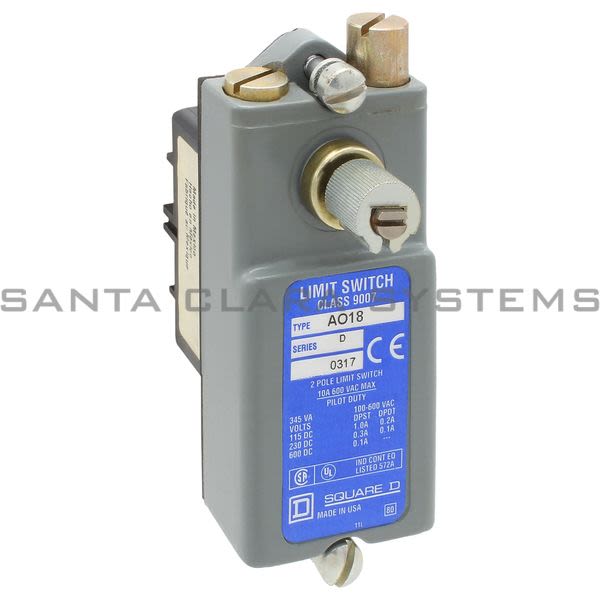

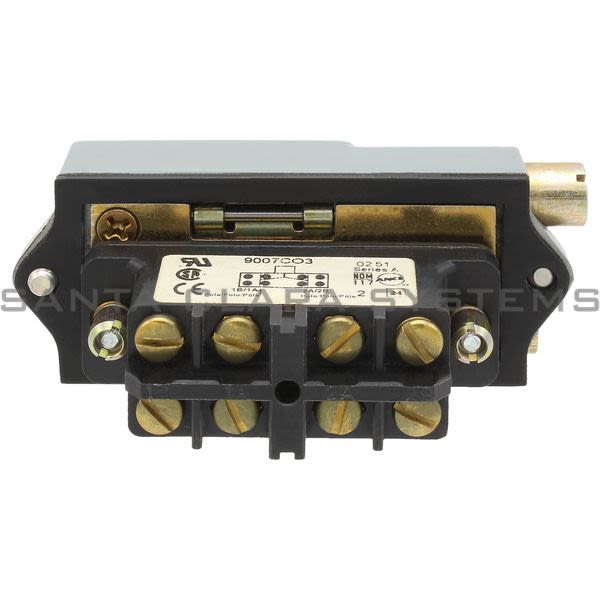

9007-AO18

Square D - Open Position Switch

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Open Position Switch
Material: Metal
Series name: Heavy duty
Product or component type: Limit switch
Device short name: 9007AW
Product specific application: Precision
Body type: Fixed
Mounting mode: Open type
Operator profile: Rotary head
Body material: Cast zinc
Operator material: Cast zinc
Fixing mode: By the body
Movement of operating head: Rotary

Type of operator: Cast zinc spring return without operating lever
Width: 2.38 in
Height: 3.47 in
Depth: 1.38 in
Product weight: 0.1 lb(US)
IP degree of protection: IP20 conforming to IEC 60529
Ambient air temperature for operation: 0...185 �F
Ambient air temperature for storage: 0...185 �F
Protective treatment: Epoxy powder coat
RoHS (date code: YYWW): Will not be compliant
REACh: Reference not containing SVHC above the threshold
Product environmental profile: Available
Product end of life instructions: Need no specific recycling operations

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9007-AO18 . Santa Clara Systems carries 5,608 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
