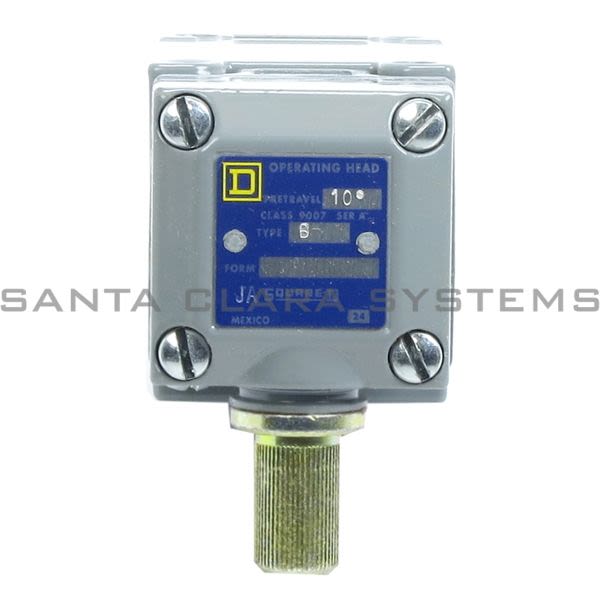

• Square D 9007-C54B2 Limit Switch Product Image

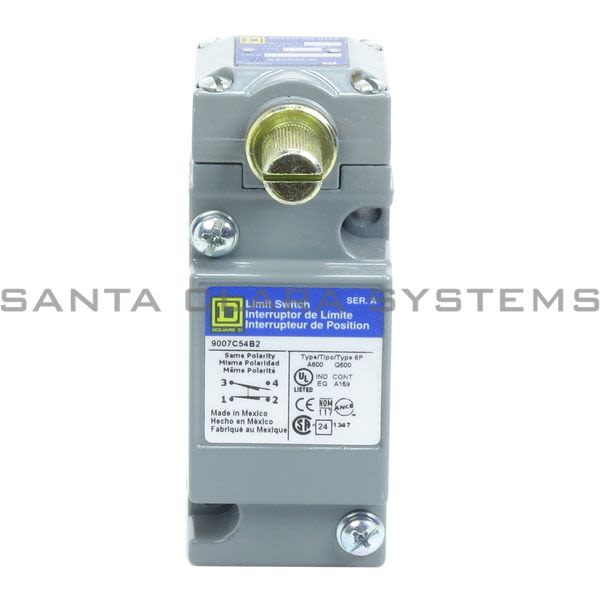

  • Square D 9007-C54B2 Limit Switch Product Image
  • Square D 9007-C54B2 Limit Switch Product Image
  • Square D 9007-C54B2 Barcode

9007-C54B2

Product Summary:

  • Contact Configuration: 1 N.O./1 N.C
  • head type: Rotary head
  • Actuator: Lever Arm (ordered separately)
  • material: Metal
  • Operating Torque/Force: 4 Inch-Pounds
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Limit Switch
  • Contact Configuration: 1 N.O./1 N.C
  • head type: Rotary head
  • Actuator: Lever Arm (ordered separately)
  • material: Metal
  • Operating Torque/Force: 4 Inch-Pounds
  • Actuation: CW and CCW
  • Actuator Action: Spring Return - Standard Pretravel
  • Total Travel: 90 Degrees
  • Differential Travel: 4 Degrees
  • Ampere Rating: 10A
  • series name: Heavy duty
  • product or component type: Limit switch
  • product specific application: Standard box
  • device short name: 9007C
  • body type: Plug-in
  • fixing mode: By the body
  • movement of operating head: Rotary
  • type of operator: Zinc spring return without operating lever (-) 9007C lever
  • body material: Zinc
  • head material: Zinc
  • function available: -
  • width: 1.55 in
  • height: 4.02 in
  • depth: 2.5 in
  • product weight: 1.25 lb(US)
  • shock resistance: 60 gn (duration = 9 ms) conforming to IEC 60068-2-27
  • vibration resistance: 25 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
  • IP degree of protection: IP67 conforming to IEC 60529
  • electrical shock protection class: Class 0 conforming to IEC 61140
  • ambient air temperature for operation: -20...185 F for standard environment
  • ambient air temperature for storage: -20...185 F
  • environmental characteristic: Standard environment
  • protective treatment: Epoxy powder coat
  • Sustainable offer status: Green Premium product
  • RoHS (date code: YYWW): "Compliant - since 1150 - Schneider Electric declaration of conformity
  • switch actuation: "From left and right
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9007-C54B2 . Santa Clara Systems carries 4,817 items from Square D.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
