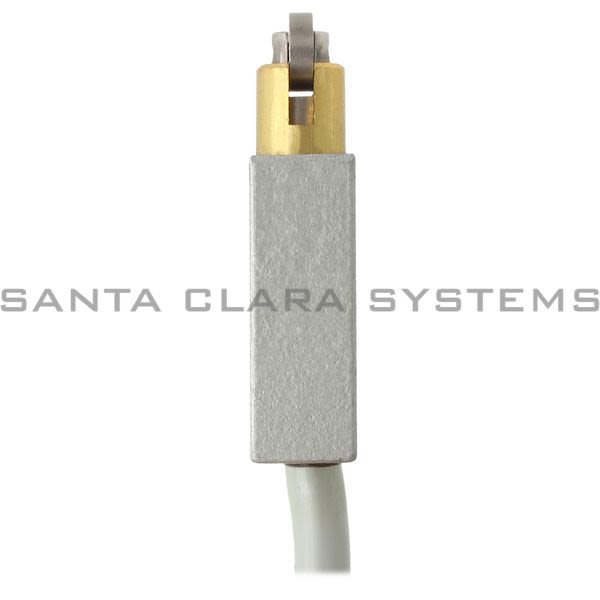

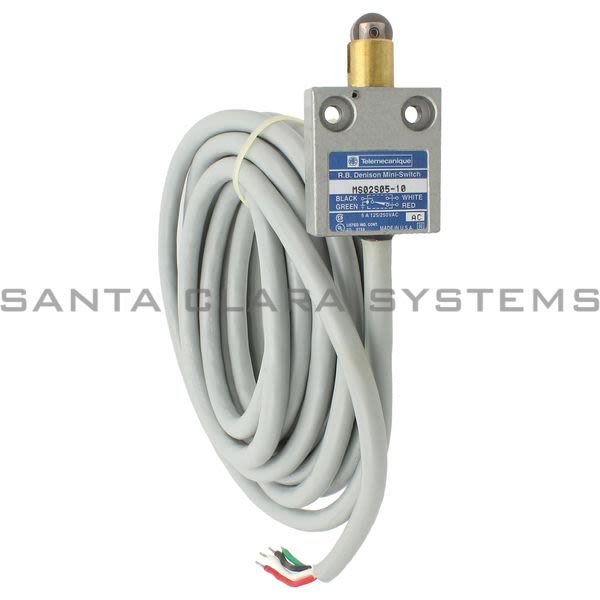

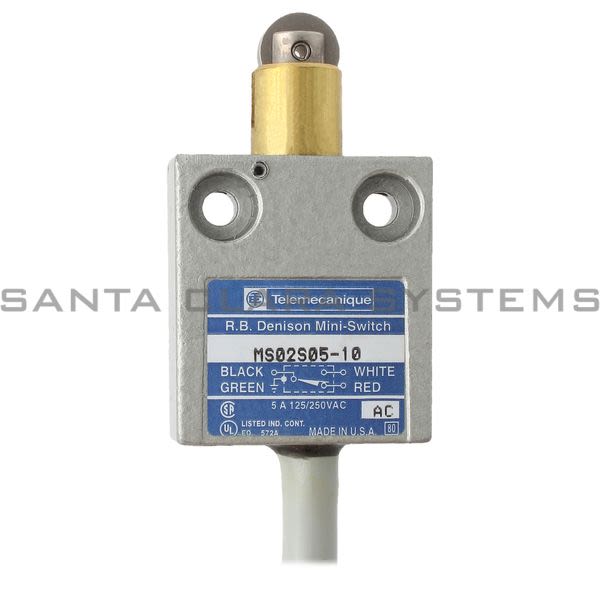

9007-MS02S0510

Square D - Limiit Switch

Current response time:

14 Minutes 40 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Limiit Switch
Number of poles: 1
Head type: Plunger head
Electrical connection: Pre-wired cable bottom
Material: Metal
Series name: Miniature potted
Product or component type: Limit switch
Device short name: 9007MS/ML
Sensor design: Miniature
Body type: Fixed
Body material: Cast zinc
Fixing mode: By the body

Movement of operating head: Linear
Type of operator: Spring return parallel roller plunger steel (-)
Type of approach: Lateral approach 2 directions
Switch actuation: By 30� cam
Contacts type and composition: NC-NO
Switch function: SPDT
Contact form: Form C
Contacts material: Silver contacts
Contact operation: Snap action
Positive opening: Without

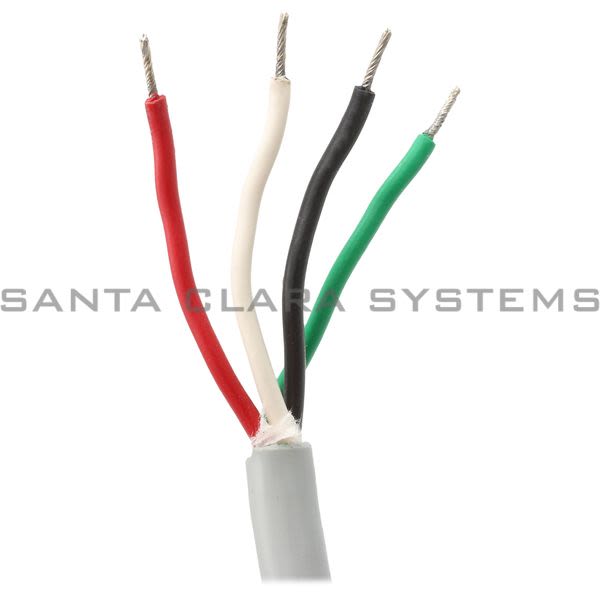

Type of cable: SJTO cable (AWG 18), 18 ft, grey
terminals description ISO n�1: "(green-yellow)gnd

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9007-MS02S0510 . Santa Clara Systems carries 5,608 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
