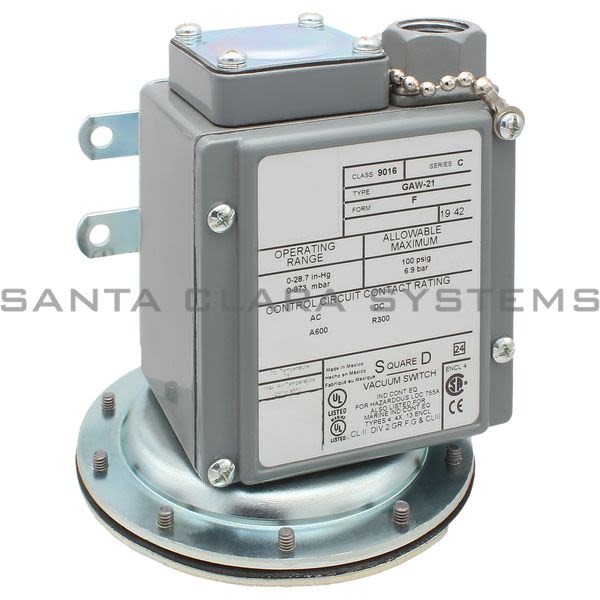

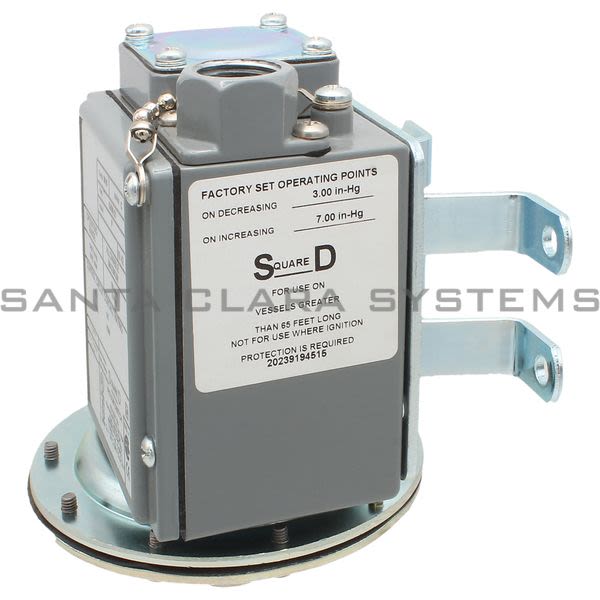

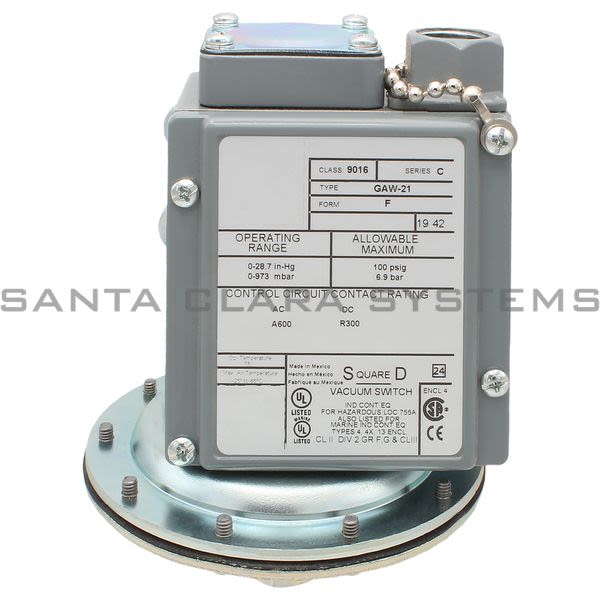

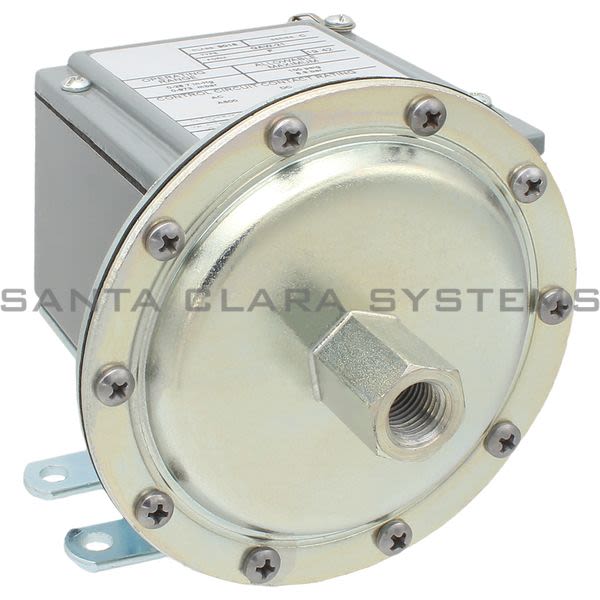

Square D 9016-GAW21 Electromechanical Vacuum Switch Diaphragm Product Image

9016-GAW21

Square D - Electromechanical Vacuum Switch Diaphragm

Current response time:

19 Minutes 43 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Electromechanical Vacuum Switch Diaphragm
Electrical connection: Screw-clamp terminals AWG 22...AWG 12
Product or component type: Electromechanical vacuum switch
Device application: Sensitive control application
Device short name: 9016G
Electrical circuit type: Control circuit
Factory modification: -
Vacuum switch type of operation: Regulation between two thresholds
Scale type: Adjustable differential
Value of setting: -
Vacuum sensor size: 28.3 inHg

Range on decreasing vacuum: 0...28.3 inHg
Approx differential at minimum range: 1...9 inHg
Approx adjustable differential at mid range: 1.7...7.4 inHg
Maximum pressure: 100 psi
Maximum permissible pressure - per cycle: 100 psi
Local display: Without
Fluid connection type: 0.25 inch 18 NPTF UL 508
Cable entry: 0.5 inch NPT conduit entrance
Terminal block type: 8 screw terminals
Pressure actuator: Diaphragm nitrile (Buna-N)
Controlled fluid: "Air -40...250 �F
