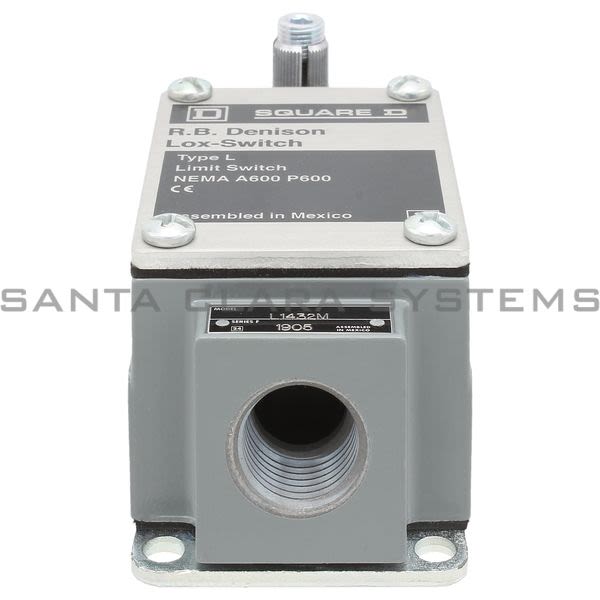

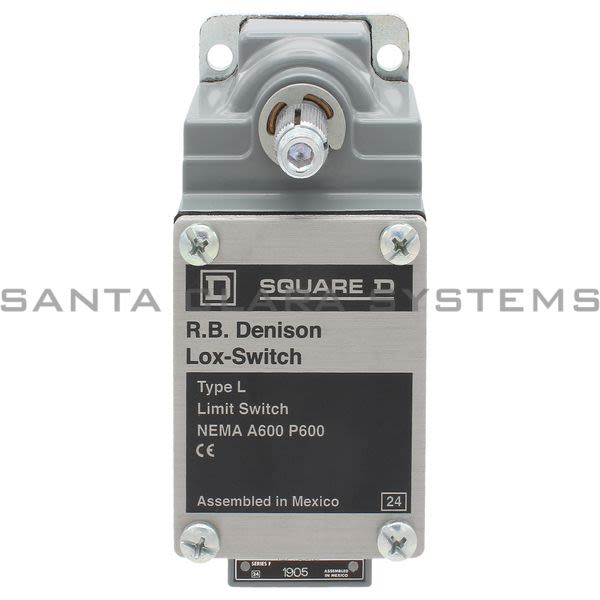

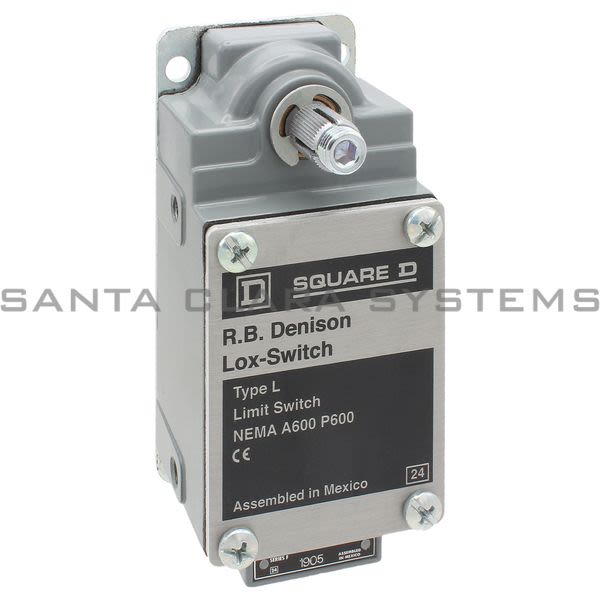

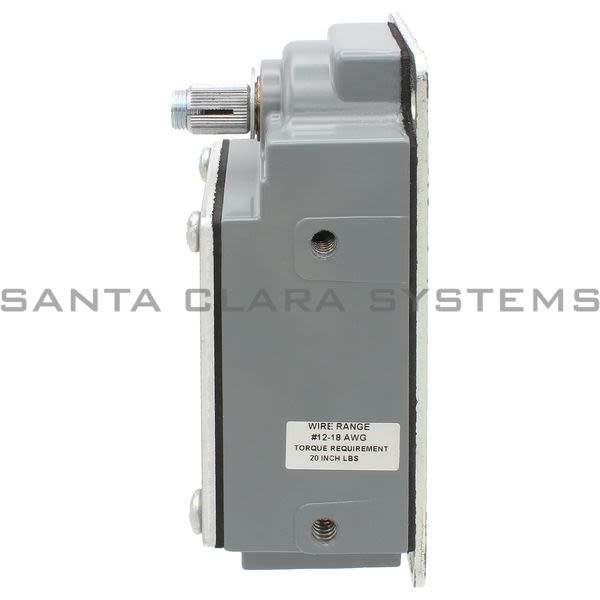

Square D L143-2M Limit Switch Product Image

L143-2M

Square D - Limit Switch

Product Summary:

Head type: Rotary head
Series name: Severe duty mill
Product or component type: Limit switch
Product specific application: Cable pull switch
Device short name: L140

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Limit Switch
Head type: Rotary head
Series name: Severe duty mill
Product or component type: Limit switch
Product specific application: Cable pull switch
Device short name: L140
Body type: Fixed
Base plate style: Style 2
Body material: Cast aluminium
Fixing mode: By the body
Type of operator: Spring return without operating lever
Contact operation: Snap action

Positive opening: Without
Minimum torque for tripping: 208 ozf.in
Minimum torque for resetting: 112 ozf.in
Tripping angle: 17 � - for cable operated stop switch
Maximum displacement angle: 80 �
Repeat accuracy: +/- 0.03 %
Short-circuit protection: 20 A Bussmann class CC KTK-R-20 fuse with non-time delay
Width: 2.25 in
Height: 4.95 in
Depth: 3.41 in
Product weight: 1.5 lb(US)
