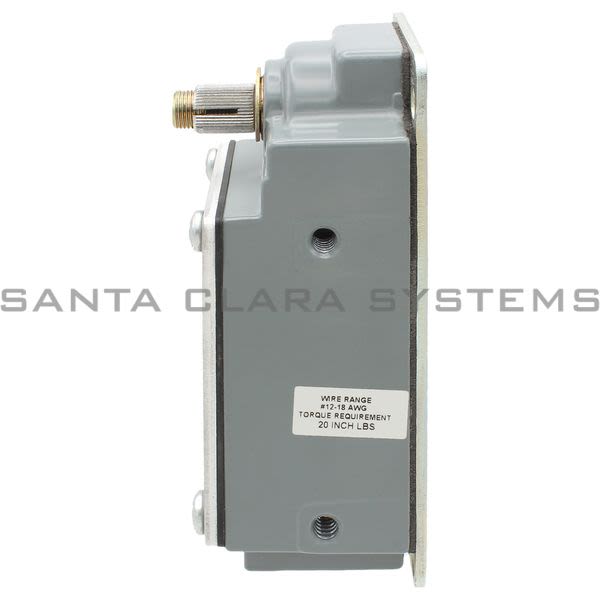

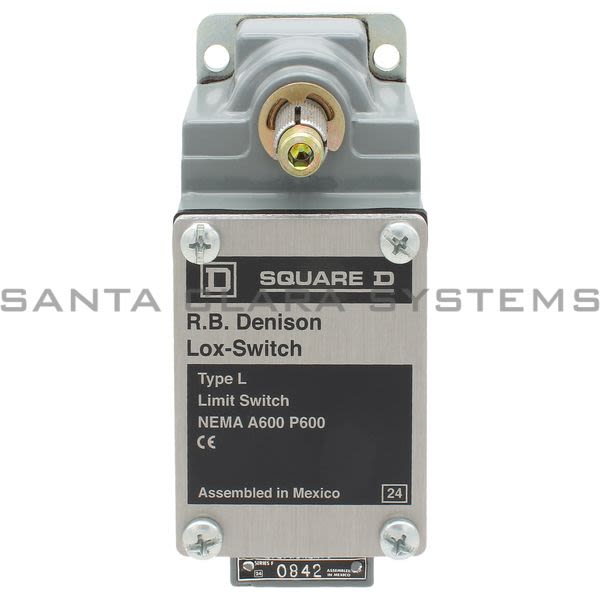

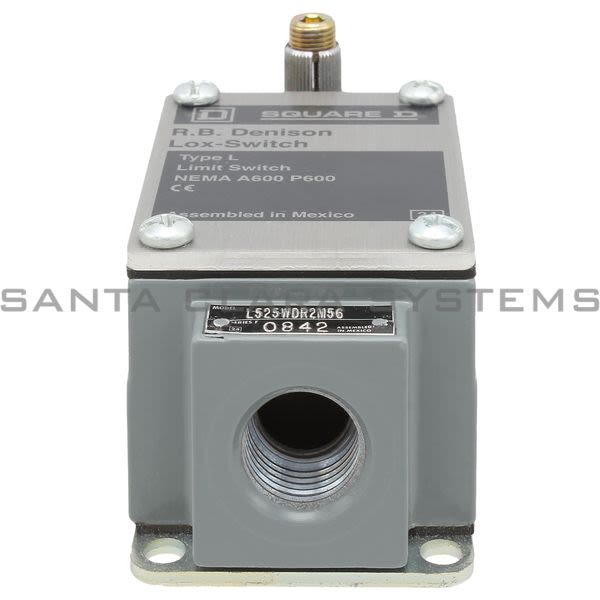

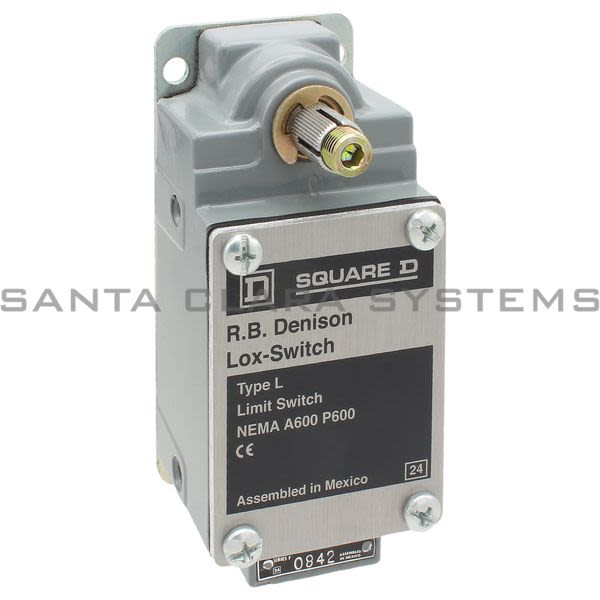

Square D L525WDR2M56 Limit Switch Product Image

L525WDR2M56

Square D - Limit Switch

Product Summary:

Number of poles: 2
Head type: Rotary head
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12)
Series name: Severe duty mill
Product or component type: Limit switch

Current response time:

12 Minutes 26 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Limit Switch
Number of poles: 2
Head type: Rotary head
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12)
Series name: Severe duty mill
Product or component type: Limit switch
Product specific application: Belt conveyor switch
Device short name: L525
Body type: Fixed
Base plate style: Style 2
Body material: Cast aluminium
Fixing mode: By the body

Type of operator: Spring return without operating lever
Contact sequence number: 56
Function available: 2 stages sequential
Type of approach: Lateral approach
Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Tripping angle: 12 � - for conveyor belt monitoring and stopping
Maximum displacement angle: 80 �
Short-circuit protection: 20 A Bussmann class CC KTK-R-20 fuse with non-time delay
Width: 2.25 in
Height: 4.95 in
Depth: 2.03 in
Product weight: 1.5 lb(US)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on L525WDR2M56 . Santa Clara Systems carries 5,812 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
