MG-24143

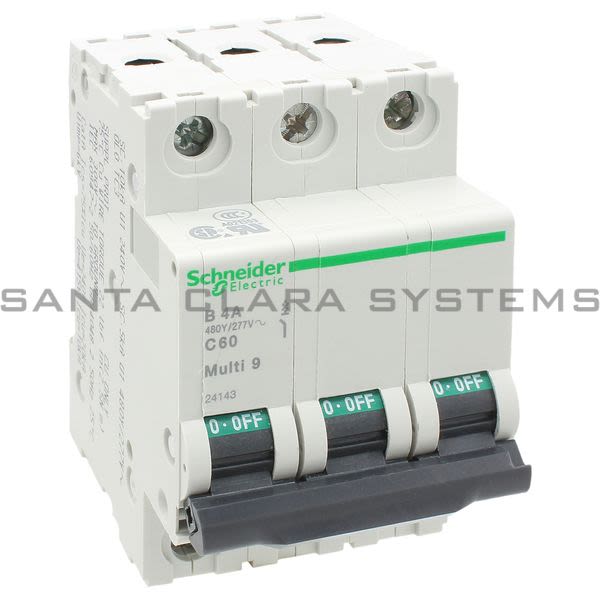

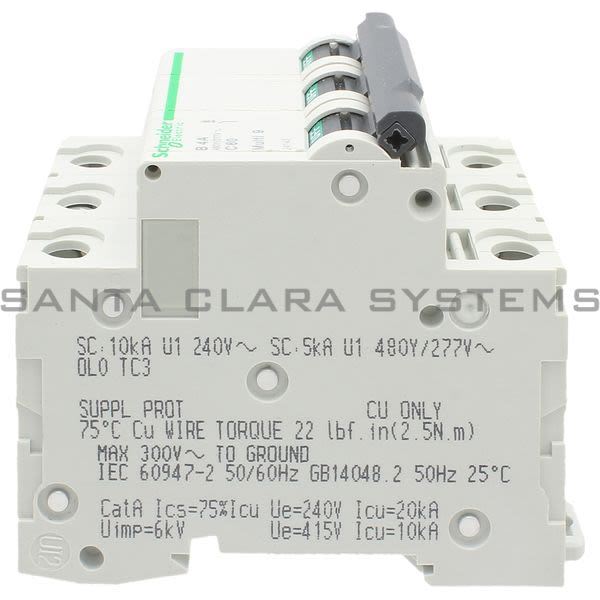

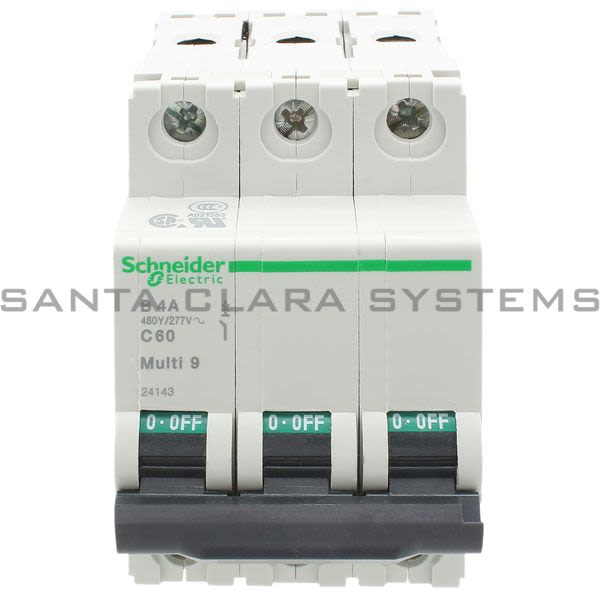

Square D - Circuit Breaker | 24143

Product Summary:

Control type: Toggle
Range: Multi 9
Product name: Multi 9 C60
Device short name: C60 UL1077
Device application: Distribution

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Circuit Breaker | 24143
Control type: Toggle
Range: Multi 9
Product name: Multi 9 C60
Device short name: C60 UL1077
Device application: Distribution
Number of protected poles: 3
[In] rated current: 4 A at 25 �C
Network type: AC
Trip unit technology: Thermal-magnetic
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Network frequency: 50/60 Hz
Curve code: B

Magnetic tripping limit: 4 x In +/- 20% AC
Limitation class: 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage: 500 V AC conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
Contact position indicator: Yes
Local signalling: ON/OFF indication
Mounting support: DIN rail
9 mm pitches: 6
Height: 81 mm
Width: 54 mm
Depth: 73 mm
Product weight: 0.33 kg
Colour: Grey
