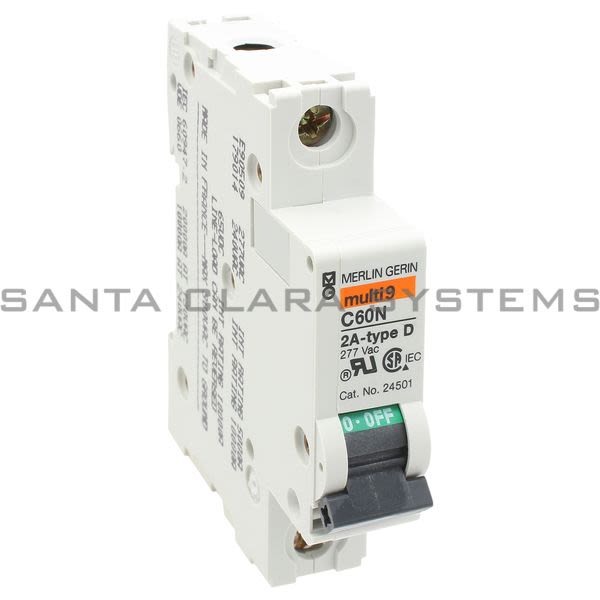

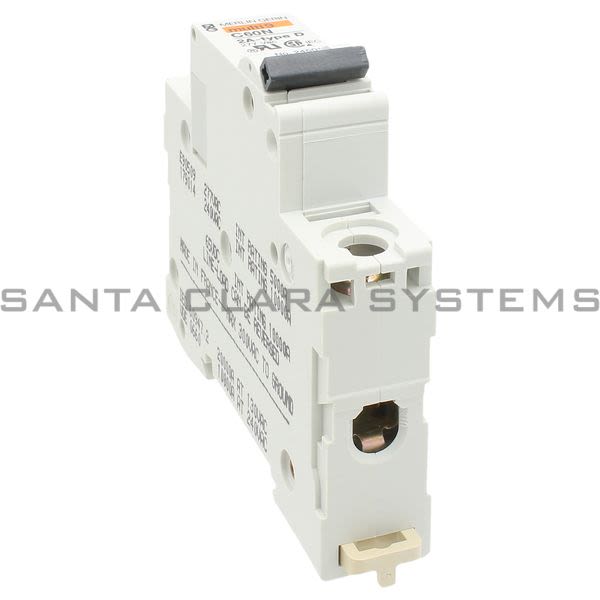

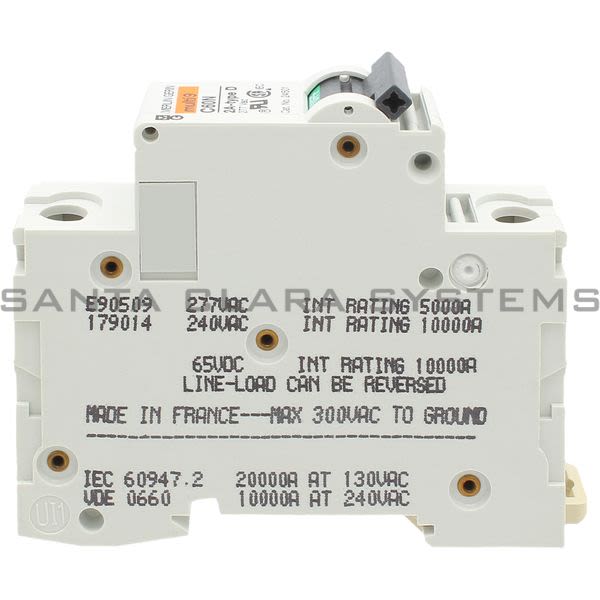

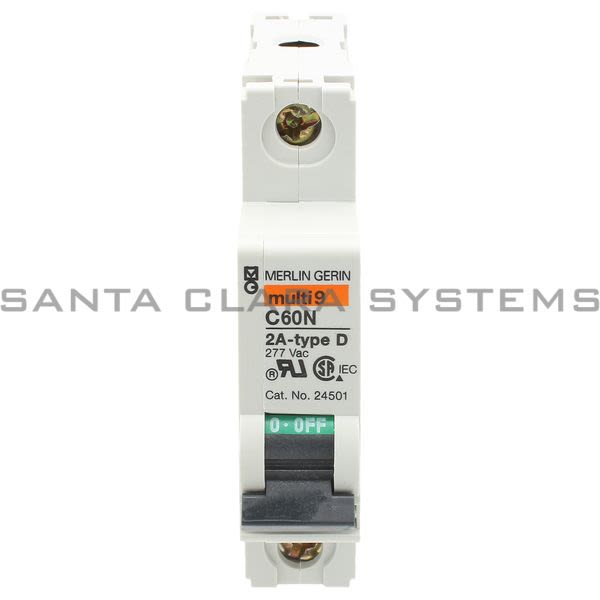

- Description: Supplementary Protector
- Range: Multi 9
- Product name: Multi 9 C60
- Device short name: C60 UL1077
- Device application: Distribution
- Number of protected poles: 1
- [In] rated current: 2 A at 25 C
- Height: 81 mm
- Width: 18 mm
- Depth: 73 mm
- Product weight: 0.11 kg
- Colour: Grey
- Mechanical durability: 20000 cycles
- Electrical durability: 10000 cycles
- Provision for padlocking: Padlockable
- Connections - terminals: Tunnel type terminal, top or bottom rigid wire(s) 2.5...25 mm max (AWG 14...AWG 4)
- Wire stripping length: 14 mm top or bottom
- Tightening torque: 2.5 N.m top or bottom
- Pollution degree: 3 conforming to EN/IEC 60947-2
- Overvoltage category: IV
- Tropicalisation: 2 conforming to IEC 60068-1
- Relative humidity: 95 % 55 C
- Operating altitude: 2000 m
- Ambient air temperature for operation: -30...70 C
- Ambient air temperature for storage: -40...80 C
- Product environmental profile: Available
- Product end of life instructions: Need no specific recycling operations
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MG-24501 . Santa Clara Systems carries 5,463 items from Square D.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
