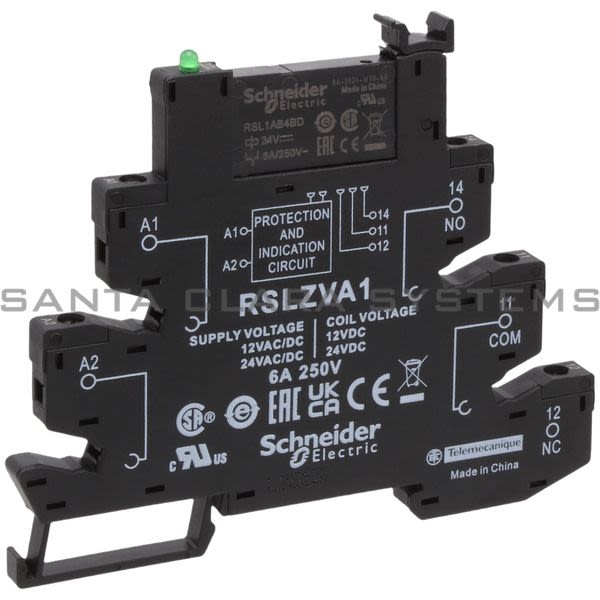

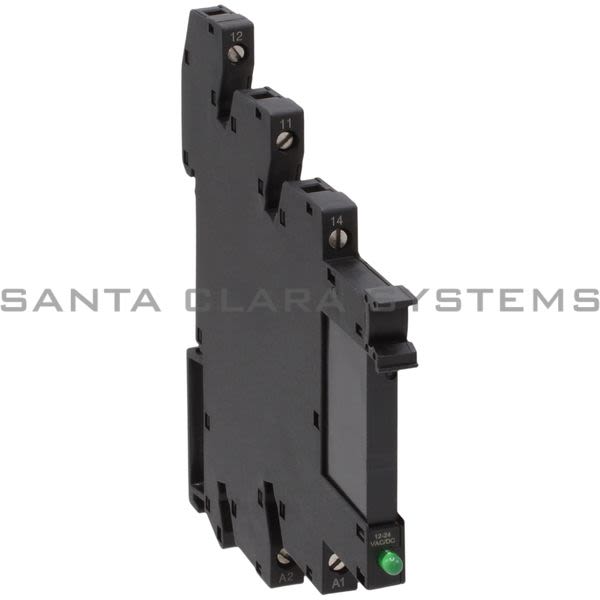

RSL1PVBU

Square D - Electromechanical Relay

Product Summary:

Series name: Interface relay
Product or component type: Plug-in relay
Device short name: RSL
Contacts type and composition: 1 C/O
Contact operation: Standard

Current response time:

8 Minutes 22 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Electromechanical Relay
Series name: Interface relay
Product or component type: Plug-in relay
Device short name: RSL
Contacts type and composition: 1 C/O
Contact operation: Standard
[Uc] control circuit voltage: 24 V DC
[Ithe] conventional enclosed thermal current: 6 A at -40...55 �C
status LED: With
Shape of pin: Flat (PCB type)
Fixing mode: Plastic compression spring

Average resistance: 3390 Ohm (DC) at 23 �C +/- 10 %
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC
Contacts material: Silver alloy (AgSnO2)
[Ie] rated operational current: 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL
Minimum switching current: 100 mA
Maximum switching voltage: 277 V
Switching voltage: 12 V
Mechanical durability: 10000000 cycles
Electrical durability: 60000 cycles for resistive load (6 A at 250 V, AC-1)
Operating time: "5 ms reset
