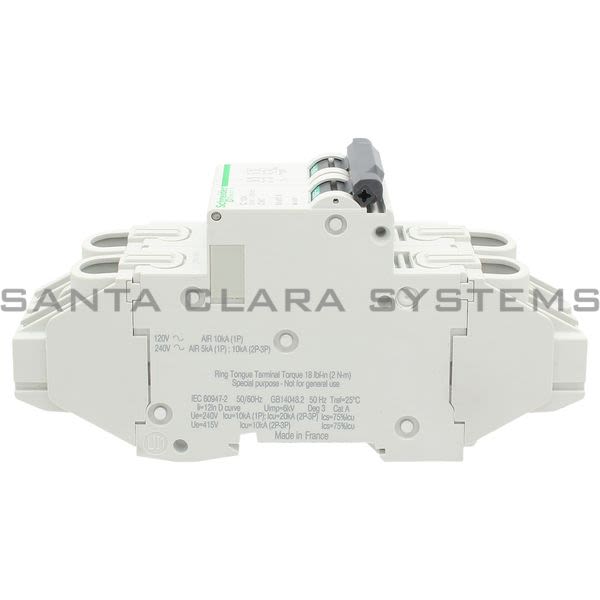

• Telemecanique 60246F Multi 9 - C60 UL489 - MCB - 2P - 15 A - C Curve - 240 V - 10 kA - finger safe Product Image

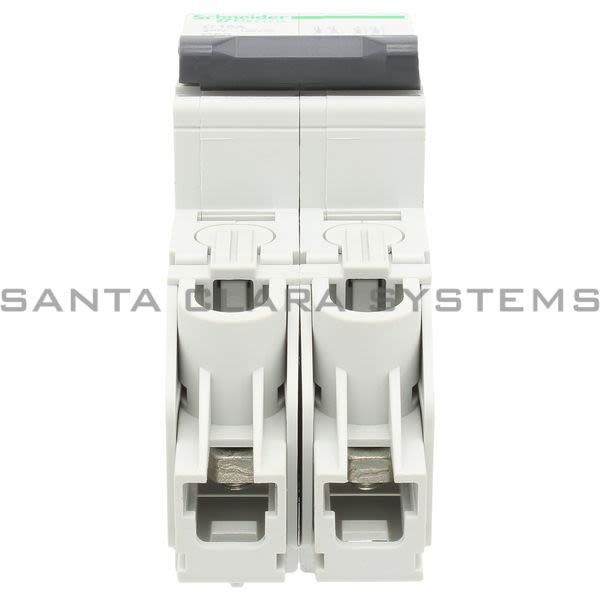

  • Telemecanique 60246F Multi 9 - C60 UL489 - MCB - 2P - 15 A - C Curve - 240 V - 10 kA - finger safe Product Image

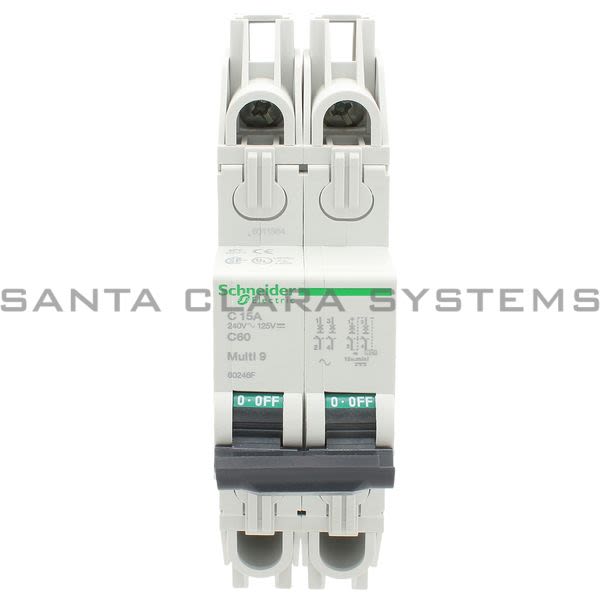

  • Telemecanique 60246F Multi 9 - C60 UL489 - MCB - 2P - 15 A - C Curve - 240 V - 10 kA - finger safe Product Image

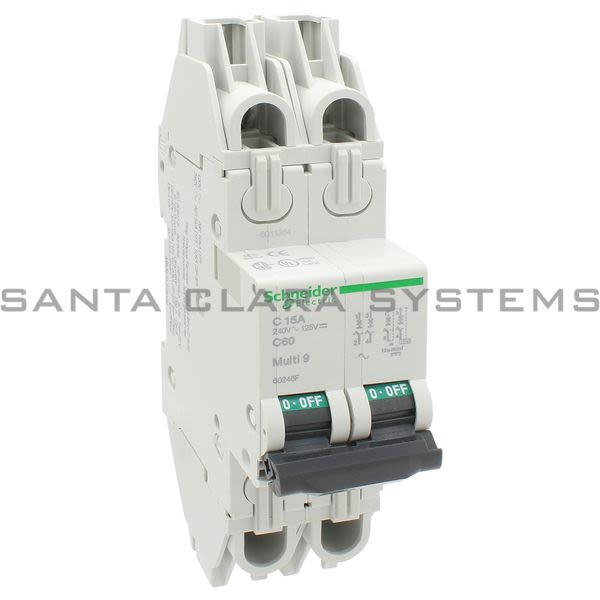

  • Telemecanique 60246F Multi 9 - C60 UL489 - MCB - 2P - 15 A - C Curve - 240 V - 10 kA - finger safe Product Image
  • Telemecanique 60246F Barcode

60246F

Product Summary:

  • Product weight: 0.49 lb(US) (0.22 kg)
  • Standards: UL 489, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2
  • Device short name: C60 UL489
  • Width: 1.42 in (36 mm)
  • Height: 4.84 in (123 mm)
Get a Quote

Current response time:

18 Minutes 34 Seconds
  • Description: Multi 9 - C60 UL489 - MCB - 2P - 15 A - C Curve - 240 V - 10 kA - finger safe
  • Product weight: 0.49 lb(US) (0.22 kg)
  • IP degree of protection: IP40 modular enclosure conforming to IEC 60529, IP10 conforming to IEC 60529
  • Standards: UL 489, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2
  • Device short name: C60 UL489
  • Width: 1.42 in (36 mm)
  • Height: 4.84 in (123 mm)
  • Depth: 2.87 in (73 mm)
  • [Ui] rated insulation voltage: 500 V AC conforming to EN/IEC 60947-2
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
  • Operating altitude: 6561.68 ft. (2000 m)
  • Mechanical durability: 20000 cycles
  • Tightening torque: 17.7 lbf.in (2 N.m) top or bottom
  • Connections - terminals: Ring terminal, top or bottom
  • Range: Multi 9
  • Mounting support: DIN rail
  • System Voltage: 125 V DC, 240 V AC, 440 V AC, 415 V AC
  • Product name: Multi 9 C60
  • Electrical durability: 10000 cycles
  • Poles description: 2P
  • Overvoltage category: IV
  • Relative humidity: 95 % 131 F (55 C)
  • Control type: Toggle
  • Breaking capacity: Icu 6 kA at 440 V AC conforming to EN/IEC 60947-2, Icu 10 kA at 415 V AC conforming to EN/IEC 60947-2, Icu 20 kA at 240 V AC conforming to EN/IEC 60947-2, Icu 6 kA at 440 V AC conforming to GB 14048.2, Icu 10 kA at 415 V AC conforming to GB 14048.2, Icu 20 kA at 240 V AC conforming to GB 14048.2, AIR 10 kA at 240 V AC conforming to UL 489, AIR 10 kA at 125 V DC conforming to UL 489, Icu 10 kA at 125 V DC conforming to EN/IEC 60947-2, Icu 10 kA at 125 V DC conforming to GB 14048.2, AIR 10 kA at 240 V AC conforming to CSA C22.2 No 5.2, AIR 10 kA at 125 V DC conforming to CSA C22.2 No 5.2
  • Color: Grey
  • Number of protected poles: 2
  • [In] rated current: 15 A at 77 F (25 C)
  • Magnetic tripping limit: 8.5 x In +/- 20% AC, 12 x In +/- 20% DC
  • Product or component type: Miniature circuit-breaker
  • Mounting mode: Clip-on
  • Product certifications: UL, CSA, CCC, IEC
  • Pollution degree: 3 conforming to EN/IEC 60947-2
  • Device application: Distribution
  • Network frequency: 50/60 Hz
  • Curve code: C
  • Tropicalisation: 2 conforming to IEC 60068-1
  • Network type: DC, AC
  • Limitation class: 3 conforming to EN/IEC 60947-2
  • Trip unit technology: Thermal-magnetic
  • Ambient air temperature for operation: -22...158 F (-30...70 C)
  • Suitability for isolation: Yes conforming to EN/IEC 60947-2
  • Ambient air temperature for storage: -40...176 F (-40...80 C)
  • Contact position indicator: Yes
  • Local signaling: ON/OFF indication
  • 9 mm pitches: 4
  • Provision for padlocking: Padlockable
