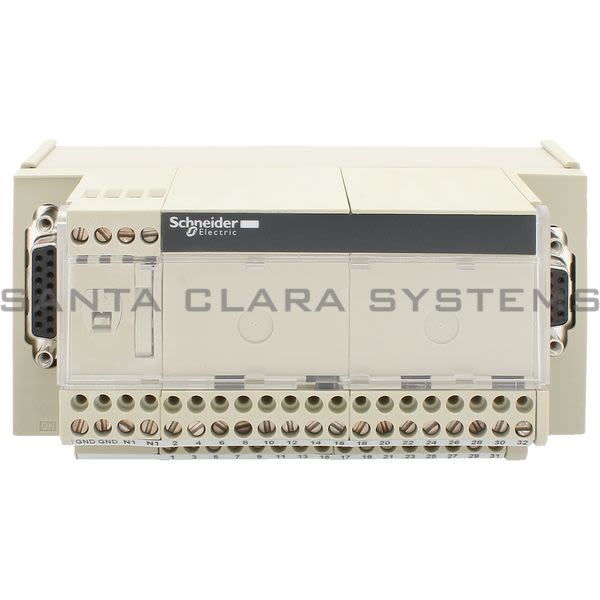

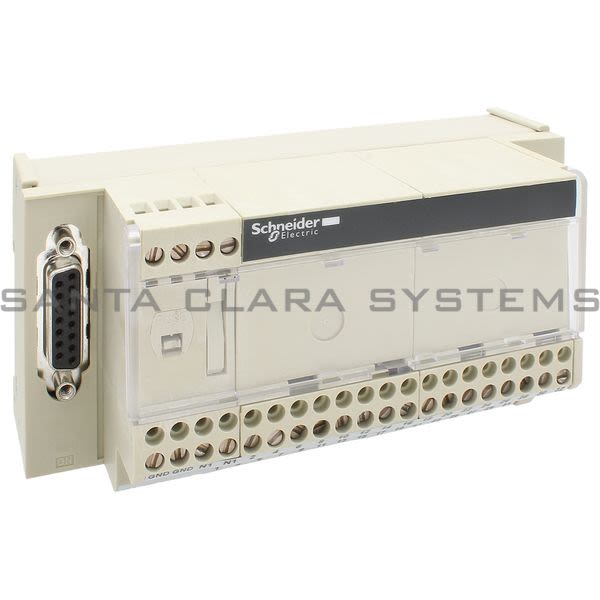

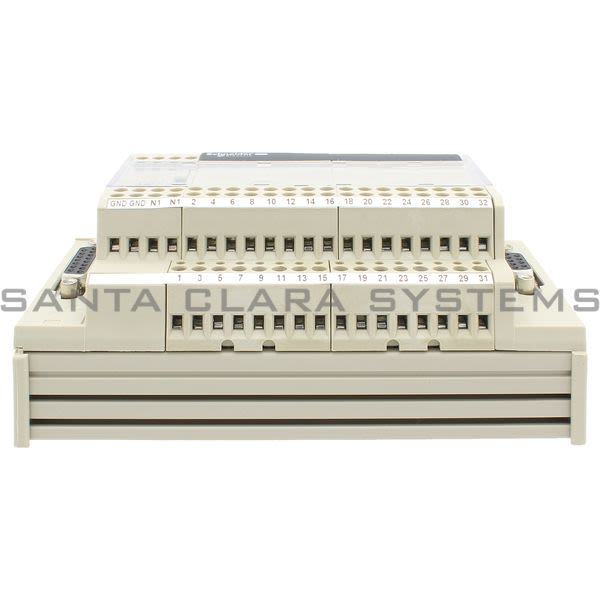

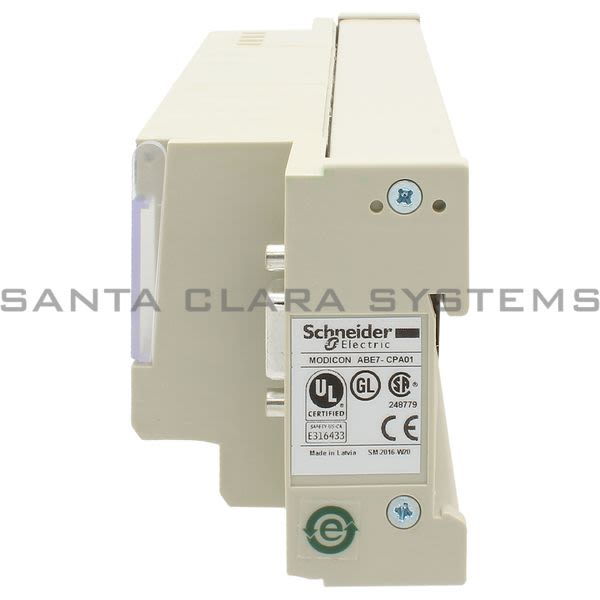

ABE7CPA01

Telemecanique - connection sub-base ABE7 - for counter and analog channels

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: connection sub-base ABE7 - for counter and analog channels
Product weight: 0.66 lb(US) (0.3 kg)
Range of product: Advantys Telefast ABE7
IP degree of protection: IP20 conforming to IEC 60529
[Ui] rated insulation voltage: 2000 V between terminals/mounting rails
Tightening torque: 5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)
Connections - terminals: Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16 flexible with cable endScrew type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12 solidScrew type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14 flexible without cable endScrew type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20 flexible with cable endScrew type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14 solid
[Uc] control circuit voltage: 24 V DC
Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
Vibration resistance: 2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
Function of module: Counting and analogue , compatible with TSX MicroCounting, axis control, position control , compatible with Premium
Product certifications: DNVBVCSAULGLLROS (Lloyds register of shipping)
Product or component type: Connection sub-base for counter and analogue channels

Product compatibility: TSX3722 compatible with TSX MicroTSXCAY21 compatible with PremiumTSXCAY41 compatible with PremiumTSXCTY2A compatible with PremiumTSXCTY4A compatible with PremiumTSXCTZ1A compatible with TSX MicroTSXCTZ2A compatible with TSX Micro
Number of channels: 821
Resistance to incandescent wire: 1382 °F (750 °C) conforming to IEC 60695-2-11
connection to PLC: SUB-D 15
Fixing mode: By clips on 35 mm symmetrical DIN railBy screws on solid plate with fixing kit
Resistance to electrostatic discharge: 4 kV (contact) conforming to IEC 61000-4-2 level 38 kV (air) conforming to IEC 61000-4-2 level 3
Installation category: II conforming to IEC 60664-1
Resistance to radiated fields: 9.14 V/yd (10 V/m) (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3
Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
Ambient air temperature for operation: 32...140 °F (0...60 °C)
Ambient air temperature for storage: -40...176 °F (-40...80 °C) conforming to IEC 61131-2
Pollution degree: 2 conforming to IEC 60664-1
